9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels

Brand Name: BH
Model Number: 0404
MOQ: 1
Price: $7350
Payment Terms: T/T
Supply Ability: 3000Units/Year
Detail Information
Product Description
Detail Information
Place of Origin:
Qingdao,China
Certification:
CE
Name:
Edge Banding Machine
Size:
5000*750*1500mm
Working Voltage:
380V/50Hz
Total Power:
13.5kw
Conveyor Speed:
18~24m/min
Working Pressure:
0.7MPa
Thickness:
0.3~3mm
Minimum Length Of Board:
70mm
Packaging Details:
5100*850*1600mm
Highlight:

Auto Edge Banding Machine 13.5kw

,

Wood Auto Edge Banding Machine

Product Description
Auto 9 Functions Edge Banding Machine with 13.5kw Power for Wood Based Panels
Product Overview
High-performance wood panel edge banding machine with 9 automatic functions and pneumatic adjustment for precise operation.
Key Features
  • Encoder: Controls all machine actions with sensitive response and low failure rate
  • Intelligent Control: PLC microcomputer control with time control principle for improved stability
  • Pre-milling: Double milling cutters for edge preparation of textured or deburred sheets
  • Glue Application: Heated glue tank with suction structure for even adhesive distribution
  • Precision Cutting: Single guide rail end cutting and high-speed oblique cutting motor
  • Customizable: Support for custom colors, logos, and configurations
Technical Specifications
Parameter Value Parameter Value
Outline dimension 5000*750*1500mm Conveyor speed 18~24m/min
Machine weight 1500KG Minimum width of board 50mm
Working voltage 380V/50Hz Minimum length of board 70mm
Total power 13.5KW Working pressure 0.7Mpa
Plate thickness 10~60mm Edge banding thickness 0.3~3mm
Operation Process
The 0404 edge banding machine performs all operations in one pass: gluing, pressing, rough trimming, end trimming, corner trimming, vacuuming, secondary scraping, and buffing.
After-Sales Service
Global offline service network across Europe, Latin America, Asia, and Africa with long warranty period and free complimentary accessories.



Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao City, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable production plan.
Q4: Is the machine easy to operate for first-time users?
A4: Yes, we provide guide videos and English instructions, plus free professional support.
Q5: What's your MOQ and delivery terms?
A5: MOQ is 1 set. We ship directly to your country port with competitive freight rates.
Q6: How is your after-sales service?
A6: 24/7 online support with optional overseas installation service.
Q7: What if my machine needs repair?
A7: We provide free online training and warranty repairs for major issues.

Order Fulfillment and Shipping

The edge banding machine is typically shipped within 15-30 business days after order confirmation. Delivery times may vary depending on the shipping destination. We will provide tracking information for your convenience, and all machines are packed carefully to minimize the risk of damage during transport.

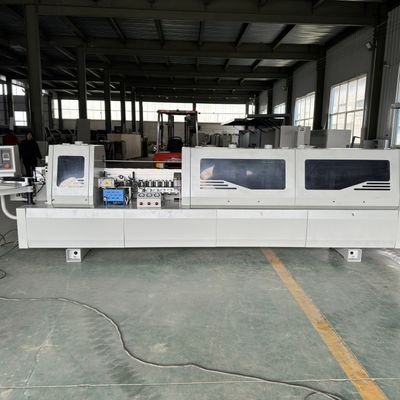

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels 0

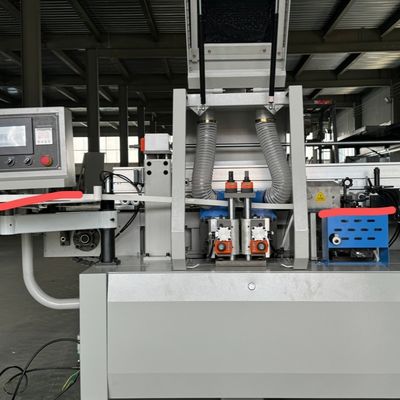

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels 1
