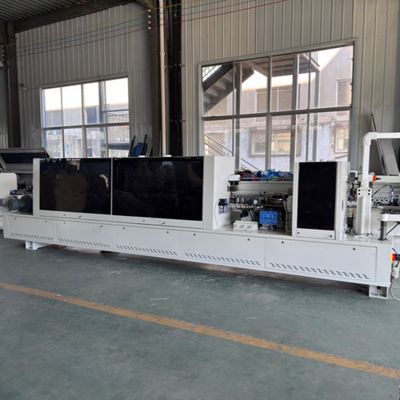

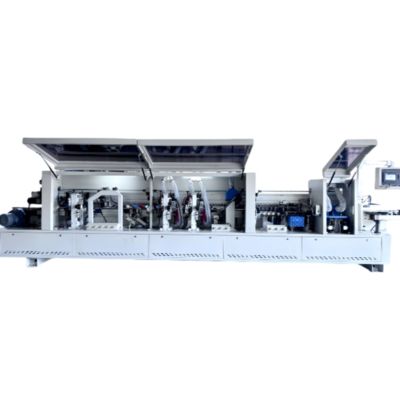

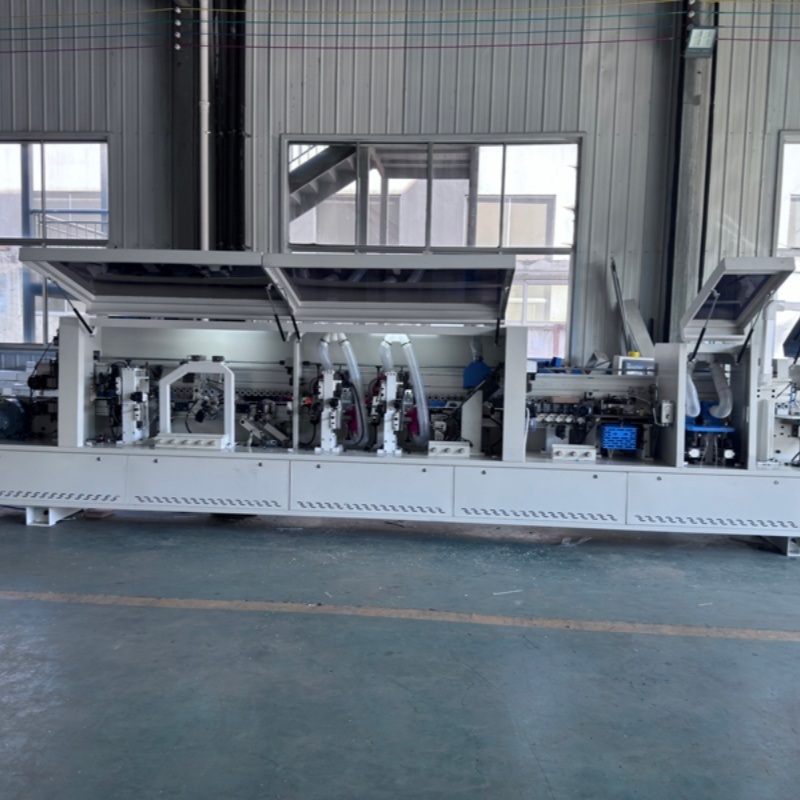

Woodworking Furniture Edge Banding Machine Auto 0 - 60mm Plate Thickness Bander

Woodworking Furniture Edge Banding Machine Auto 0 - 60mm Plate Thickness Bander

Brand Name:	BH
Model Number:	468YJ
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	2000Units/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Minimum Width:

50mm

Minimum Length:

70mm

Operating Air Pressure:

0.7Mpa

Edge Banding Thickness:

0.3~3mm

Dimension:

6600*900*1600mm

Weight:

2600kg

Packaging Details:

6690*990*1690mm

Highlight:

Woodworking Furniture Edge Banding Machine

Furniture Edge Banding Machine Auto

Product Description

Edge Banding Machine Manufacturer 0~60mm Plate Thickness Bander

Our automatic edge banding machine applies decorative or protective bands to panel edges made from wood, MDF, or particleboard. Ideal for woodworking and furniture production, it ensures smooth, finished edges that enhance durability and aesthetics. The machine works with various edge banding materials including PVC, melamine, and veneer, using adhesives, heat, or pressure for secure application.

Key Features

Glue tank: The glue coating device heats hot melt adhesive through a glue pot and uses a spiral structure to evenly apply glue, ensuring a strong adhesive force.
End cutting: Adopts a single guide rail to cut the edges of the board at both ends.

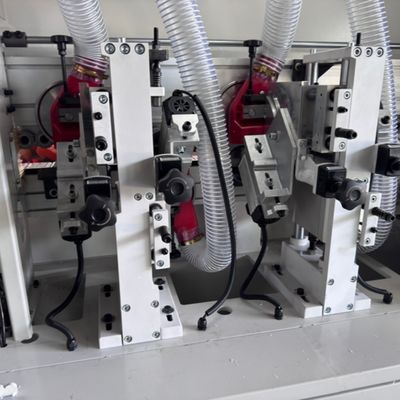

Rough trimming: Prevents breakage of veneer during sealing and serves as first leveling process for PVC and acrylic edge sealing, reducing cutting force and wear of precision cutting tools.
Fine trimming: High speed oblique cutting motor with adjustable operation for convenient use, alloy disc ensures smooth and even trimming.

Technical Specifications

Specification	Value
Outline Dimension	6600×900×1600mm
Machine Weight	2600kg
Working Voltage	380V/50Hz
Total Power	17.9kw
Plate Thickness	10-60mm
Conveyor Speed	18-24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7Mpa
Edge Banding Thickness	0.3-3mm

Operational Advantages

Precision Application: Ensures accurate, uniform edge material application for consistent, high-quality finishes
Production Efficiency: Automated operation reduces manual labor and increases throughput
Material Versatility: Compatible with PVC, wood veneer, melamine, and other edge materials
Enhanced Protection: Shields edges from moisture, dust, and physical damage to extend product lifespan
Aesthetic Improvement: Creates clean, smooth edges that elevate product appearance
Cost Reduction: Minimizes material waste through efficient edge material usage
Customization Options: Accommodates various edge band thicknesses and finishes (glossy, matte, etc.)

Industry Applications

Furniture Manufacturing: Cabinets, tables, chairs, and other furniture components
Woodworking: Doors, panels, and shelving units
Interior Design: Wardrobes, desks, and storage units
Cabinet Making: Professional edge finishing for cabinet components
Custom Woodworking: Precision work on unique or specialty projects
Engineered Wood Processing: MDF and particleboard edge protection
Plastic/Acrylic Finishing: Signage and display manufacturing

Frequently Asked Questions

What is an edge banding machine?

An edge banding machine is a woodworking tool used to apply edge materials--such as PVC, ABS, veneer, or melamine--to the raw edges of furniture panels, improving their appearance and durability.

What materials can the machine work with?

It can be used with various materials, including MDF (Medium Density Fiberboard), particleboard, plywood, solid wood panels, and acrylic or laminated boards. The edge banding can also vary in type and thickness, depending on your production needs.

What types of edge banding machines are available?

Common types include manual edge banding machines for small workshops, semi-automatic machines combining manual feeding with automatic gluing and trimming, fully automatic machines for industrial production lines, CNC edge banding machines for maximum precision, and laser edge banding machines for seamless, glue-free finishing.

What is the working process of an edge banding machine?

The process includes pre-milling to clean and smooth the panel edge, gluing to apply adhesive, banding to attach the band, end cutting to trim excess material, fine trimming for smooth edges, and scraping and buffing for a professional finish.

What kind of glue is used in edge banding?

Typically, EVA (Ethylene Vinyl Acetate) or PUR (Polyurethane Reactive) hot-melt adhesives are used. EVA glue is economical and easy to use, while PUR glue offers stronger bonding and higher resistance to heat and moisture, ideal for high-end applications.
