| Brand Name: | BH |
| Model Number: | 468YJ |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000sets/year |

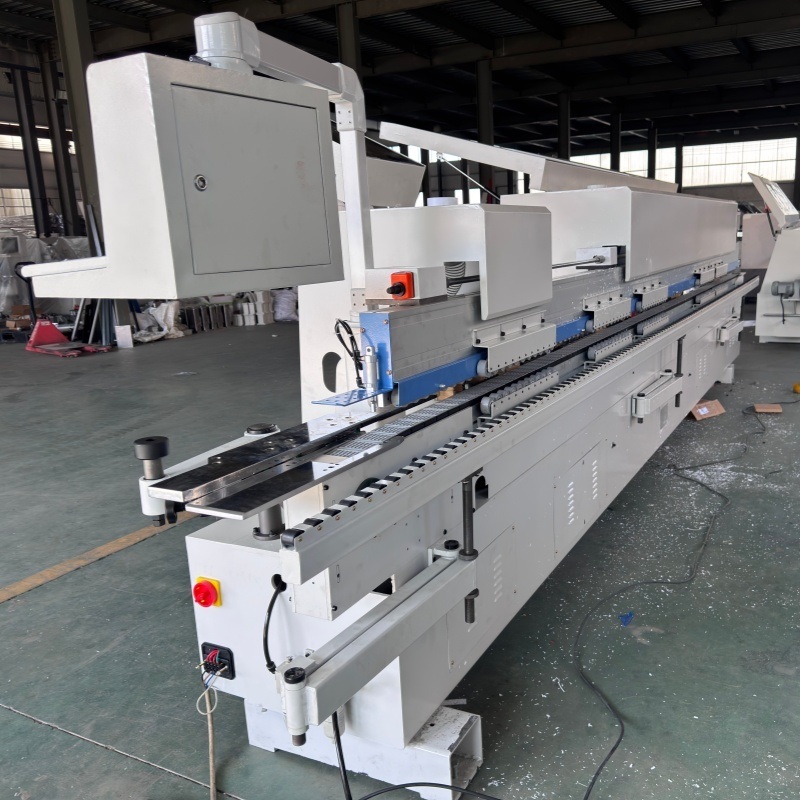

Our automatic edge banding machine applies decorative or protective bands to panel edges made from wood, MDF, or particleboard. Ideal for woodworking and furniture production, it ensures smooth, finished edges that enhance durability and aesthetics. The machine works with various edge banding materials including PVC, melamine, and veneer, using adhesives, heat, or pressure for secure application.
| Outline Dimension | 6600×900×1600mm |
|---|---|
| Machine Weight | 2600kg |
| Working Voltage | 380V/50Hz |
| Total Power | 17.9kw |
| Plate Thickness | 10-60mm |
| Conveyor Speed | 18-24m/min |
| Minimum Width | 50mm |
| Minimum Length | 70mm |
| Operating Air Pressure | 0.7Mpa |
| Edge Banding Thickness | 0.3-3mm |
Yes, these machines can handle various edge materials such as:
These materials can be used for both standard and decorative edge banding, giving manufacturers a wide range of design possibilities.
Pre-milling improves the overall appearance of the edge banding by ensuring that the edge of the panel is perfectly smooth before the banding is applied. This helps eliminate imperfections that could interfere with the bonding process and ensures a flawless, uniform finish after the edge banding is applied.
Yes, edge banding machines with profiling and pre-milling functions are suitable for both solid wood and engineered wood panels (e.g., MDF, plywood, particleboard). Profiling options can be tailored to suit the material's properties, providing a smooth and decorative finish on all types of wood products.
The machine can be equipped with various types of profile cutters, including:
The choice of profile depends on the cutter tool used, and most machines allow for easy switching between different profiles.
