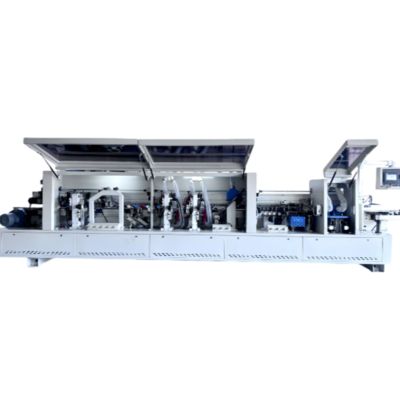

18-24m/min Automatic Edge Banding Machines 2600kg Hot Melt Glue Edge Banding Equipment

18-24m/min Automatic Edge Banding Machines 2600kg Hot Melt Glue Edge Banding Equipment

Brand Name:	BH
Model Number:	468YJ
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	2000sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Dimension:

6600*900*1600mm

Machine Weight:

2600kg

Working Voltage:

380V/50Hz

Power:

17.9kw

Conveyor Speed:

18~24m/min

Minimum Width:

50mm

Packaging Details:

6700*1000*1700mm

Highlight:

Automatic Edge Banding Equipment

18m/min Automatic Edge Banding Machine

24m/min Automatic Edge Banding Machine

Product Description

Fully Automatic Edge Banding Machines 2600kg Hot Melt Glue Edge Banding

Our automatic edge banding machine applies decorative or protective bands to panel edges made from wood, MDF, or particleboard. Ideal for woodworking and furniture production, it ensures smooth, finished edges that enhance durability and aesthetics. The machine works with various edge banding materials including PVC, melamine, and veneer, using adhesives, heat, or pressure for secure application.

Key Features

Encoder: Controls all machine actions with sensitive response and low failure rate
Intelligent Control: Standard PLC microcomputer control using time control principles for enhanced stability and safety
Pre-milling: Double milling cutters trim board edges to remove grain marks, burrs, and ensure perpendicular cutting for superior edge sealing
Corner Round: The contour tracking and rounding device can make the end face of the board smoother and more beautiful
Scraping: Used to eliminate ripple marks caused by non-linear cutting processes during edge trimming, making the upper and lower parts of the edge material smoother and neater

Technical Specifications

Outline Dimension	6600×900×1600mm
Machine Weight	2600kg
Working Voltage	380V/50Hz
Total Power	17.9kw
Plate Thickness	10-60mm
Conveyor Speed	18-24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7Mpa
Edge Banding Thickness	0.3-3mm

Operational Advantages

Precision Application: Ensures accurate, uniform edge material application for consistent, high-quality finishes
Production Efficiency: Automated operation reduces manual labor and increases throughput
Material Versatility: Compatible with PVC, wood veneer, melamine, and other edge materials
Enhanced Protection: Shields edges from moisture, dust, and physical damage to extend product lifespan
Aesthetic Improvement: Creates clean, smooth edges that elevate product appearance
Cost Reduction: Minimizes material waste through efficient edge material usage
Customization Options: Accommodates various edge band thicknesses and finishes (glossy, matte, etc.)

Industry Applications

Furniture Manufacturing: Cabinets, tables, chairs, and other furniture components
Woodworking: Doors, panels, and shelving units
Interior Design: Wardrobes, desks, and storage units
Cabinet Making: Professional edge finishing for cabinet components
Custom Woodworking: Precision work on unique or specialty projects
Engineered Wood Processing: MDF and particleboard edge protection
Plastic/Acrylic Finishing: Signage and display manufacturing

Edge Banding Machine with Profiling and Pre-Milling - FAQ

1. What is an edge banding machine with profiling and pre-milling functions?

An edge banding machine with profiling and pre-milling capabilities combines traditional edge banding processes with additional features that ensure higher precision and quality in edge finishing.

Pre-milling: The machine first removes any irregularities or imperfections from the panel edge to create a smooth and even surface before applying the edge band
Profiling: After the edge band is applied, the machine can create specific shapes, contours, or designs on the edges, adding decorative features to the finished piece

2. What is the benefit of pre-milling in an edge banding machine?

Pre-milling is important for:

Surface Preparation: It removes any roughness, dirt, or irregularities from the edge of the panel, ensuring that the edge band adheres perfectly
Improved Bonding: The smooth, clean edge provides better adhesive bonding, leading to a stronger, longer-lasting result
Enhanced Aesthetics: Helps create uniform edges, especially when working with low-quality or rough-cut panels, resulting in a cleaner and more professional finish

3. How does the profiling function work?

Profiling adds customized edge shapes or decorative designs to the panel's edge. The machine can be equipped with various profiling tools that cut intricate designs or rounded profiles on the applied edge band. This can be done in a single pass, reducing the need for additional manual work. Profiling options may include:

Round edges (e.g., bullnose, ogee)
Beveled edges
Custom shapes (e.g., arc, V-groove)

This function allows manufacturers to produce more sophisticated and aesthetic products, such as decorative furniture, cabinets, or doors.
