| Brand Name: | BH |
| Model Number: | BHM 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 3000Sets/Year |
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
|---|---|---|---|
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Encoder: The encoder manages all machine functions with quick responses and a low rate of failure, ensuring reliable operation.
Intelligent Control: Features a standard PLC microcomputer control system based on a time-controlled principle, providing enhanced stability and safety.

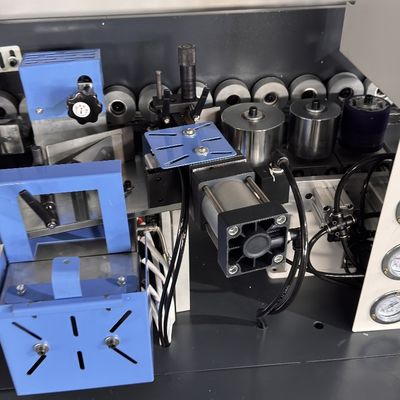

Glue Tank: A glue tank with a suction mechanism heats and applies hot melt adhesive evenly for strong bonding.
End Cutting: The machine has precise single guide rails at both ends, ensuring accurate edge cutting.
Fine Trimming: Equipped with a high-speed angled motor and adjustable settings, coupled with an alloy disc, the machine performs smooth and precise trimming.
Delivery
Safe Packaging: Edge banding machines are large and delicate pieces of machinery, so suppliers typically use heavy-duty packaging materials to protect the machine during transit. This includes custom wooden crates, bubble wrap, foam padding, and steel reinforcements to prevent any damage during shipping.
Timely Delivery: Reputable suppliers usually provide an estimated delivery time for edge banding machines, which can range from a few weeks to a couple of months, depending on the origin and destination. The seller guarantees that the machine will be shipped within the agreed-upon timeframe.
