380V / 50Hz Edgebanding Machines Flat Scraping Scrape Clean Function

380V / 50Hz Edgebanding Machines Flat Scraping Scrape Clean Function

Brand Name:	BH
Model Number:	BHM 368F
MOQ:	1
Price:	Negotiable
Payment Terms:	,T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Outline Dimension:

3500*750*1500mm

Conveyor Speed:

18~24m/min

Minimum Width Of Board:

50mm

Minimum Length Of Board:

70mm

Edge Banding Thickness:

0.3~3mm

Plate Thickness:

10~60mm

Packaging Details:

3600*850*1600mm

Highlight:

50Hz Edgebanding Machines

380V Edgebanding Machines

Product Description

Edgebanding Machines Flat Scraping Scrape Clean Function Used Condition

We produce a large number of products every day with fast delivery. Support any custom color, LOGO, engine, air conditioning and other configurations. Customization available even for 1 piece.

BHM START 300 High-speed Fully Automatic Edge Banding Machine

The New BHM START 300 automatic edge banding machine is suitable for board shops and small processing factories, featuring vertical display control panels and hand-cranked digital display adjustment for pressure beam height. The machine uses a large-capacity glue pot for continuous edge sealing. Simply feed the straight plate through the process of gluing, pressing, rough trimming, end trimming, corner trimming, large diameter vacuuming, secondary scraping and buffing - completing plate molding in one pass.

Specifications

Outline dimension	35007501500mm	Conveyor speed	18~24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	7KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3~3mm

Key Features

Encoder: All machine functions are controlled by a highly responsive encoder, designed to minimize failure rates for consistent performance.

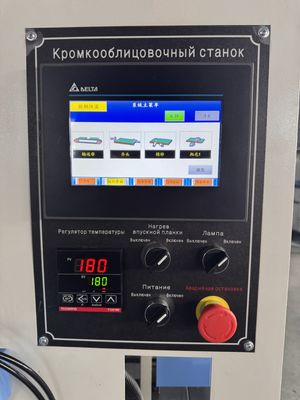

Intelligent Control: Features a standard PLC control system, using time-based principles to enhance stability and operational safety.

Glue System: A suction-based glue tank heats and applies hot melt adhesive evenly across the edges for superior adhesion.

End Cutting: The machine utilizes single guide rails at both ends to achieve precise and accurate edge cutting.

Fine Trimming: With a fast, adjustable motor and alloy trimming disc, the machine delivers smooth and precise trimming results.

Buffing: Polishing for smoother edge sealing sections.

For Consumers

Our woodworking machinery is affordable, customizable, and available in various models. Whether you need small or large woodworking machinery, we can perfectly meet your requirements.

For Suppliers

Our woodworking machinery has redefined industry standards with innovative features and durability. We provide sufficient profit margins and 1-3 years of after-sales service. Some parts can be shipped by air for faster delivery. We conduct pre-delivery testing to ensure product quality and offer free promotion support in your country.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao City, Shandong Province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide instructional videos and English manuals. Free professional guidance is available until you can operate the machine proficiently.

Q5: What's your MOQ and delivery terms?

A5: MOQ is 1 set. We ship directly to your country's port - please provide your port name for best shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7. We also offer overseas installation service.

Q7: What if my machine needs repair?

A7: We provide free online training. For major issues during warranty, we will repair the machine.

Shipping Terms

Upon receiving the order, the edge banding machine will be shipped within 20-40 days. The exact delivery time will depend on the destination and shipping method selected. We will send you tracking details once your order has been shipped, and we ensure the equipment is safely packaged to avoid transit damage.
