High Speed Fully Automatic Edge Banding Machine With Vertical Display Control

High Speed Fully Automatic Edge Banding Machine With Vertical Display Control

Brand Name:	BH
Model Number:	BHM 368F
MOQ:	1
Price:	Negotiable
Payment Terms:	,T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Power:

7KW

Thickness:

10-60mm

Speed:

18~24m/min

Dimension:

3500*750*1500mm

Voltage:

380V/50Hz

Name:

Edge Banding Machine

Packaging Details:

3600*850*1600mm

Highlight:

Fully Automatic Edge Banding Machine

High Speed Automatic Edge Banding Machine

High Speed Auto Edge Banding Machine

Product Description

High-speed Fully Automatic Edge Banding Machine with Vertical Display Control

We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, air conditioning, and other configurations. Available for orders as small as 1 unit.

Product Overview

The BHM START 300 automatic edge banding machine is designed for board shops and small processing factories. It features vertical display control panels and hand-cranked digital display adjustment for pressure beam height. The machine completes plate molding in one continuous process including gluing, pressing, trimming, and polishing.

Technical Specifications

Outline dimension	35007501500mm	Conveyor speed	18~24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	7KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3~3mm

Key Features

Encoder: Sensitive encoder ensures rapid response times and low failure rate for dependable performance.
Intelligent Control: Microcomputer-controlled PLC system provides optimal stability and enhanced safety.
Glue Application: Heated glue tank with suction structure ensures even, strong adhesive application.
End Cutting: Single guide rails at both ends ensure precise and accurate edge cutting.
Fine Trimming: High-speed trimming motor with adjustable angles and robust alloy disc for smooth operation.
Buffing: Polishing system creates smoother edge sealing sections.

Customer Benefits

Our woodworking machinery is affordable, customizable, and available in various models to meet all requirements from small workshops to large production facilities.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize color, size and logo to your specifications.

Q2: Where is your factory located?

A2: We are located in Qingdao City, Shandong Province, China.

Q3: Can you make the machine according to my design?

A3: Yes, our professional designers can create custom solutions based on your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide instructional videos, English manuals, and free professional guidance.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7 with overseas installation service available.

Q7: What if my machine needs repair?

A7: We provide free online training and warranty repairs for major issues.

Dispatch and Delivery

The edge banding machine will be processed and dispatched within 15-30 days of order receipt. Delivery time varies by location, and we provide tracking information upon shipment. All machines are securely packed to prevent damage during transit.

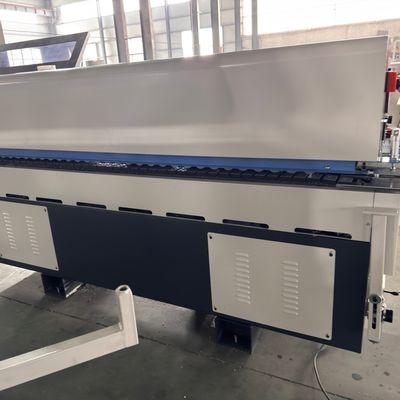

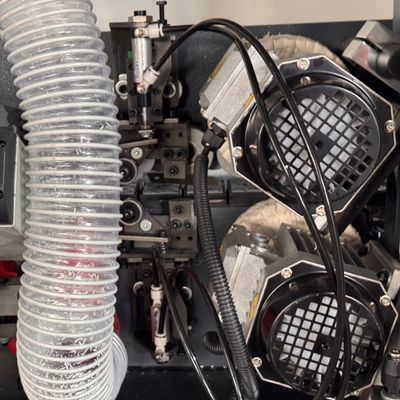

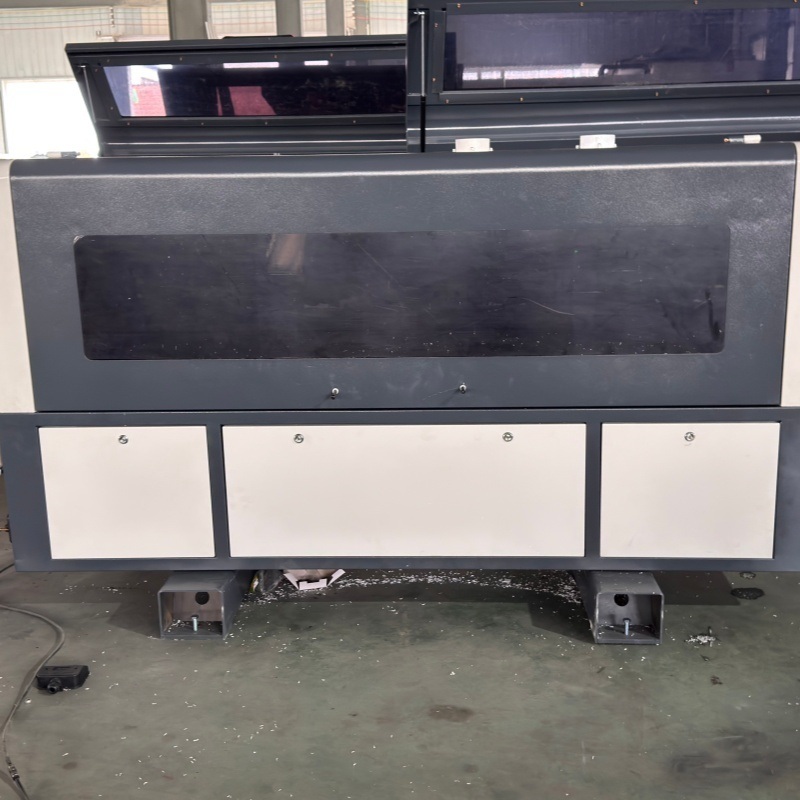

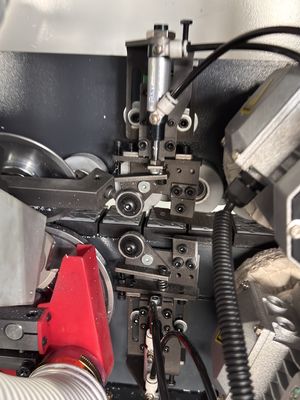

Product Images
