| Brand Name: | BH |
| Model Number: | BHM 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 3000Sets/Year |
We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, air conditioning, and other configurations. Custom orders available starting from just 1 piece.

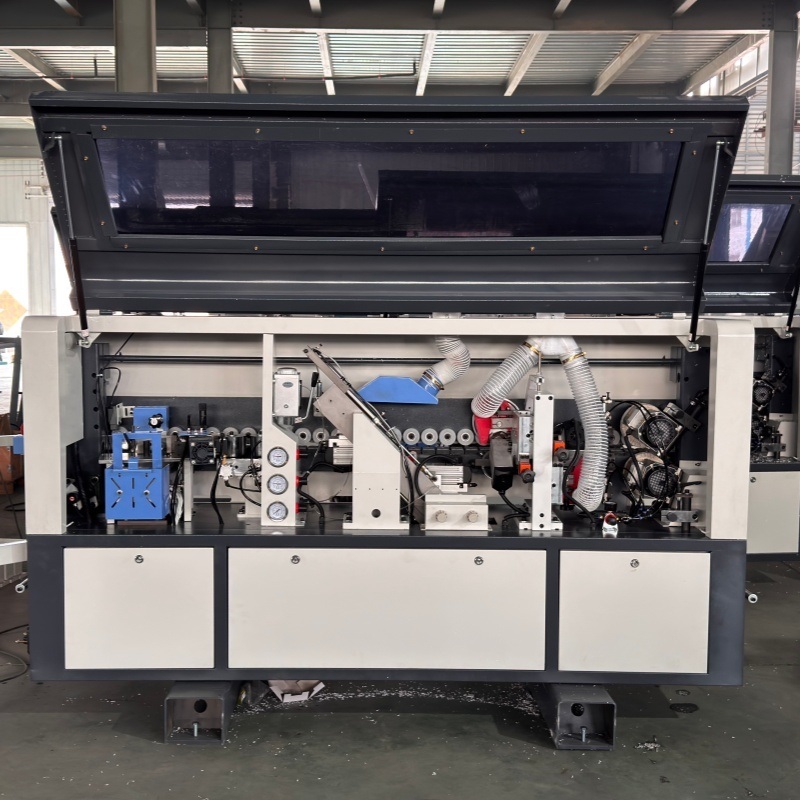

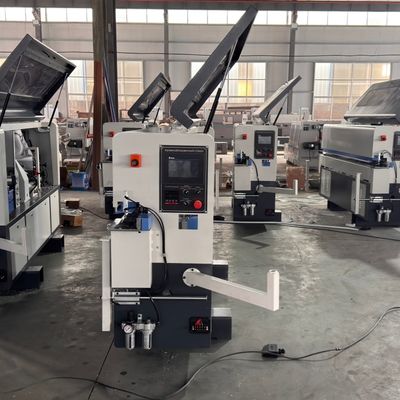

The BHM START 300 automatic edge banding machine is ideal for board shops and small processing factories. Features include vertical display control panels and hand-cranked digital display adjustment for pressure beam height.

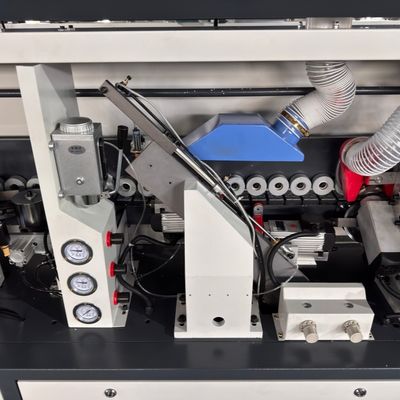

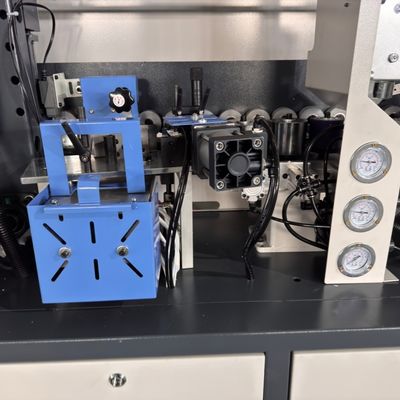

The machine utilizes a large-capacity glue pot for continuous edge sealing. The complete process includes gluing, pressing, rough trimming, end trimming, corner trimming, vacuuming, secondary scraping, and buffing - completing plate molding in one pass.
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
|---|---|---|---|
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.
Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.
Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.
