| Brand Name: | BH |
| Model Number: | BH-73212 |
| MOQ: | 1 |
| Price: | 1100-1800USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

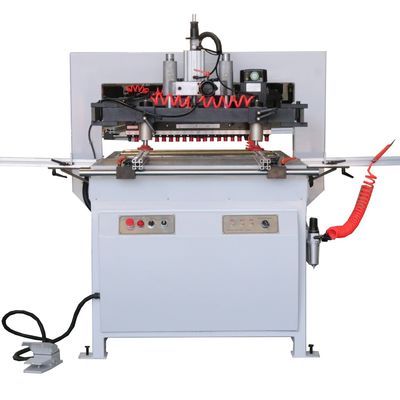

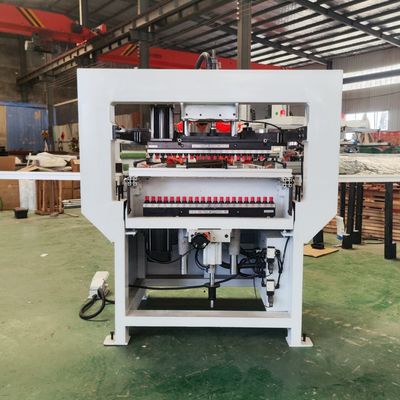

The BH-73212 Double Row Drill is a high-performance woodworking machine engineered for efficient and precise parallel row drilling. Equipped with two independent rows, each featuring 21 spindles and powered by a dedicated 1.5kW motor, this machine delivers double the productivity for complex boring tasks. It is capable of handling a maximum drilling diameter of 35mm and a depth of 60mm per spindle. With a robust construction and a compact footprint of 2360*1600*1600mm, it is designed for reliability in demanding workshop environments.
Product Parameters
| Working space | 2360×1600×1600mm |
| Motor power | 1.5kw*2 |
| Speed | 2840r/min |
| Machining hole spacing | 32-1700mm |
| Number of drill row | 21*2 |
| Maximum drilling depth | 60mm |
1.Dual-Row High-Efficiency Design: Two independent rows with 21 spindles each enable simultaneous drilling of parallel hole patterns, drastically reducing processing time and boosting output.
2.Powerful Dual-Motor System: Two 1.5kW motors (one for each row) provide ample and stable power for consistent performance, even with high-density drilling.
3.High Precision & Speed: Operates at 2840 rpm, ensuring fast, clean, and precise holes with smooth finishes.
4.Versatile Hole Spacing: A standard hole spacing of 32mm (with a range up to 1700mm) makes it ideal for modern connector-based furniture and cabinet construction.
5.Robust and Stable Build: Weighing 350kg, the machine offers excellent stability and vibration damping, which is crucial for maintaining accuracy during operation.
Product Applications
The BH-73212 Double Row Drill is ideally suited for:
Cabinet and Wardrobe Manufacturing: Perfect for drilling the parallel rows of holes required for shelf-pin installation and assembly.
Panel Furniture Production: Essential for creating the system holes needed in frame-and-panel constructions and modular furniture.
Office Furniture: Used for drilling multiple precise hole patterns in desks, partitions, and storage units.
Custom Woodworking & Joinery: Highly effective for any project requiring accurate, repetitive, and parallel boring operations in timber or panels.
Details display
Hand WheelCan adjust the working height.
45°AdjustmentIt can adjust working in horzontal ,vertical and 45°
Drill BitsSingle boring machine with21 drill bits.
Pressure CylinderTo insure the panel fixed wellwhen working.
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services. Q7: If my machine breaks down, can you help me repair it?
