Woodworking Double Row Hole Wood Drilling Machine Multiple Drill Bits 2840r/min

Woodworking Double Row Hole Wood Drilling Multiple Drill Bits

Product Overview

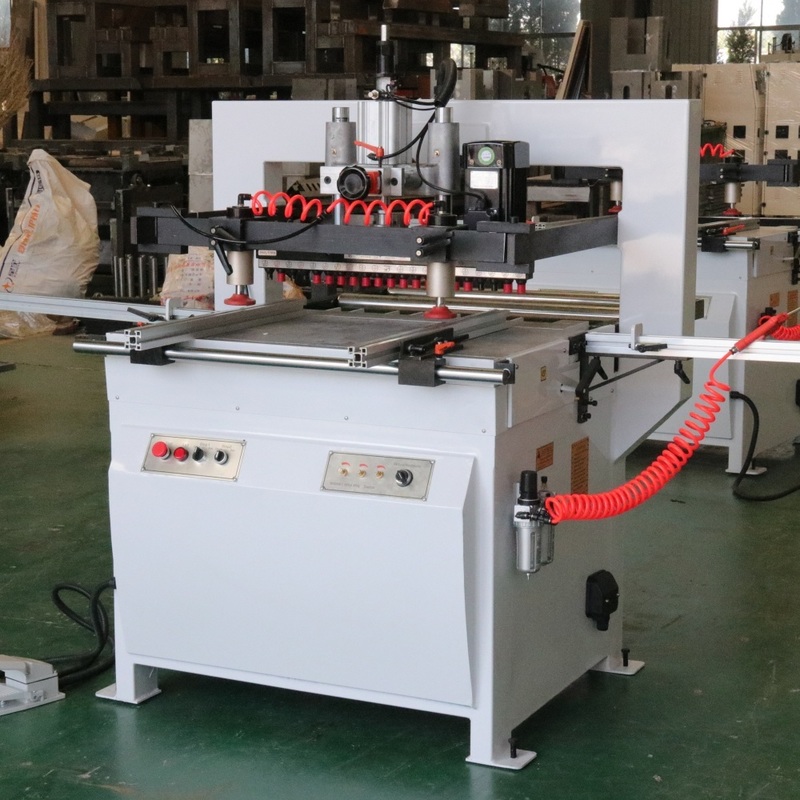

The Double Row Drill is a high-performance woodworking machine engineered for efficient and precise parallel row drilling operations. Built with a robust dual-motor system, each rated at 1.5kW, this machine delivers reliable power for demanding production environments. It features two rows of drill shafts, with 21 spindles per row, enabling simultaneous drilling of two parallel hole patterns. With a maximum drilling diameter of 35mm and depth of 60mm, along with an adjustable hole spacing range of 32mm to 1700mm, it offers exceptional versatility. Operating at a speed of 2840 rpm and requiring a working footprint of 2360×1600×1600mm, this 350kg machine is designed for stability and precision in high-volume manufacturing settings.

Product Parameters

Product Advantages

1. Dual-Row High-Efficiency Drilling: Two independent rows, each with 21 spindles, allow for simultaneous drilling of dual hole patterns, drastically reducing processing time and increasing output.

2. Powerful Dual-Motor System: Equipped with two 1.5kW motors, ensuring ample power for both spindles and consistent performance under heavy loads.

3. Wide Processing Flexibility: Adjustable hole spacing from 32mm to 1700mm accommodates a broad range of workpiece dimensions and complex hole layout requirements.

4. Superior Drilling Capacity: Capable of boring large-diameter holes up to 35mm and achieving depths of 60mm, making it suitable for thick materials and robust construction.

5. High-Speed Precision Operation: A spindle speed of 2840 rpm enables fast, clean, and accurate hole drilling with high repeatability.

6. Sturdy and Stable Construction: With a weight of 350kg and a solid frame, the machine minimizes vibration, ensuring long-term operational accuracy and durability.

Product Applications

The Double Row Drill is ideally suited for advanced woodworking and furniture manufacturing, including:

1. Panel Furniture Production: Efficiently drills parallel rows of system and connector holes for cabinets, shelving units, and modular furniture.
2. Window and Door Frame Manufacturing: Perfect for creating precise, symmetrical hole patterns for hardware mounting in doors and window frames.
3. Solid Wood Processing: Used in applications requiring aligned boring in table legs, stair components, and other solid wood items.
4. Custom Woodworking and Joinery: Essential for producing specialized items that require accurate, parallel boring operations in a single pass.
5. Pallets and Wooden Crates: Ideal for high-speed, repetitive drilling tasks in the production of logistics and storage solutions.

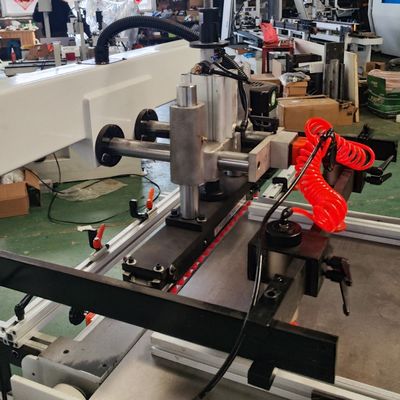

Details display

Hand WheelCan adjust the working height.

45°AdjustmentIt can adjust working in horzontal ,vertical and 45°

Drill BitsSingle boring machine with21 drill bits.

Pressure CylinderTo insure the panel fixed wellwhen working.

Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping cost and machine price.
