| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | $2800-$3500 |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
Product Description

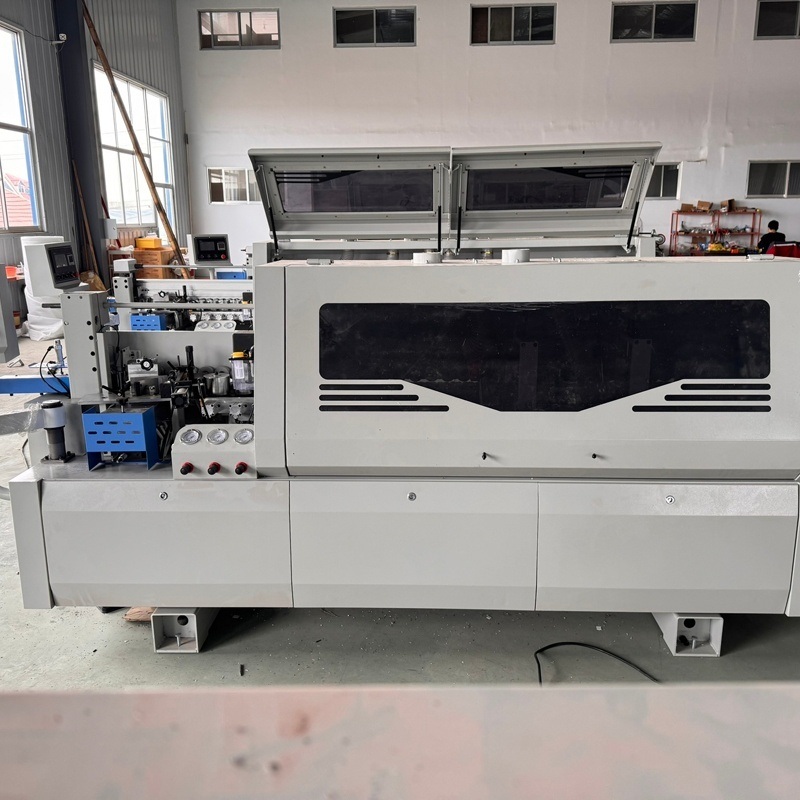

The BHM368F Edge Banding Machine is a high-performance, industrially engineered machine designed for applying edge banding to a variety of board materials. With an overall dimension of 3500×750×1500 mm and a robust weight of 1000 kg, this machine is built for durability and precision in industrial environments. It operates on a 380V/50Hz power supply with a total power consumption of 7 kW, making it both efficient and powerful. The machine supports board thicknesses from 10 mm to 60 mm and edge banding thicknesses from 0.3 mm to 3 mm, offering versatility for different production needs. Its conveyor system operates at a speed of 18–24 m/min, ensuring efficient and continuous operation.
Intelligent Control System
The machine is equipped with a standard PLC microcomputer control system, utilizing time-control principles to enhance operational stability and safety. An encoder ensures precise control over all machine actions, resulting in sensitive response and a low failure rate.
Glue Application System
The glue tank uses a spiral structure to heat and evenly apply hot melt adhesive, ensuring strong and consistent bonding between the edge banding and the board.
End Cutting
Featuring a single guide rail system, the machine accurately trims the edges of the board at both ends, ensuring clean and precise finishes.

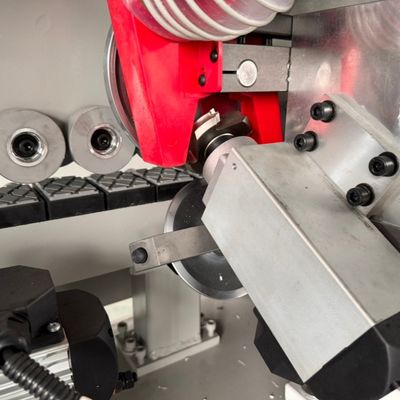

Fine Trimming
A high-speed oblique cutting motor with an adjustable alloy disc allows for smooth and even trimming, enhancing the overall finish quality.
Scraping Function
This function eliminates ripple marks caused by non-linear cutting during the edge trimming process, resulting in smoother and neater edges.
Buffing/Polishing
The buffing unit polishes the edge sealing section to a smooth and effective finish, improving both appearance and durability.
High-Quality Components
The machine incorporates premium brand components such as Schneider electrics, SICK sensors, Honeywell controls, and CC motors, ensuring reliability and longevity.
High Precision and Consistency: The combination of PLC control, encoder, and high-frequency motors ensures accurate and repeatable results.
Efficient Production: With a conveyor speed of up to 24 m/min and quick setup for small boards (min. 50mm width, 70mm length), the machine supports high-volume production.
Durability and Reliability: Built with industrial-grade components and a sturdy structure, the BHM368F is designed for long-term use in demanding environments.
Ease of Operation: The touch screen interface and adjustable trimming mechanisms make the machine user-friendly and easy to configure.
Versatility: Capable of handling a wide range of board and edge banding thicknesses, the machine is suitable for various materials and applications.
Enhanced Finish Quality: Functions such as scraping and buffing ensure a superior surface finish, reducing the need for manual rework.
The BHM368F Edge Banding Machine is widely used in the woodworking and furniture manufacturing industries. It is ideal for:
Furniture Production: Applying edge banding to desks, cabinets, shelves, and tables.
Kitchen and Wardrobe Manufacturing: Ensuring clean and durable edges for modular kitchen and wardrobe panels.
Office Furniture: Providing a polished finish to desks, partitions, and storage units.
Door and Window Frame Production: Sealing edges for improved aesthetics and moisture resistance.
Custom Woodworking Projects: Supporting small-scale and custom production with its ability to handle minimal board sizes.
With its advanced features, robust construction, and intelligent control system, the BHM368F Edge Banding Machine is an excellent choice for manufacturers seeking to enhance productivity, quality, and efficiency in edge processing operations.
