| Brand Name: | BH |
| MOQ: | 1 |
| Price: | 2000-2800USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |
Fast Speed Cnc Side Drilling And Milling Machine High Performance Prive
Product Overview
The Side Drilling Machine is a high-precision and robust CNC machine designed for efficient and accurate side-drilling operations. With a compact footprint of 3300×1100×1200 mm and a generous working travel of 2800 mm, it is ideally suited for processing large workpieces. The machine is equipped with two high-speed spindle motors (Akemde Huajiang brand, 2.2 kW each, 18,000 rpm), ensuring powerful and precise drilling performance. It features a fixed gantry structure, a PVC carving worktable, and is driven by high-performance servos (Tonghang 750W + 400W). Precision motion is guaranteed by TBI high-performance ball screws and 20 linear guides on the X, Y, and Z axes.
Configuration parameters
| Equipment size |
3300*1100*1200mm |
| Spindle motor power | 2.2kw |
| Speed |
18000rpm/Min |
| Guide rails | XY three-axis 20 guide rails |
| work surface | PVC carved countertops |
| Bed weight | 500kg |
1.Dual Spindle Design: Two independent 2.2 kW spindles enable simultaneous processing, significantly boosting production efficiency.
2.High-Speed Precision: Spindles operate at 18,000 rpm, combined with high-performance drives and TBI ball screws, for exceptional accuracy and finish.
3.Robust Construction: Weighing 500 kg with a rigid frame and fixed gantry, the machine provides outstanding stability and durability.
4.Automated Operation: Features like automatic central lubrication, laser sensing, barcode scanning, and pneumatic clamping minimize manual intervention and enhance workflow.
5.Safety & Compliance: CE-standard wiring, custom safety limits, and reliable, brand-name components ensure a safe working environment.
6.Customizable System: A dedicated control system and configurable clamping options allow adaptation to specific production needs.
This side drilling machine is versatile and suitable for a wide range of industries, including:
1.Furniture Manufacturing: For drilling side holes in panels, cabinets, and customized furniture.
2.Aluminum Profile Processing: Precision side hole drilling in aluminum doors, windows, and structural frames.
3.Woodworking & Carpentry: Accurate hole drilling in wooden components and structural elements.
4.Custom Fabrication: Ideal for batch production requiring high repeatability and accuracy.
5.Modular Construction: Used in the production of prefabricated building components.

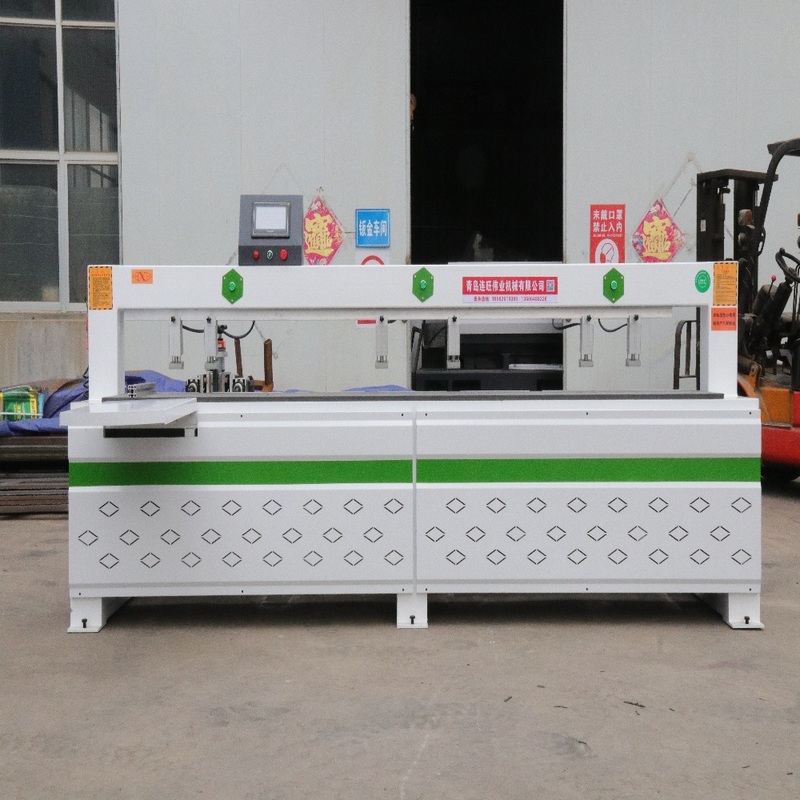

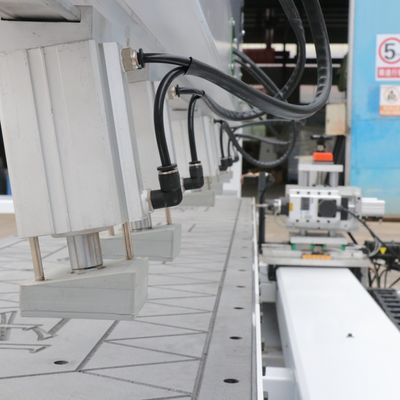

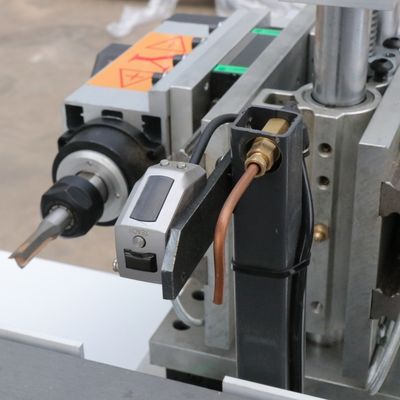

Details display
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you want to order from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery quantity?
A5: Our minimum order quantity is 1 machine. We can send the machine directly to your country's port. Please let us know your port name. We will provide the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
