| Brand Name: | BH |
| MOQ: | 1 |
| Price: | 2500-3500USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

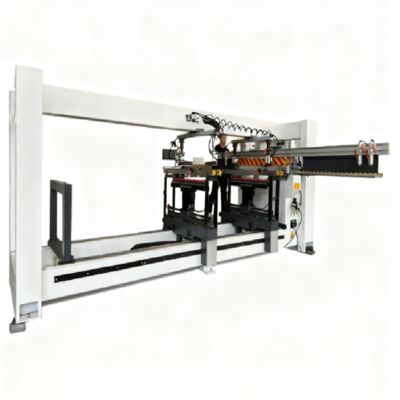

Horizontal Three Row Drilling Machine drill For Wood Woodworking
Product Overview
The Three-Row Drilling Machine is a high-performance drilling equipment designed for large-scale, multi-hole precision processing in panel furniture manufacturing. Its body is constructed from thickened square tubes welded and aged to ensure long-term stability and freedom from deformation. The machine features three rows with a total of 21 spindles, offering a vertical drilling range of 140-2400mm, a maximum drilling diameter of 35mm, and a depth of 60mm. It utilizes a Delta PLC (Taiwan) and Fanyi touchscreen for intuitive and simple operation. The power system, equipped with Guangdong Tianyang motors and special cylinders paired with Taiwanese-brand drill heads, ensures stable and reliable performance. The vertical drill rows can rotate 90 degrees horizontally and move forward/backward via a lead screw, enabling both longitudinal and transverse drilling for versatile application.
Configuration parameters
|
Max drill diameter |
35mm |
|
Max working depth |
60mm |
|
Vertical drilling hole spacing |
140-2400m |
|
Number of spindle |
21 axes*3 rows |
|
Spindle speed |
2800r/min |
|
Motor Power |
1.5kw*3 |
1.High Rigidity Body Structure: Thickened square tube welding with aging treatment prevents deformation and ensures machining accuracy.
2.Efficient Three-Row Drill Design: 21 spindles in three rows with a vertical hole spacing of 140–2400mm, suitable for large-format panel processing.
3.Intelligent Control System: Delta PLC and Fanyi touchscreen provide user-friendly operation, enhancing work efficiency and consistency.
4.High-Quality Core Components: Taiwanese drill heads, Tianyang motors, and special cylinders ensure long-term reliable operation.
5.Flexible Multi-Directional Drilling: Vertical drill rows rotate 90° and move forward/backward, enabling both horizontal and vertical drilling for versatile use.
Product Applications
Widely used in the panel furniture manufacturing industry, suitable for drilling solid wood boards, MDF, particleboard, fiberboard, and other artificial boards. Particularly ideal for high-volume, high-precision hole processing in cabinets, wardrobes, office furniture, and interior wood products.

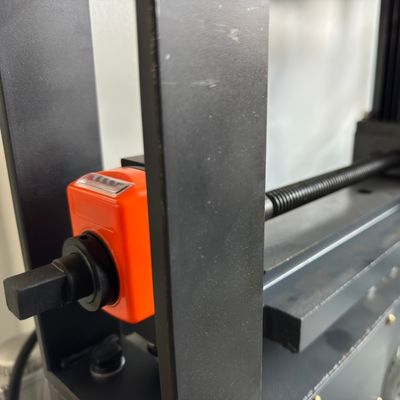

Details display
FAQ
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you want to order from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery quantity?
A5: Our minimum order quantity is 1 machine. We can send the machine directly to your country's port. Please let us know your port name. We will provide the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
Q7: What if my machine breaks down? Can you help me repair it?
A7: Yes. We have free training online. If your machine has a major problem during the warranty period, we can repair it.
