| Brand Name: | BH |
| Model Number: | 450FE |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |

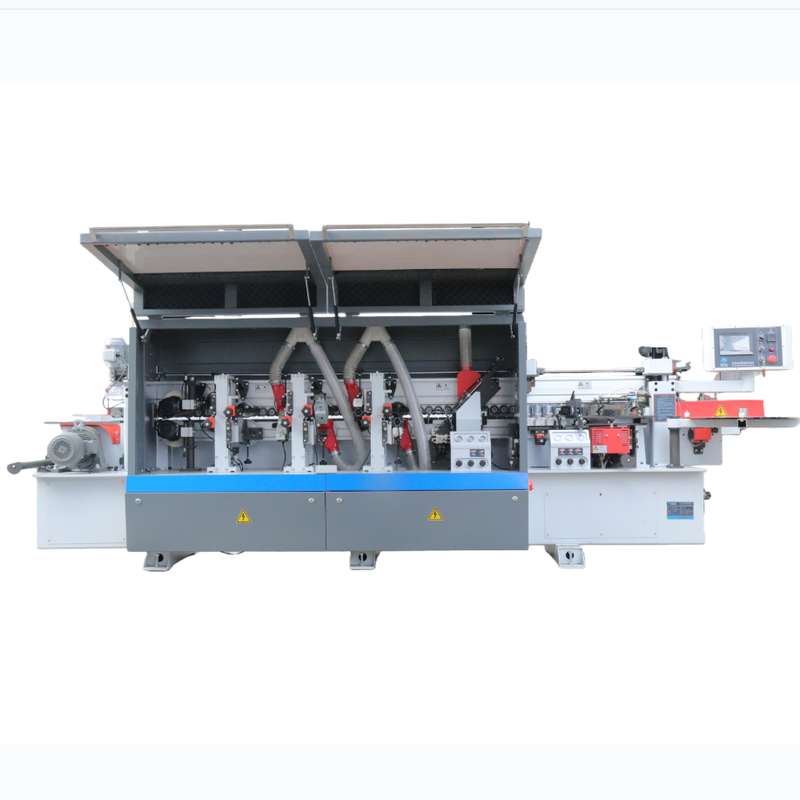

High Speed Automatic PVC Furniture Factory Suitable Automatic Bearing Engine
Products Description

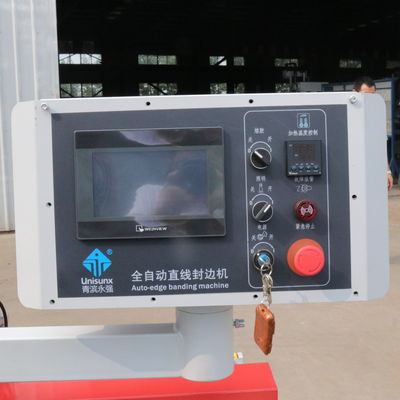

Touch screen
Digital display control for more convenient operation
Guling
Make the edge-banding board and the edge-banding material evenly coated on both sides to ensure stronger adhesion
End Cutting
Cut off the redundant edge banding at both ends of the plate (the cylinder has 2 pressure regulating valves and 1 pressure relief valve). The air pressure is more stable, and the end is more stable.
Rough trimming
The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and
lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band
of the plate
Fine trimming
The six-edged R knife trims off the excess edge banding and the trimming is more beautiful.
Scraping
Designed for upper flat scraping and lower R scraping according to the characteristics of bevel; The super hard alloy R knife
scrapes the fine lines of the edge banding strip to make it smooth.
Buffing
Use a cotton polishing wheel to clean the processed plates, and polish the edge-sealing end surface smoother.
|
Place of Origin
|
China
|
|
Type
|
Edge banding machine
|
|
Brand Name
|
BH
|
|
Voltage
|
220V/380V
|
|
Dimension(L*W*H)
|
4570X970X1520mm
|
|
Power (kW)
|
14.3KW
|
|
Weight (KG)
|
1200kg
|
|
Applicable Industries
|
Hotels, Building Material Shops, Restaurant, Home Use, Furniture Factory
|
|
Warranty
|
1 year
|
|
Key Selling Points
|
Automatic
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Pump, Gear, Gearbox, Pressure vessel, Engine
|
|
Usage
|
MDF Production
|
|
Product name
|
Edge Banding Macine
|
|
Feed Rate
|
12-20mmin
|
|
Edge Band Thickness
|
0.4-3mm
|
|
Working Thickness
|
9mm
|
|
Working Length
|
200mm
|
|
Working Width
|
60mm
|
|
Working Pressure
|
0.6mPa
|
|
Total Power
|
14.3KW
|
|
Min. panel size
|
60(L)X200(W)mm
|
|
After Warranty Service
|
provied
|
Dual Trimming System – Equipped with both rough and fine trimming units, this model ensures smooth and accurate shaping of the edge band after gluing and cutting.
High-Speed Motors – Uses two powerful, high-precision motors to drive the trimming cutters, delivering consistent results with minimal vibration.
Adjustable Cutting Depth – Allows easy adjustment according to different edge banding thicknesses (PVC, ABS, veneer, etc.), ensuring flexibility for diverse furniture applications.
Durable Cutting Tools – The trimming blades are made of alloy or diamond-tipped material, providing long service life and clean, sharp edge finishes.
Stable Mechanical Structure – Built with a heavy-duty frame and precision guide rails, ensuring stability, reliability, and accuracy during continuous operation.
Delivery Time: 10–15 working days after payment confirmation.
Packaging: Each machine is wrapped in anti-rust film and solid wooden cases to ensure safe transportation.
Shipping Options: Sea freight (recommended), air shipment, or express delivery for smaller orders.
Export Support: Full documentation provided — commercial invoice, packing list, CE certificate, and customs clearance papers.
After-Sales Service: Online technical support and video installation guide available for international buyers.
Smooth and precise edge finish, eliminating burrs and uneven surfaces.
High efficiency — simultaneous dual trimming greatly reduces manual work and improves productivity.
Easy operation with simple adjustments for different materials and thicknesses.
Strong adaptability — suitable for MDF, chipboard, plywood, and other panel types.
Low maintenance cost with long-lasting mechanical performance and minimal tool wear.
Ideal for small to medium woodworking factories seeking high-quality edge finishing at an affordable price.
