| Brand Name: | BH |
| Model Number: | 450C |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |

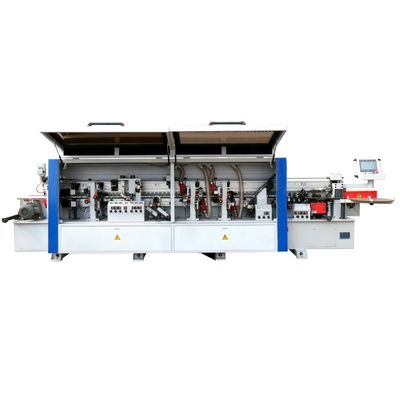

High Speed Full Automatic Corner Rounding CNC Edge Banding Machine
Specification
|
Overall dimensions |
7900*910*1540mm |
|
Min Panel Side |
300(L)*60(W) 150(L)*150(W) |
|
Feed speed |
15-23m/min |
|
Edge thickness |
0.2-3mm |
|
Panel Thickness |
10-60mm |
|
Panel Length |
≥150mm |
|
Panel Width |
≥60mm |
|
Working Air Pressure |
0.6Mpa |
|
Weight |
2950kg |
|
Total Power |
24.1kw |

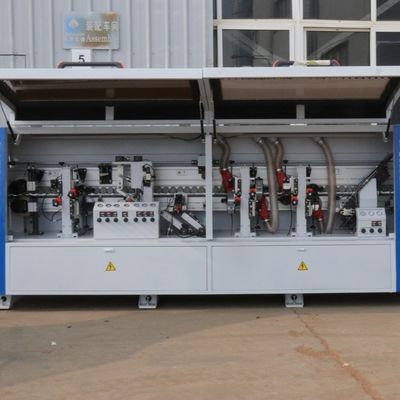

Double Trimming + Profiling System – Combines rough and fine trimming with advanced profiling (tracking trimming) to achieve complex edge contours and perfect smoothness.
Italian-Style Tracking Technology – The profiling unit adopts imported or Italian-inspired copying technology, capable of performing multiple contour effects that follow the workpiece shape precisely.
Four-Mode Copying Function – Allows operators to switch between different copying profiles for round, straight, beveled, or R-shaped edges, ensuring versatility in design.

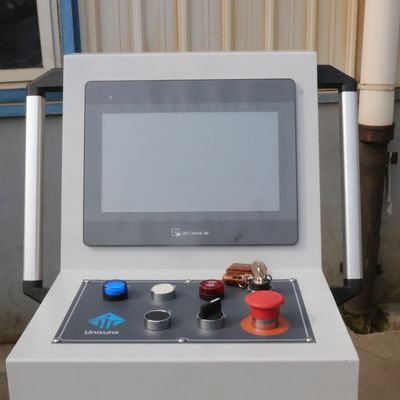

Precision Control System – Fine-tuned adjustment for trimming depth, tracking sensitivity, and tool position provides maximum processing accuracy.
High-Speed Stable Operation – The integrated system ensures seamless transition between trimming and profiling, minimizing tool marks and improving efficiency.
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
Application
The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
Shipping
Shipping Information
The edge banding machine will be carefully packaged and shipped within 15-30 days of order confirmation. Delivery times may vary depending on your location and shipping method. Tracking details will be provided once the shipment is dispatched, and we ensure secure packaging to prevent damage during transit.
Delivery Timeline
We typically dispatch edge banding machines within 2-4 weeks after order confirmation. Depending on your shipping address, delivery may take additional time, and we will provide tracking information to monitor your order. All machines are securely packed for safe delivery.
Shipping Terms
Upon receiving the order, the edge banding machine will be shipped within 20-40 days. The exact delivery time will depend on the destination and shipping method selected. We will send you tracking details once your order has been shipped, and we ensure the equipment is safely packaged to avoid transit damage.
Dispatch and Delivery
The edge banding machine will be processed and dispatched within 15-30 days of order receipt. Delivery time may vary depending on your location, but rest assured that we will provide tracking information once the item ships. Our team ensures the machine is packed securely to prevent any damage during shipping.
