| Brand Name: | BH |
| Model Number: | 688PUR |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |

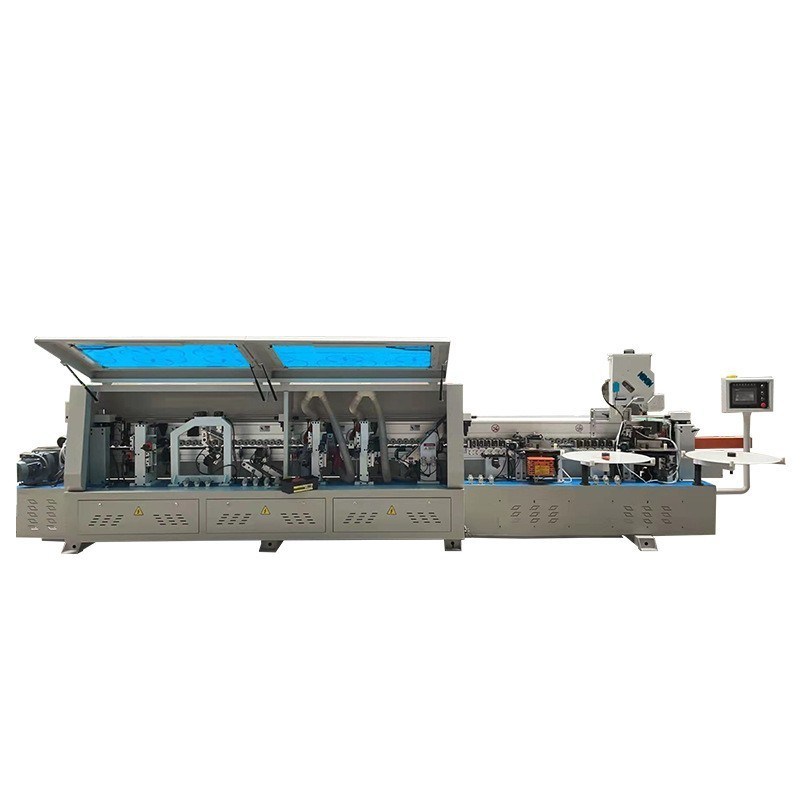

PUR Glue Pot Woodworking Edge Banding Machine High Efficiency
Pre-Milling Double Glue Pot Double Trimming Profiling Tracking Edge Banding Machine is a high-performance model designed for precise, efficient, and visually appealing edge banding operations. It integrates advanced European processing technology to ensure smooth, seamless, and durable panel edges.
This model features a pre-milling system that removes surface impurities and irregularities before gluing, ensuring a perfect bonding surface. The dual glue pot system allows quick switching between different glue types or colors, meeting diverse production requirements. Equipped with double trimming units, it ensures fine and precise edge finishing on both sides. The profiling tracking function, adopting Italian patented technology, provides four different contour-following effects, ensuring excellent tactile and visual quality for complex workpieces.
Select edge banding machines with different length functions according to different production requirements. Support customizationOEM&ODM.
Glue pot
requires only 15 minutes to reach operating temperature. The tool free quick change system guarantees quick cleaning and change over times when changing the glue or colour. The synchronised, fine adjustable glue roller ensures the right application amount of glue.

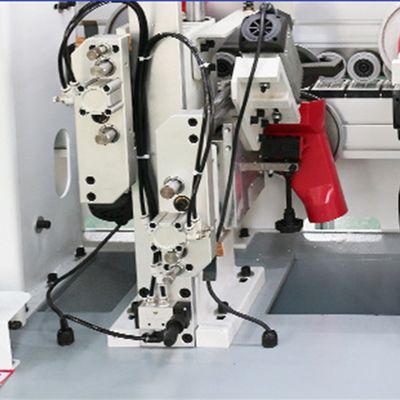

End cut
Through the precise linear guide rail movement, the automatic tracking by the die and high frequency high-speed motor cutting structure are adopted to ensure smooth and smooth cutting surface.
Fine trimming system
2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters. The manual 2-axis position control of both height and depth ensures 100% repeatability. Edge belt thickness change by manual.
Delta touch screen
The machine is with 6 functions as follows gluing ,end trimming ,rough trimming fine trimming scraping,buffing .And since it isphysical scraping ,therefore there are five functions on the screen , so scraping function is not shown
Product Description
|
Model |
Edge banding machine |
|
Feeding Speed |
18-22m/min |
|
Edge Thickness |
0.4-3mm |
|
Panel Thickness |
10-60mm |
|
Panel length |
≥120mm |
|
Panel Width |
≥60mm |
|
Work Pressure |
0.6Mps |
|
Motor Power |
13kw |
|
Machine size |
10600x900x1560mm |
Dual Trimming System – Equipped with both rough and fine trimming units, this model ensures smooth and accurate shaping of the edge band after gluing and cutting.
High-Speed Motors – Uses two powerful, high-precision motors to drive the trimming cutters, delivering consistent results with minimal vibration.
Adjustable Cutting Depth – Allows easy adjustment according to different edge banding thicknesses (PVC, ABS, veneer, etc.), ensuring flexibility for diverse furniture applications.
Durable Cutting Tools – The trimming blades are made of alloy or diamond-tipped material, providing long service life and clean, sharp edge finishes.
Stable Mechanical Structure – Built with a heavy-duty frame and precision guide rails, ensuring stability, reliability, and accuracy during continuous operation.
Smooth and precise edge finish, eliminating burrs and uneven surfaces.
High efficiency — simultaneous dual trimming greatly reduces manual work and improves productivity.
Easy operation with simple adjustments for different materials and thicknesses.
Strong adaptability — suitable for MDF, chipboard, plywood, and other panel types.
Low maintenance cost with long-lasting mechanical performance and minimal tool wear.
Ideal for small to medium woodworking factories seeking high-quality edge finishing at an affordable price.
