| Brand Name: | BH |
| Model Number: | BHM-45S |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

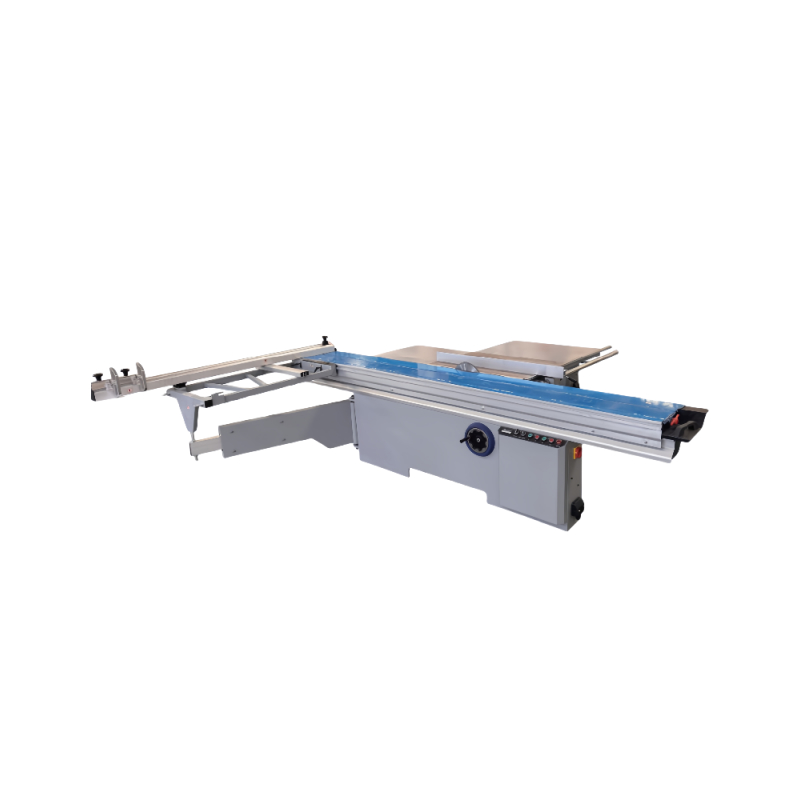

The panel saw is a high-performance sliding panel saw engineered for superior precision and operational efficiency. It maintains a stable working length of 3200mm and supports versatile 0-45° cutting. The machine is powered by a robust 5.5kW main motor and a 1.1kW scoring motor, with saw blade speeds of 4000-6000 RPM and scoring speeds of 7000-8000 RPM, ensuring clean and precise cuts on materials up to 70mm thick. Key upgrades include electric lifting for the main saw and a digital display for accurate angle setting. Built with a heavier, reinforced framework (750kg) featuring 6mm panels and a 16mm top plate, it is designed for demanding industrial applications.
| Table Type | European standard thickened slide table |
| Slide Table Size | 3200 x 375mm |
| Motor Power | 5.5×1.1kw |
| Voltage | 380/220v |
| Digital display | yes |
| Weight | 750kg |
Enhanced Stability & Precision: Features a standard thickened sliding table (3200x375mm) and a heavy-duty machine framework with thicker steel plates (6mm front/rear, 16mm top) for exceptional rigidity and vibration damping.
High-Power Motor System: A 5.5kW main motor paired with a 1.1kW scoring motor delivers powerful, chip-free cuts on a wide range of materials.

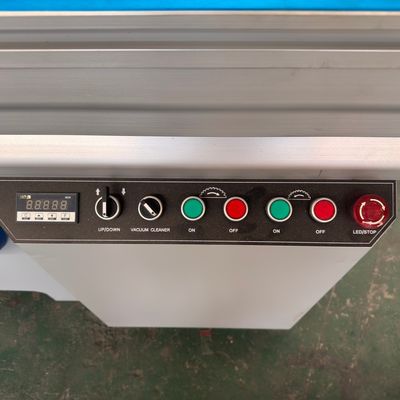

Advanced Operational Features: Equipped with Electric Saw Lifting for quick height adjustment and a Digital Display for precise angle reading from 0-90°, significantly enhancing ease of use and accuracy.
Robust Fencing System: Includes a finely adjustable rip fence with a solid 45mm diameter chrome-plated axis (1500mm usage) and a heavy-duty crosscut fence (1850mm usage) with two flip-stops for repeatable, accurate cuts.
Integrated Dust Extraction: A bottom 150mm vacuum port and a saw blade vacuum hood that follows the shaft effectively contain and remove dust.
Refined User Experience: An improved adjusting handle provides finer control and better hand feel during operation.
Reliable Components: Utilizes Delixi brand electrical appliances for dependable performance.
Product Application
The Panel Saw is built for professional and industrial environments requiring high accuracy and productivity. Its applications include:
High-precision cutting and sizing of sheet materials like MDF, particleboard, plywood, and laminated panels.
Efficient batch production in furniture manufacturing for cabinets, wardrobes, and other case goods.
Fabrication of doors, windows, and architectural components requiring precise miters up to 45°.
Custom woodworking and millwork shops where accurate panel breakdown is critical.
Any industrial setting that demands a robust, reliable, and feature-rich sliding panel saw for daily heavy use.
Details display
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: An instructional video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping and machine price.
