| Brand Name: | BH |
| MOQ: | 1 |
| Price: | 2000-2800USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

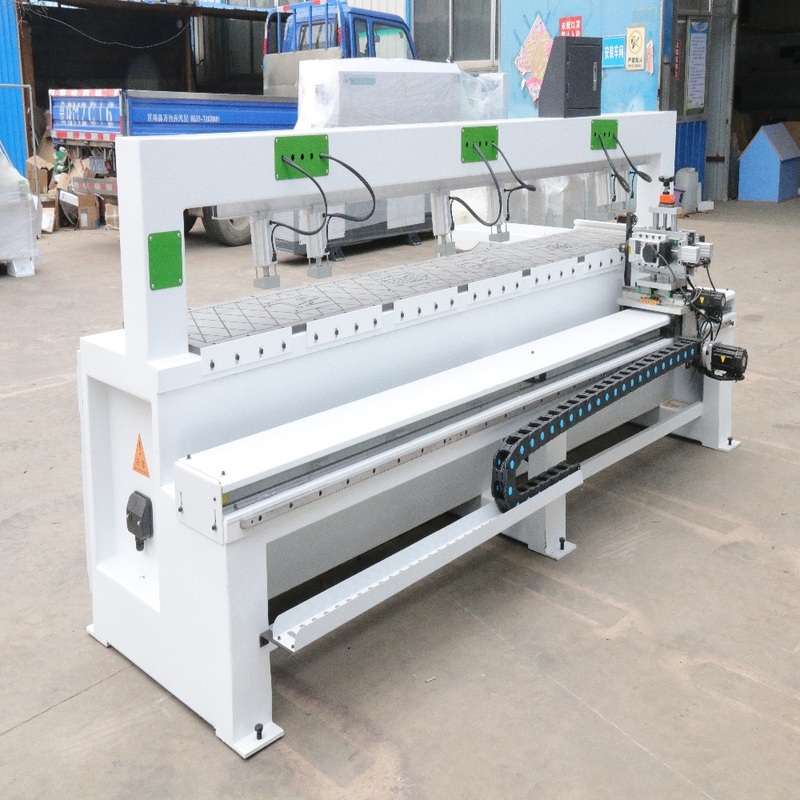

2800mm Automatic Positioning Drilling Side Boring Machine Dual Spindles
Product Overview
The Side Boring Machine is a high-precision, dual-head industrial system engineered for efficient and accurate drilling of side holes. With a substantial working travel of 2800mm within a compact machine footprint of 3300*1100*1200mm, it is designed for processing long workpieces like panels and boards. The machine is powered by two high-speed 2.2kW spindle motors (Akemde/Huajiang brand) running at 18,000 rpm, ensuring clean and fast boring operations. It features a robust 500kg body for stability and utilizes a fixed gantry design. Operation is managed by a specialized Xingte custom control system, which can be integrated with a barcode scanner for automated processing, making it a key component for modern, streamlined production lines.
Configuration parameters
| Equipment size |
3300*1100*1200mm |
| Spindle motor power | 2.2kw |
| Speed |
18000rpm/Min |
| Guide rails | XY three-axis 20 guide rails |
| work surface | PVC carved countertops |
| Bed weight | 500kg |
1.High-Efficiency Dual-Head Design: Two independent 2.2kW spinners operating at 18,000 rpm allow for simultaneous processing on both ends of a workpiece, drastically reducing cycle time and increasing productivity.
2.Precision & Stability: Built with high-quality components, including XY three-axis 20 linear guides and TBI high-performance ball screws, ensuring exceptional positioning accuracy and repeatability over the long 2800mm work travel.
3.Robust Construction: The heavy-duty 500kg welded body and fixed gantry structure provide superior stability and vibration damping, which is critical for maintaining precision during high-speed operation.
4.Automation & Smart Features: Equipped with a barcode scanner for identifying and calling up machining programs automatically, along with laser sensors for precise positioning, enabling seamless integration into automated workflows.

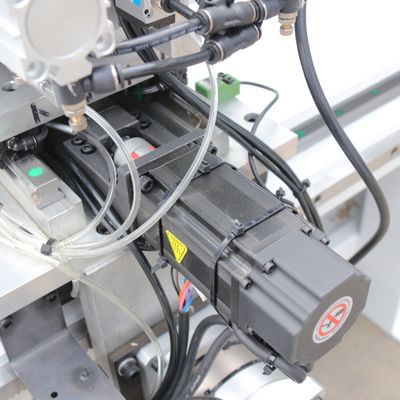

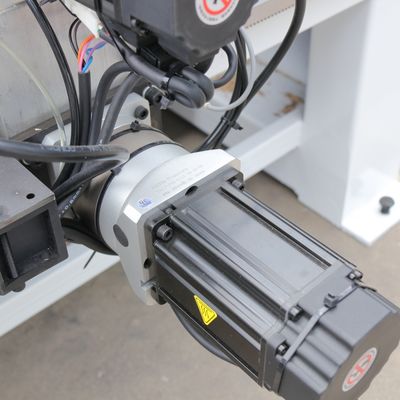

5.Advanced Componentry: Utilizes reputable brands for key components, including Tonghang 750W+400W servo drives, ZhengTai electrical parts, and Airtac pneumatic system, ensuring reliability and longevity.
6.Enhanced Safety & Maintenance: Features custom safety guarding/limit switches, CE-standard wiring, and an automatic centralized lubrication system for operator protection and reduced maintenance downtime.
This Side Boring Machine is ideally suited for automated manufacturing in industries that require precise and efficient drilling on the sides of panels and boards. Its primary applications include:
1.Panel Furniture Manufacturing: For drilling connection holes in cabinets, wardrobes, bookshelves, and other case goods.
2.Door and Window Production: For creating hinge and lock mounting holes in wooden and composite doors/windows.
3.Custom Woodworking: For batch production of items requiring precise side boring, such as custom shelving units and office furniture.
4.Integrated Production Lines: Perfect for CNC machining centers where automated, program-based drilling is required for efficient batch processing.
Details display
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you want to order from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery quantity?
A5: Our minimum order quantity is 1 machine. We can send the machine directly to your country's port. Please let us know your port name. We will provide the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
Q7: If my machine breaks down, can you help me repair it?
A7: Yes. We offer free online training. If your machine has a major problem during the warranty period, we can repair it.
