| Brand Name: | BH |
| Model Number: | BHM START 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
Our edge banding machine is designed for efficient fine trimming of wooden furniture with easy operation. We produce high-quality machines with fast delivery and support full customization including color, LOGO, engine, and air conditioning configurations - available even for single pieces.

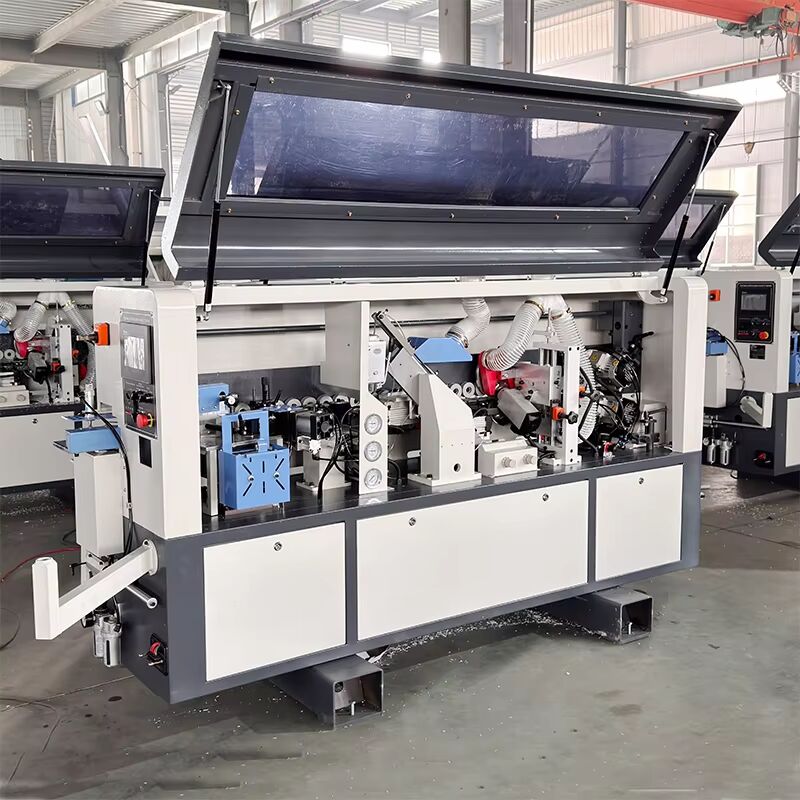

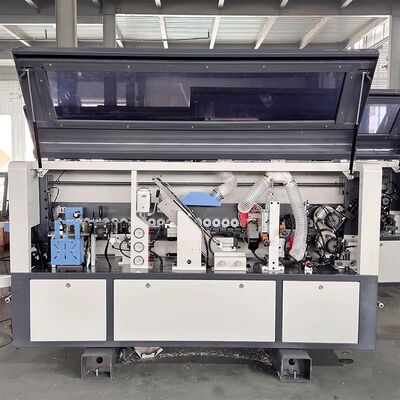

The BHM Start 300 is a high-speed, fully automatic edge banding machine designed for panel shops and small to medium-sized processing factories. It features a user-friendly vertical display control panel and a hand-crank digital display for precise pressure beam height adjustment. Equipped with a large-capacity glue pot for continuous operation, it processes panels in a single pass through a complete cycle: feeding, gluing, pressing, rough trimming, end trimming, corner trimming, heavy-duty dust collection via a large-diameter vacuum system, fine scraping, and polishing. The machine handles board thicknesses from 10-60mm and edge banding materials from 0.3-3mm, with a compact footprint of 3500*750*1500mm.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
High-Speed & Efficient: Operates at a conveyor speed of 18-24 meters/minute, significantly boosting productivity for batch processing.
Fully Automated, Single-Pass Operation: Integrates all essential edge banding steps (gluing, trimming, scraping, polishing) into one continuous, automated process, reducing labor and ensuring consistent quality.
User-Friendly Controls: Features a vertical display control panel and a digital hand-crank for easy and precise adjustment of the pressure beam height.
Designed for Continuous Operation: The large-capacity glue pot minimizes downtime for refills, supporting longer production runs.
Effective Dust Management: Includes a high-capacity, large-diameter vacuum system to maintain a clean working environment during trimming and finishing operations.
Compact & Robust Design: With dimensions of 3500*750*1500mm and a weight of 1000kg, it offers a solid build quality while conserving floor space.
The BHM Start 300 Automatic Edge Banding Machine is ideally suited for:
Small to medium-sized furniture and cabinet manufacturing workshops.
Panel processing shops and custom woodworking businesses.
Batch production of edge-banded panels for shelving, cabinets, tables, and other case goods.
Applying PVC, ABS, wood veneer, or laminate edge banding (0.3-3mm thick) to panels (10-60mm thick) with a minimum board size of 50mm (width) x 70mm (length).
