| Brand Name: | BH |
| Model Number: | BH-73212 |
| MOQ: | 1 |
| Price: | 1100-1800USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

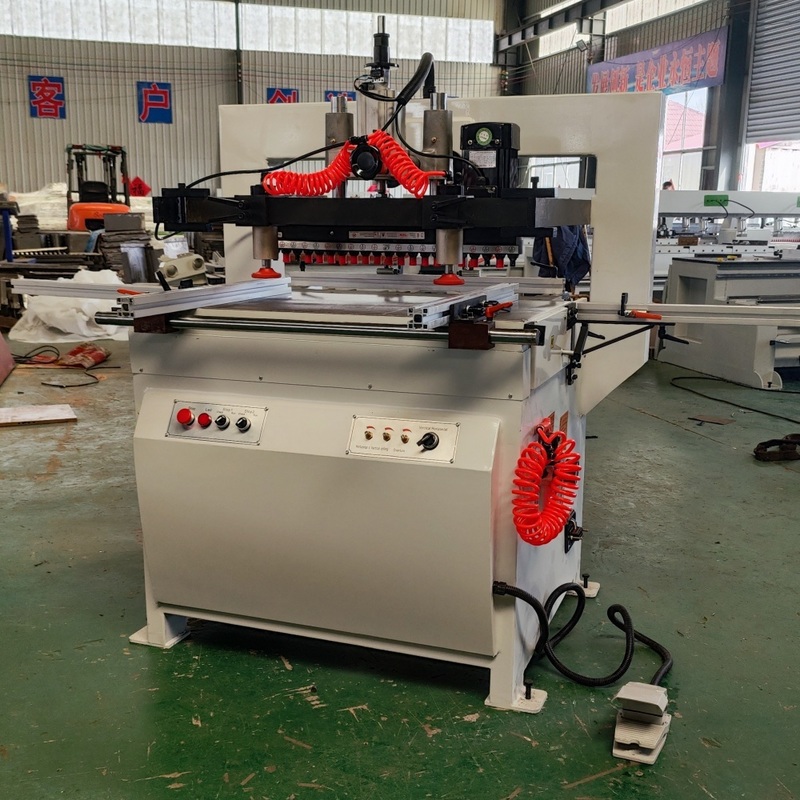

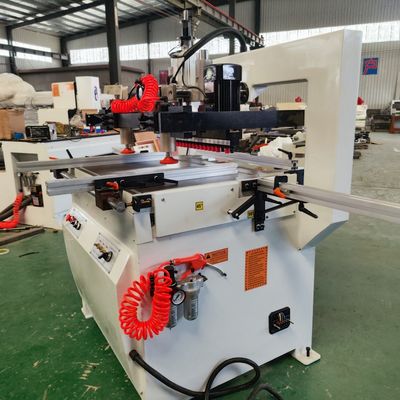

The Double Rows Drilling Machine is a robust and efficient mechanical drilling system designed for furniture manufacturing. Operating on dual 1.5KW motors with a speed of 2840 RPM, it handles standard woodworking drilling tasks with a maximum drill diameter of 35mm and a maximum depth of 60mm. The machine features a versatile design with both vertical and horizontal drilling capabilities, allowing for flexibility in processing. It is a solid, non-CNC (basic non-intelligent) unit built for durability, with a substantial weight of 350kg and dimensions of 2360*1600*1600mm, ensuring stability during operation. It supports both 220V and 380V power inputs.
Product Parameters
| Working space | 2360×1600×1600mm |
| Motor power | 1.5kw*2 |
| Speed | 2840r/min |
| Machining hole spacing | 32-1700mm |
| Number of drill row | 21*2 |
| Maximum drilling depth | 60mm |
Dual-Row & Dual-Orientation Drilling: Equipped for both vertical and horizontal drilling operations, increasing versatility for different workpiece setups and hole patterns.
Robust Construction & Longevity: Built with a heavy 350kg frame for exceptional stability and reduced vibration. Marketed with a core selling point of a long service life, backed by a 1-year warranty.
Simple & Reliable Operation: As a basic, non-CNC mechanical machine, it is straightforward to operate and maintain, making it suitable for workshops without specialized programming skills.
Powerful Drilling Capacity: Dual 1.5KW motors provide ample power for drilling holes up to 35mm in diameter and 60mm deep in wood materials.
Quality Assurance: A mechanical test report and a factory inspection video can be provided, ensuring product quality and performance standards are met.
Product Applications
Drilling hinge mounting holes for cabinet doors and furniture components.
Creating dowel holes for joinery in cabinet boxes, shelves, and other furniture assemblies.
General-purpose hole drilling in wooden panels and boards for various furniture manufacturing steps.
Suitable for small to medium-sized furniture workshops, cabinet shops, and carpentry businesses requiring efficient, repetitive drilling operations.
Details display
Hand WheelCan adjust the working height.
45°AdjustmentIt can adjust working in horzontal ,vertical and 45°
Drill BitsSingle boring machine with21 drill bits.
Pressure CylinderTo insure the panel fixed wellwhen working.
