We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, air conditioning, and other configurations. Custom orders available starting from just 1 piece.

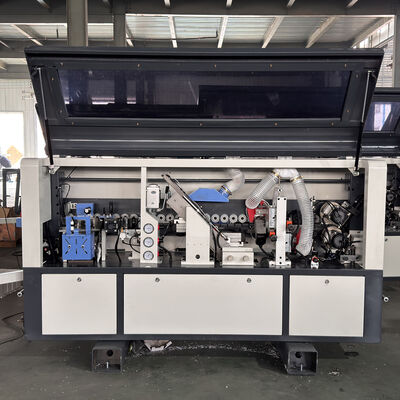

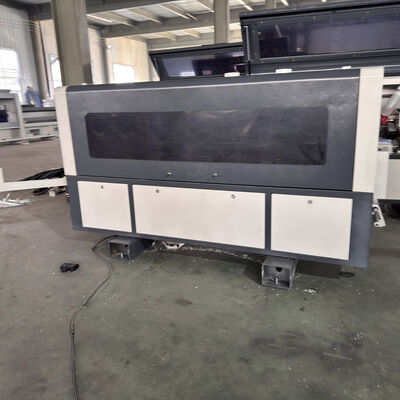

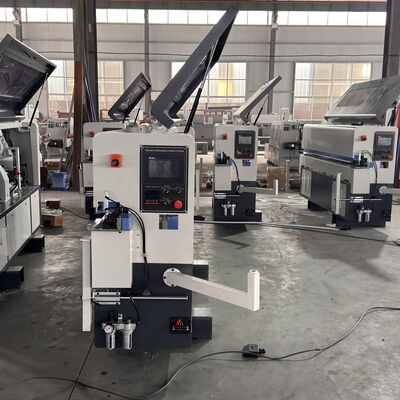

The BHM300 is a high-performance, fully automatic edge banding machine designed for efficiency, precision, and reliability in furniture manufacturing and panel processing. Combining intelligent control with robust construction, it ensures seamless application of edge banding materials from 0.3mm to 3mm thick onto boards ranging from 10mm to 60mm.
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
|---|---|---|---|
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Gluing: Heated glue pot with spiral mechanism ensures even adhesive application and strong bonding.
End Cutting (Trimming): Single-guide rail system accurately trims banding at both board ends.
Fine Trimming: High-speed oblique cutting motor with alloy disc for smooth, flush trimming.
Buffing: Polishes the sealed edge for a superior, smooth finish.
Intelligent Control System
Equipped with a standard PLC and touch-screen interface, the machine operates on a time-control principle for consistent, stable, and safe performance. An encoder ensures precise control of all actions with high responsiveness and low failure rate.
Premium Component Assurance
The BHM300 is built with renowned brand components for durability and performance, including:
PLC & Touch Screen, Sensors (SICK, Honeywell)
Electrical (Schneider)
Motors (High-frequency motor, CC Motor, Conveyor Motor)
Pneumatics (Air Cylinders), Guide Rails, and Frequency Converter
Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.
Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.
Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.
