| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

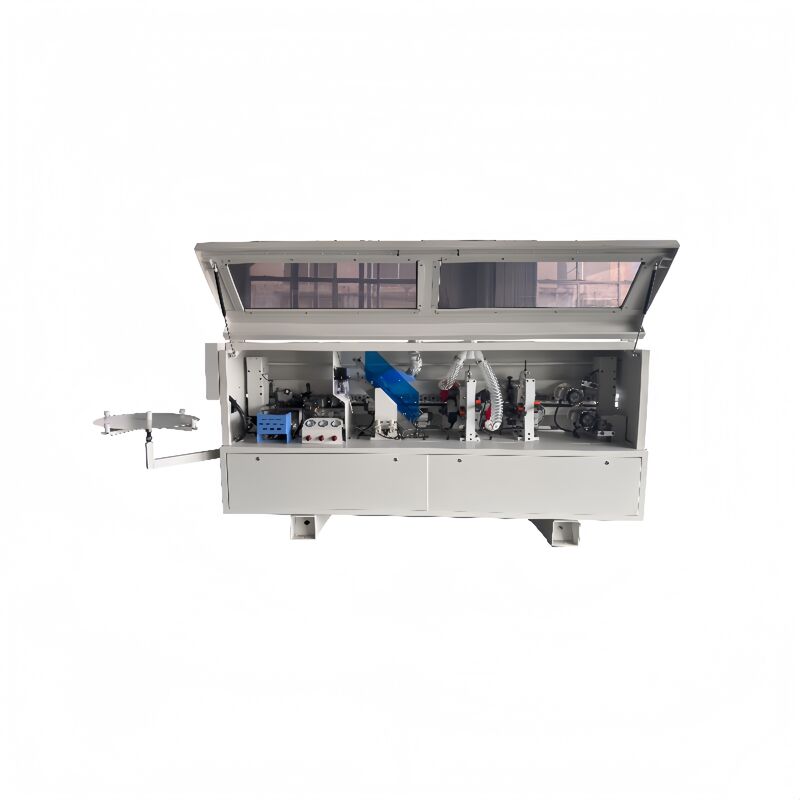

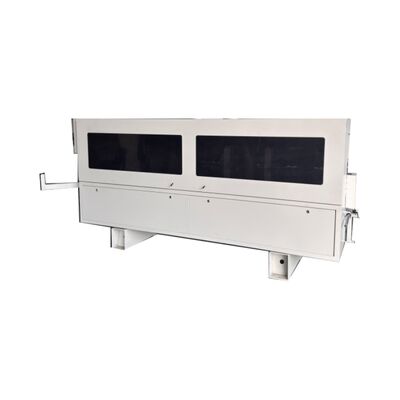

This machine is an automated edge-banding equipment designed for processing various types of board materials. With overall dimensions of 3500mm x 750mm x 1500mm and a weight of approximately 1000kg, it operates on a 380V/50Hz power supply with a total power consumption of 7kW. It handles board thicknesses from 10mm to 60mm and edge banding material thicknesses from 0.3mm to 3mm. The minimum board size it can process is 50mm (width) x 70mm (length). Featuring an adjustable conveyor system with speeds ranging from 18 to 24 m/min, the machine requires a working air pressure of 0.7MPa.
The machine integrates multiple process units—including end cutting, fine trimming, scraping, and buffing—into one complete system. Controlled by an intelligent automation system with an encoder, it ensures high-precision and efficient edge banding operations.
High Level of Process Integration
End Cutting: A single-guide rail system simultaneously trims the board edges at both ends.
Fine Trimming: A high-speed oblique cutting motor with an alloy blade ensures smooth and even trimming; operation is easily adjustable.
Scraping: Eliminates ripple marks from the trimming process, creating a smoother and neater finish on the top and bottom of the edge band.
Buffing: Polishes the edge banding section for an even smoother and more effective final appearance.
Intelligent Control System
Utilizes a standard PLC microcomputer control system based on time-control principles, ensuring great stability and safety.
An encoder controls all machine actions, providing sensitive response and a low failure rate.
Excellent Gluing Performance
The glue tank heats hot-melt adhesive and uses a spiral structure to apply glue evenly, guaranteeing strong and reliable adhesion.
Strong Adaptability
Accommodates a wide range of board sizes and thicknesses.
Adjustable conveyor speed allows adaptation to different production paces.
Product Applications
This machine is suitable for the furniture manufacturing, cabinet production, and interior decoration industries, specifically for edge-banding processing of various boards, such as:
Solid wood, particle board, MDF, and plywood.
Furniture edges, decorative moldings, and trim.
Custom furniture, office furniture, kitchen and bathroom cabinets.
With its high efficiency, precision, and user-friendly operation, this machine significantly improves both the quality of edge banding and overall production efficiency.
Detailed images

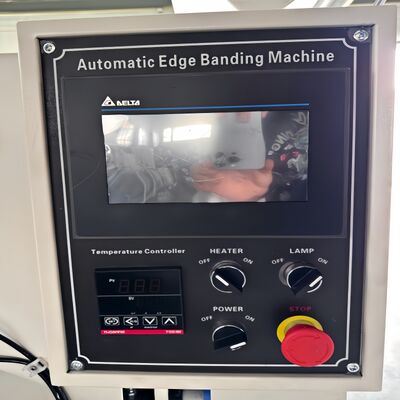

Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.
Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
