| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

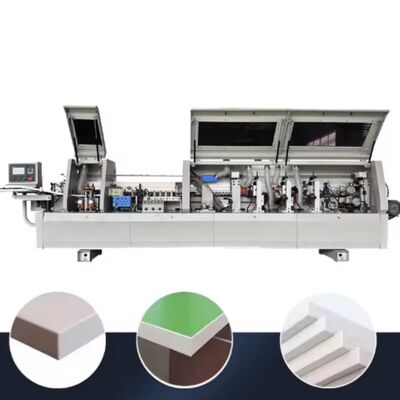

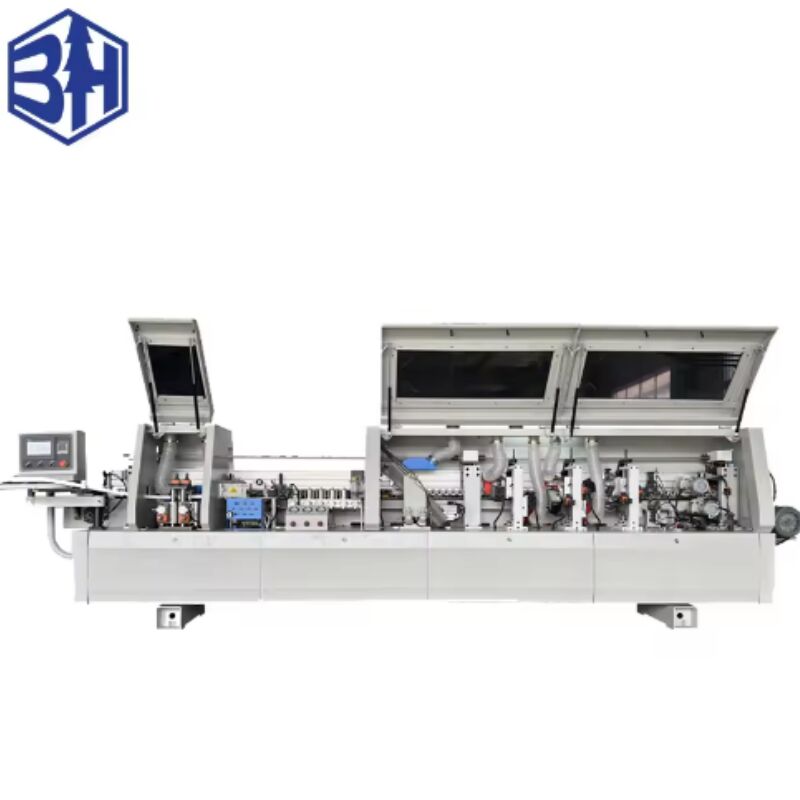

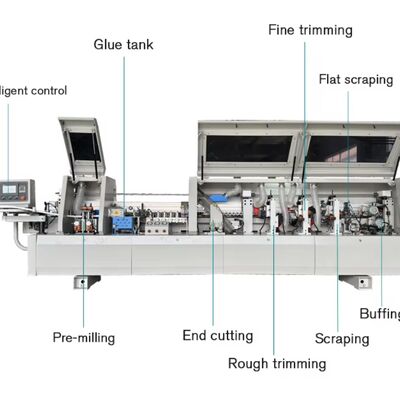

This Edge Banding Machine is designed for edge banding processing of board materials, ideal for panel shops and small-scale workshops. It features a vertical display control panel and a hand-crank digital pressure beam height adjustment system for intuitive operation. Equipped with a large-capacity glue pot, it enables continuous edge banding. The machine integrates multiple processes—including glue application, pressing, rough trimming, end cutting, corner trimming, large-diameter dust collection, secondary scraping, and polishing—into one seamless workflow, allowing boards to be finished in a single pass.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
1. Intelligent Control System
Utilizes a standard PLC microcomputer control system based on time-control principles, ensuring high stability and safety.
An encoder controls all machine actions with sensitive response and low failure rate.
2.Highly Integrated Process
Combines multiple functions: end cutting, fine trimming, scraping, and polishing in one machine for efficient one-pass processing.
High-speed oblique cutting motor with an alloy blade ensures smooth and stable trimming; operation is easily adjustable.
Dual-track pre-trimming assist system handles boards with complex grain, burrs, or non-vertical edges for better sealing quality.
3.Reliable Gluing System
Large-capacity glue pot with a spiral glue absorption structure ensures even adhesive application and strong bonding.
Supports continuous operation, suitable for batch production.
4.User-Friendly Design & Adaptability
Vertical control panel and digital hand-crank pressure adjustment make operation simple and intuitive.
Capable of processing a wide range of board sizes, ideal for small-batch and customized production.
5.Comprehensive After-Sales Support
Provides 1-3 years of product service support, with fast air freight available for spare parts.
Pre-delivery testing ensures machine quality and reliability.
Assistance with on-site testing, free promotional support in your region, and customization services.
This machine is suitable for the following industries and scenarios:
1.Furniture Manufacturing: Edge banding for cabinets, wardrobes, office furniture, interior doors, etc.
2.Custom and Small-Batch Production: Ideal for panel shops, small furniture factories, and decoration companies.
3.Various Board Types: Solid wood, particle board, MDF, plywood, etc.
4.Compatible Edge Materials: PVC, ABS, wood veneer, acrylic, etc., with thickness ranging from 0.3–3 mm.
With its high efficiency, stability, and ease of use, this machine is especially suitable for small and medium-sized enterprises looking to improve edge banding quality and production efficiency, while benefiting from reliable after-sales support and customization options.
Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
