| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

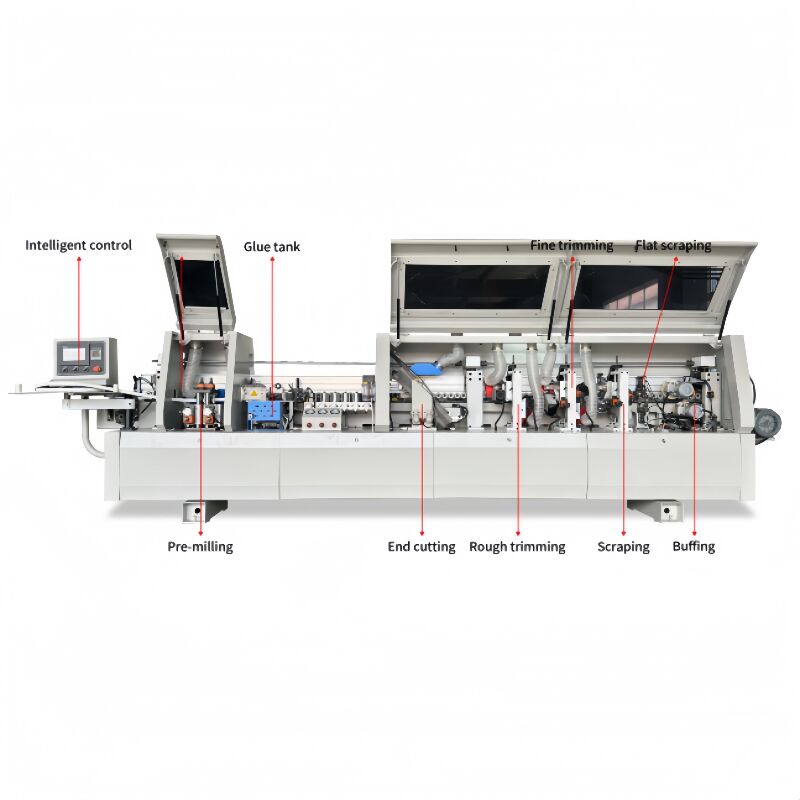

The Edge Banding Machine is an intelligent edge processing system designed for panel furniture, custom cabinetry, and small to medium-sized woodworking workshops. Featuring an integrated vertical touch control panel and a hand-crank digital pressure adjustment system, it supports fully automated operations—from board feeding, hot-melt gluing, precision trimming, end cutting, to high-power dust extraction, secondary scraping, and polishing—enabling “one-pass board finishing” with continuous, efficient production.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |

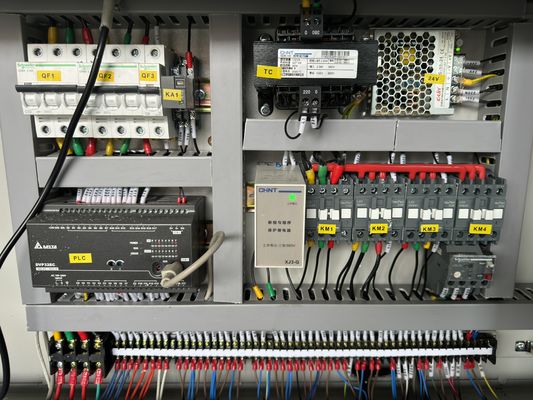

Equipped with a PLC-based microcomputer control system and integrated encoder for precise motion control, ensuring responsive operation and low failure rates.
Time-based control logic enhances system stability and safety.
Gluing System: Hot-melt glue pot with screw/suction structure for even adhesive application and strong bonding.
Cutting System: High-speed oblique cutting motor paired with alloy blades for smooth trimming; dual-track pre-trimming function accommodates complex grain or non-vertical cuts.
End-Cutting System: Single-guide rail ensures precise, synchronized trimming at both board ends.
Vertical control panel with hand-crank digital pressure adjustment offers intuitive operation and fine-tuning.
Customizable in function and structure to meet specific production needs.
Large-capacity glue pot supports uninterrupted, long-duration operation, ideal for batch production.
1–3 years warranty and after-sales support available, with express air freight for critical spare parts.
Full pre-delivery testing provided, along with local promotion and website marketing assistance.
This machine is suitable for the following industries, product types, and materials:
| Industry | Product Types | Suitable Panel Materials |
|---|---|---|
| Custom Furniture Manufacturing | Cabinets, wardrobes, TV units, bookshelves | Particleboard, MDF, plywood, eco-friendly boards |
| Decoration & Display Fixtures | Interior doors, decorative wall panels, display cabinets, counters | Fireproof boards, acrylic composite panels |
| Office & Commercial Furniture | Office partitions, hotel furniture, retail displays | Blockboard, OSB |
| Small/Medium Workshops & Studios | Custom wood products, prototyping | Veneered panels, solid wood edge-banded boards |
This machine is particularly suitable for small to medium-sized factories and custom furniture manufacturers that prioritize edge banding efficiency, precision, and automation, significantly improving production capacity and product consistency.

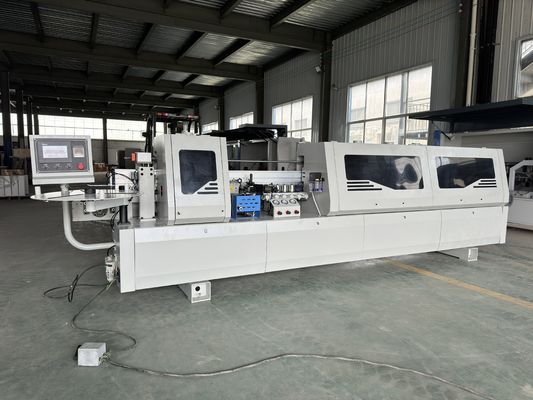

Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
