| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

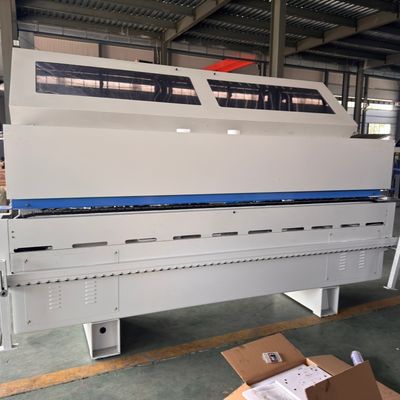

This is a fully automatic edge banding machine designed for professional panel edge processing. It is suitable for panels with a thickness of 10–60 mm, a minimum width of 50 mm, and a minimum length of 70 mm. The machine dimensions are 3500 × 750 × 1500 mm, with a total weight of 1000 kg. It operates on 380V/50Hz industrial voltage, with a total power of 7 kW and a working air pressure of 0.7 MPa. Equipped with an adjustable conveyor system running at 18–24 m/min, it can handle edge banding materials with thicknesses ranging from 0.3 to 3 mm, providing integrated edge processing from end cutting, fine trimming, scraping, to buffing.
High Precision Machining: Single-guide end cutting system ensures clean cuts on both panel ends; high-speed oblique cutting motor with alloy disc enables smooth and even trimming with convenient adjustment.
Excellent Surface Finish: The scraping unit removes ripple marks from trimming, making the upper and lower edges smoother and neater; buffing further enhances the smoothness and appearance of the edge section.
Intelligent and Stable Control: Encoder and PLC-based microcomputer control system ensures sensitive response and low failure rate. Time-based control principles enhance operational stability and safety.
Uniform and Strong Glue Application: Spiral glue coating structure with heated glue tank ensures even adhesive distribution and strong bonding for reliable edge attachment.
High Adaptability: Supports a wide range of panel sizes and edge banding thicknesses, suitable for precise edge banding of small to medium-sized panels.
Product Applications
Suitable for edge banding processes in furniture manufacturing, custom cabinets, interior decoration panels, office furniture, wooden doors and windows, and other fields requiring high precision, superior surface quality, and strong adhesive performance in edge finishing.
Detailed images
Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.
Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
