Woodworking Machinery Automatic Edge Banding Machines Manufacturers

Woodworking Machinery Automatic Edge Banding Machines Manufacturers

Brand Name:	BH
Model Number:	468YJ
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	2000Units/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Minimum Width:

50mm

Minimum Length:

70mm

Operating Air Pressure:

0.7Mpa

Edge Banding Thickness:

0.3~3mm

Dimension:

6600*900*1600mm

Weight:

2600kg

Packaging Details:

6690*990*1690mm

Highlight:

automatic edge banding machine for woodworking

industrial edge banding machine manufacturers

woodworking edge banding machine with warranty

Product Description

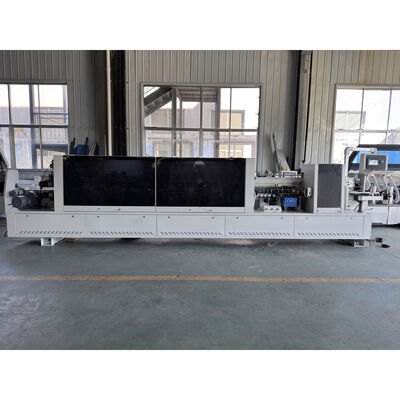

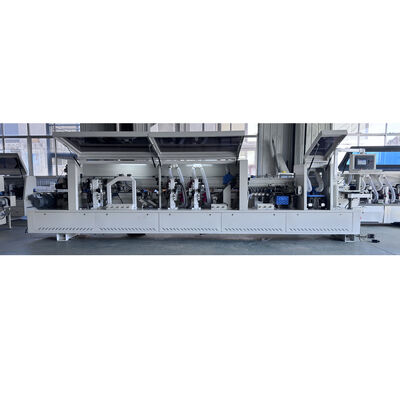

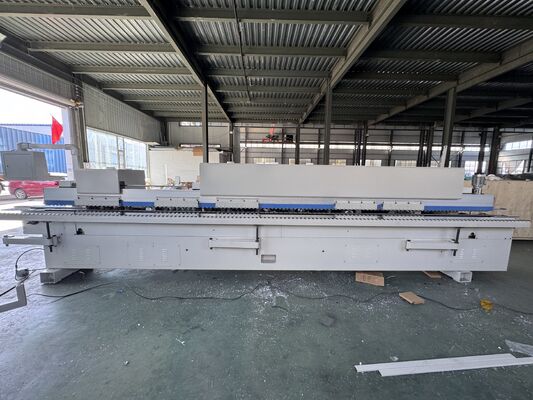

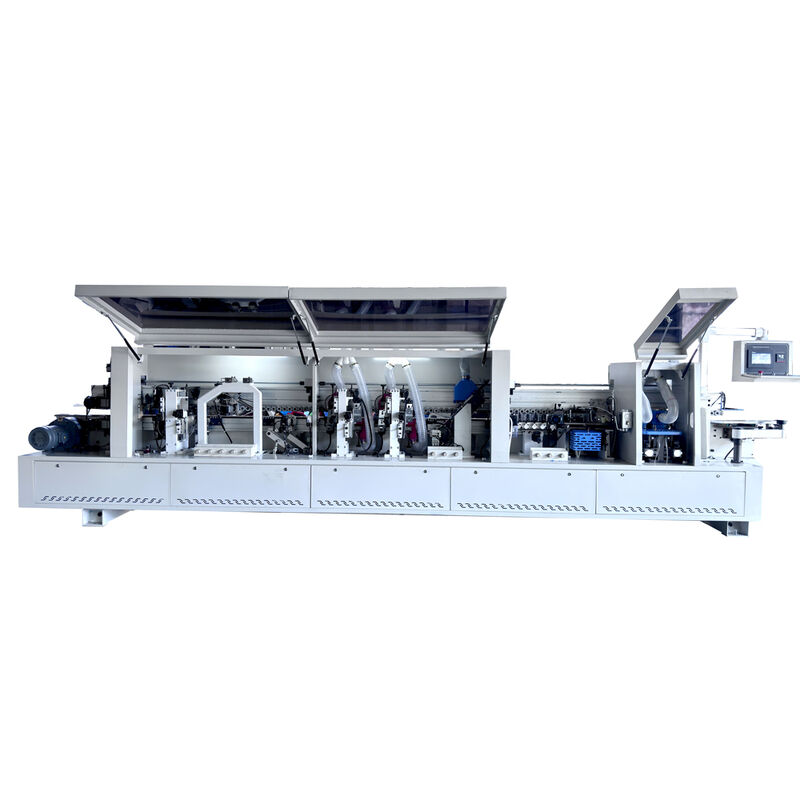

Woodworking Machinery Automatic Edge Banding Machine

Our automatic edge banding machine is a high-performance solution designed for seamless application of decorative and protective bands onto panel edges in woodworking and furniture manufacturing. Engineered for precision and efficiency, it processes panels made of wood, MDF, and particleboard, delivering smooth, durable finishes that significantly enhance both aesthetic appeal and product longevity. The machine supports a wide range of edge materials—including PVC, melamine, wood veneer, and acrylic—utilizing adhesive, heat, and pressure mechanisms to ensure a secure, lasting bond.

Key Features

The machine integrates a fully automated workflow, beginning with a glue tank system that heats hot-melt adhesive and evenly coats the edge material via a spiral applicator, guaranteeing strong adhesion. It then performs precise end-cutting through a single guide rail system, trimming excess material at both panel ends. This is followed by a two-stage trimming process: rough trimming minimizes breakage and acts as a leveling phase for materials like PVC and acrylic, reducing wear on subsequent tools; fine trimming employs a high-speed oblique cutting motor with an alloy disc for a perfectly smooth and even finish. All operations are adjustable, ensuring flexibility across different material thicknesses and profiles.

Technical Specifications

Specification	Value
Outline Dimension	6600×900×1600mm
Machine Weight	2600kg
Working Voltage	380V/50Hz
Total Power	17.9kw
Plate Thickness	10-60mm
Conveyor Speed	18-24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7Mpa
Edge Banding Thickness	0.3-3mm

Operational Advantages

This edge bander ensures precision application with uniform material distribution, resulting in consistent high-quality finishes. Automated operation substantially boosts production throughput while reducing reliance on manual labor. Its compatibility with various edge materials—from PVC and veneer to melamine—offers exceptional versatility for diverse design requirements. The sealed edges provide enhanced protection against moisture, dust, and physical impact, extending product lifespan. Additionally, the machine improves aesthetics with clean, seamless edges and supports customization in thickness, texture, and finish (glossy, matte, etc.), all while minimizing material waste to lower operational costs.

Industry Applications

Ideal for furniture manufacturing—such as cabinets, tables, and chairs—as well as woodworking applications including doors, panels, and shelving. It is equally suited for interior design projects (wardrobes, desks, storage units), professional cabinet making, custom woodworking, engineered wood (MDF/particleboard) processing, and acrylic or plastic finishing for signage and displays.

Combining robust construction with intelligent design, this automatic edge banding machine is a reliable asset for workshops and production lines aiming to achieve efficiency, consistency, and superior edge finishing.

Frequently Asked Questions

What is an edge banding machine?

An edge banding machine is a woodworking tool used to apply edge materials--such as PVC, ABS, veneer, or melamine--to the raw edges of furniture panels, improving their appearance and durability.

What materials can the machine work with?

It can be used with various materials, including MDF (Medium Density Fiberboard), particleboard, plywood, solid wood panels, and acrylic or laminated boards. The edge banding can also vary in type and thickness, depending on your production needs.

What types of edge banding machines are available?

Common types include manual edge banding machines for small workshops, semi-automatic machines combining manual feeding with automatic gluing and trimming, fully automatic machines for industrial production lines, CNC edge banding machines for maximum precision, and laser edge banding machines for seamless, glue-free finishing.

What is the working process of an edge banding machine?

The process includes pre-milling to clean and smooth the panel edge, gluing to apply adhesive, banding to attach the band, end cutting to trim excess material, fine trimming for smooth edges, and scraping and buffing for a professional finish.

What kind of glue is used in edge banding?

Typically, EVA (Ethylene Vinyl Acetate) or PUR (Polyurethane Reactive) hot-melt adhesives are used. EVA glue is economical and easy to use, while PUR glue offers stronger bonding and higher resistance to heat and moisture, ideal for high-end applications.
