| Brand Name: | BH |
| Model Number: | 668YJ |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000Units/Year |

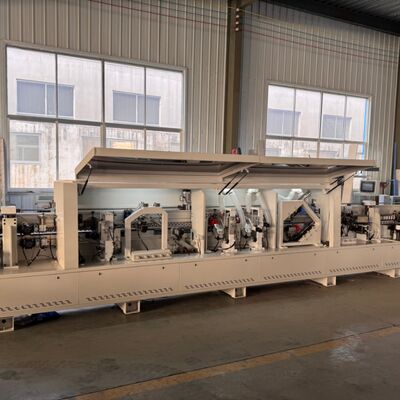

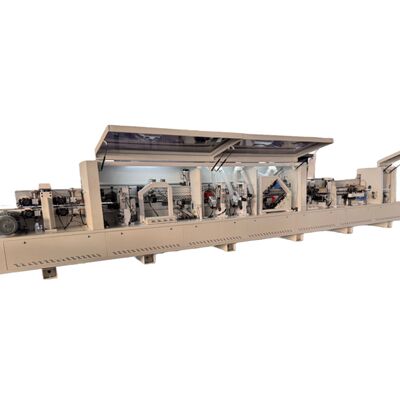

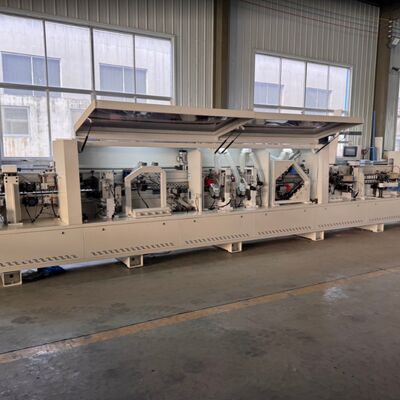

At its core, this edge bander features a dual-head synchronized feeding system that ensures perfect alignment and pressure control for both straight and curved edges. The machine’s proprietary adaptive pressure regulation dynamically adjusts based on material density and thickness, eliminating common issues like glue bleed, uneven bonding, or edge lifting — problems that plague conventional machines. With a maximum processing speed of 25 meters per minute, it outperforms industry standards while maintaining sub-millimeter precision.
| Specification | Numerical values |
|---|---|
| Outline Dimension | 10580×960×1600mm |
| Machine Weight | 4800kg |
| Working Voltage | 380V/50Hz |
| Total Power | 25kw |
| Plate Thickness | 10-60mm |
| Conveyor Speed | 18-24m/min |
| Minimum Width | 50mm |
| Minimum Length | 70mm |
| Operating Air Pressure | 0.7Mpa |
| Edge Banding Thickness | 0.3-3mm |
Regarding shipping and deployment, the machine is shipped in pre-assembled modules to minimize on-site installation time. Each unit undergoes rigorous factory testing and is packaged with shock-absorbing materials to ensure safe transit. Standard lead time is 3–4 weeks from order confirmation, with express shipping options available for urgent projects. We offer global logistics support, including customs clearance assistance and on-site commissioning by certified technicians.
Backed by a 12-month warranty and 24/7 remote diagnostics support, with annual maintenance visits (included for the first 1 year) to calibrate motors and replace wear parts. A 1-year warranty covers all components, and a “priority parts” program ensures replacement components are shipped within 24 hours. This edge banding machine is not just a tool — it’s a strategic investment in your production’s future. Ideal for furniture manufacturers, cabinet shops, and contract woodworkers seeking to scale operations without compromising on quality.
Packaging: Each unit is wrapped in anti-static film and secured in a climate-controlled plywood crate (220×100×1700cm) with temperature/humidity sensors to protect sensitive components (e.g., the control system) during long-haul transit.
Would you like me to expand this version with case studies of luxury furniture projects using this machine?
