| Brand Name: | BH |
| Model Number: | BHM 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 3000Sets/Year |
We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, and other configurations. Custom orders available starting from just 1 piece.

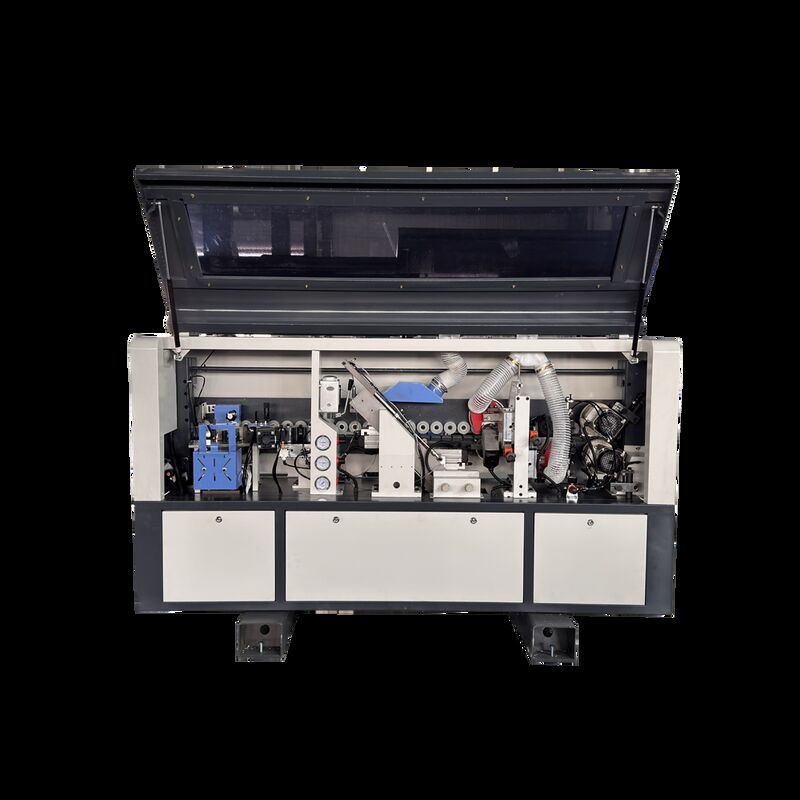

The BHM300 edge banding machine is designed for high-performance, precision finishing of panel edges in woodworking and furniture manufacturing. Combining intelligent control with robust engineering, it ensures seamless, strong, and consistent edge application for a wide range of materials and thicknesses.
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
|---|---|---|---|
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
ntelligent Operation & Control

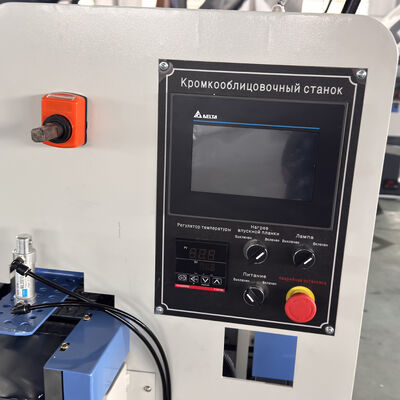

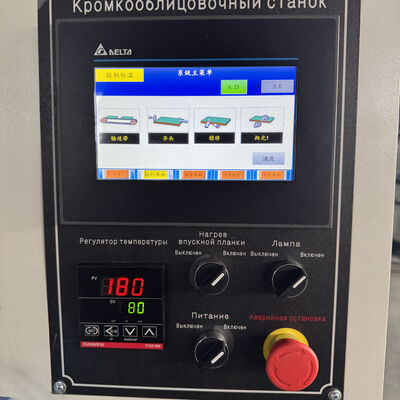

Equipped with a standard PLC microcomputer control system, the BHM368F uses time-based logic to enhance stability, repeatability, and safety. An integrated encoder ensures smooth, responsive coordination of all machine functions, minimizing downtime and maintenance.

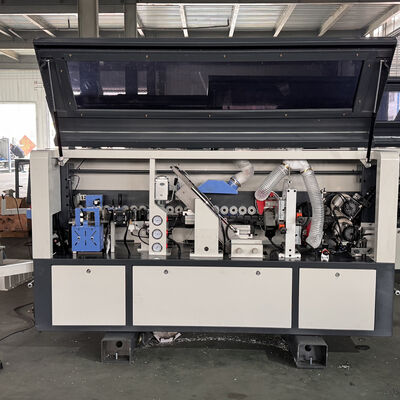

Complete Edge Banding Process
From glue application to final polishing, this machine covers every stage with precision:
Glue Tank: Heats and evenly applies hot melt adhesive via a spiral mechanism for reliable bonding.
End Cutting: Single-guide rail system ensures clean trimming at both board ends.
Fine Trimming: High-speed oblique cutting motor with alloy disc delivers smooth, flush edges.
Scraping: Removes wave marks for uniform upper and lower edge surfaces.
Buffing: Polishing unit enhances edge smoothness and finish quality.
Premium Component Assurance
The BHM300 is built with renowned brand components for durability and performance, including:
PLC & Touch Screen, Sensors (SICK, Honeywell)
Electrical (Schneider)
Motors (High-frequency motor, CC Motor, Conveyor Motor)
Pneumatics (Air Cylinders), Guide Rails, and Frequency Converter
Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.
Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.
Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.
