| Brand Name: | BH |
| Model Number: | BH-73212 |
| MOQ: | 1 |
| Price: | 1100-1800USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

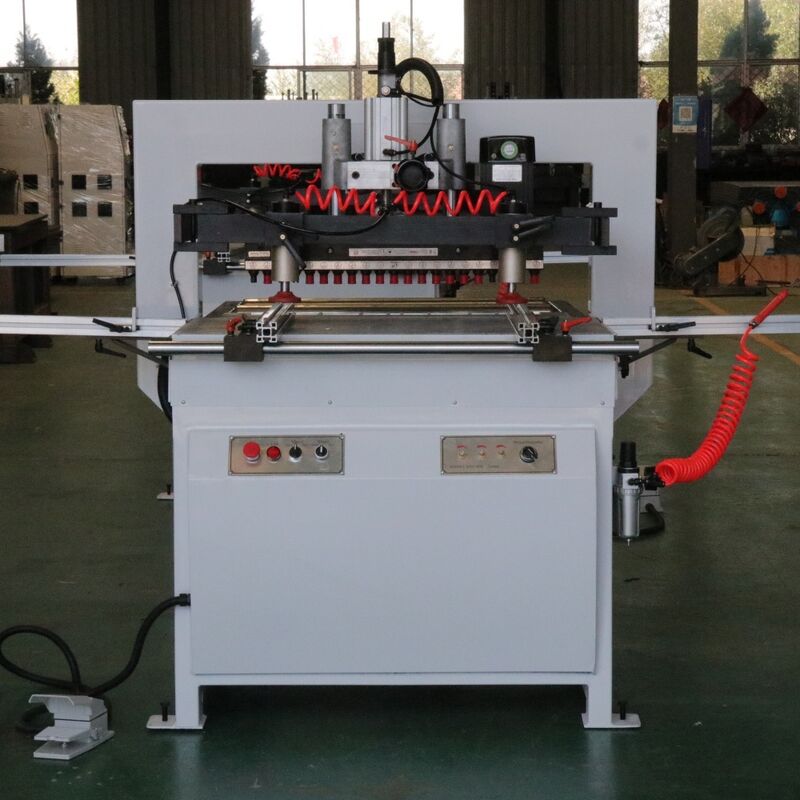

The Multi-Row Drilling Machine is a specialized woodworking or panel processing tool designed for high-efficiency, multi-hole drilling in large panels. It features a dual-motor system (1.5 kW × 2) and is capable of drilling up to 42 holes in a single pass across two rows, with a maximum drilling diameter of 35 mm and depth of 60 mm. With a fixed hole spacing pattern of 32 × 1700 mm and a high spindle speed of 2840 RPM, this machine is optimized for precision and productivity in furniture manufacturing, cabinetry, and modular construction applications. Its compact yet robust design, with a working space of 2360 × 1600 × 1600 mm, makes it suitable for workshops and production lines.
Product Parameters
| Working space | 2360×1600×1600mm |
| Motor power | 1.5kw*2 |
| Speed | 2840r/min |
| Machining hole spacing | 32-1700mm |
| Number of drill row | 21*2 |
| Maximum drilling depth | 60mm |
High Production Efficiency
Drills up to 42 holes simultaneously (21 holes × 2 rows), significantly reducing processing time per panel.
Fast spindle speed of 2840 RPM ensures quick and clean drilling cycles.
Precision and Consistency
Fixed hole spacing of 32 × 1700 mm ensures accurate and repeatable hole patterns, ideal for batch production.
Stable design with a weight of 350 kg minimizes vibration and maintains alignment during operation.
Powerful and Reliable Performance
Dual 1.5 kW motors provide ample torque for drilling into various materials including wood, MDF, and particleboard.
Capable of drilling holes up to 35 mm in diameter and 60 mm in depth, suitable for dowel, hardware, and ventilation applications.
Compact and Ergonomic Design
Working space dimensions (2360 × 1600 × 1600 mm) allow it to fit into most workshop layouts without occupying excessive floor area.
User-friendly setup for panel positioning and alignment.
Durable Construction
Heavy-duty build (350 kg) ensures long-term stability and accuracy under continuous use.
Product Applications
Furniture Manufacturing – Ideal for drilling dowel and connector holes in cabinet frames, shelving units, tables, and modular furniture systems.
Kitchen and Bathroom Cabinetry – Used for precise hole drilling for hinges, handles, shelf pins, and assembly fittings.
Door and Window Frame Production – Suitable for drilling for hardware installation and joinery in wooden frames.
Interior and Exhibition Construction – Applicable in creating ventilated panels, display systems, and partition walls requiring systematic hole patterns.
Woodworking Workshops and Custom Production – Supports small to medium batch production with consistent hole spacing and depth control.
Details display
Hand WheelCan adjust the working height.
45°AdjustmentIt can adjust working in horzontal ,vertical and 45°

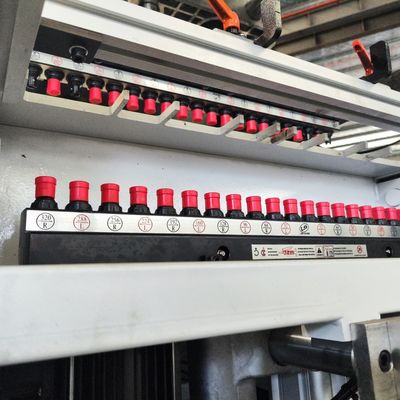

Drill BitsSingle boring machine with21 drill bits.
Pressure CylinderTo insure the panel fixed wellwhen working.
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services. Q7: If my machine breaks down, can you help me repair it?
