Product Overview

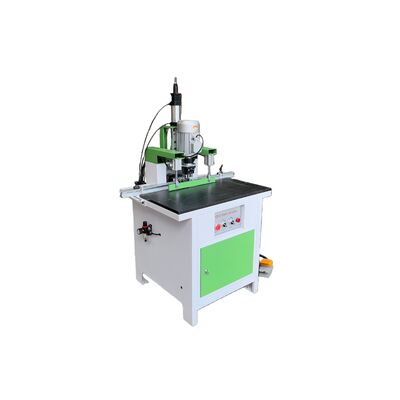

The BH6415 vertical-horizontal drill is a specialized woodworking (or light metal-processing) machine designed for precise drilling operations in both vertical and horizontal orientations. It is widely used in furniture manufacturing, cabinetry production, and small-scale industrial workshops, as it combines versatility, efficiency, and ease of operation in a compact, standalone structure (as shown in the images: a tabletop-style frame with an integrated control panel and storage cabinet).

 Parameters

Product Advantages

• Dual-Drilling Capability: The most prominent feature is its ability to perform both vertical and horizontal drilling (the drill head assembly, visible in the close-up images, can adjust angles or switch between orientations via its modular design). This eliminates the need for multiple single-function machines, saving workspace and cost.
• Precision & Stability:

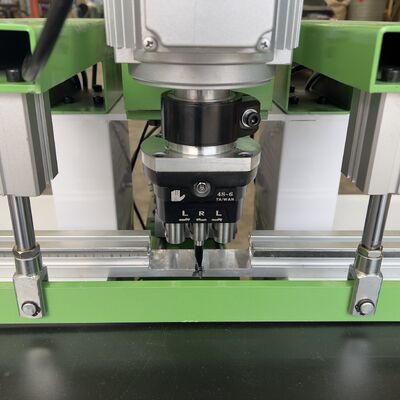

  • Equipped with a Taiwan-manufactured drill chuck (marked "48.6 TAIWAN") and guide rods (the silver cylindrical components flanking the drill head), ensuring minimal vibration and high drilling accuracy (e.g., consistent hole depth/diameter for joinery like doweling).
  • The worktable (black, anti-slip surface) and linear guide rails (on the table’s edges) allow smooth, precise positioning of workpieces.


• User-Friendly Operation:
  • A foot pedal (yellow/grey, connected to the machine) enables hands-free control of drilling cycles, improving safety and efficiency when handling large workpieces.
  • The control panel (with emergency stop buttons, speed-adjustment knobs, and power switches) simplifies parameter setup (e.g., adjusting drill speed for different materials like solid wood or MDF).


• Durable & Compact Design:
  • The frame uses a steel structure (painted white/green) for durability, while the integrated storage cabinet (green door) provides space for drill bits or tools.
  • Its standalone, tabletop-sized structure (suitable for workshop floors or production lines) balances portability and stability.


• Safety Components:
  • Emergency stop buttons (red, on the control panel) and a micro switch (labeled "V-155-1C25") (visible in the close-up of the drill head assembly) prevent accidental operation or over-travel of the drill head, reducing workplace hazards.

Functions

• Multi-Orientation Drilling: Performs vertical drilling (for surface holes) and horizontal drilling (for side holes, e.g., in cabinet panels or door frames) without reconfiguring the machine.
• Adjustable Drilling Parameters:
  • Speed adjustment (via control panel knobs) accommodates different materials (e.g., higher speeds for softwood, lower speeds for hardwood).
  • Drill depth can be set via the micro switch and adjustment knobs (on the drill head), ensuring consistent hole depths across batches.


• Batch Processing: The stable worktable and foot pedal control enable efficient repetition of drilling tasks, making it suitable for small-to-medium production runs (e.g., drilling multiple dowel holes for furniture frames).

Transportation

• Handling: The machine (approx. 100–150 kg, typical for this model) should be lifted using a forklift (as suggested by the forklift in the background images) or a pallet jack, with straps securing the frame to prevent tipping. The drill head and control panel should be protected from impacts during movement.
• Logistics: It is typically transported as a single unit (or disassembled into the main frame and drill head for long-distance shipping) on a wooden pallet. Shippers must label the package with "Fragile" and "Handle with Care" to alert carriers to avoid rough handling of precision components (e.g., the drill chuck or guide rails).




  Packaging



  • Standard Packaging: For factory delivery, the machine is wrapped in stretch film to protect against dust, then encased in a plywood crate (or corrugated cardboard for local transport) with foam padding around the drill head, control panel, and foot pedal. This prevents scratches, dents, or damage to electrical components (e.g., the micro switch or wiring).
  • Custom Packaging: For international shipping, it may include moisture-absorbent desiccants inside the crate to protect metal parts from corrosion, and the crate is reinforced with metal bands to withstand rough handling during transit.

  In summary, the BH6415 vertical-horizontal drill is a versatile, precise, and user-friendly machine ideal for woodworking and light industrial drilling tasks. Its dual-orientation capability, safety features, and compact design make it a practical choice for workshops, while its robust packaging and transport protocols ensure it arrives in operational condition.
