Fully Automatic Edge Banding Machine Offering Accurate Edge Gluing and Trimming for Professional Woodworking Projects

Name: Fully Automatic Edge Banding Machine Offering Accurate Edge Gluing and Trimming for Professional Woodworking Projects
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 388YJ
Price: 7000 USD
Availability: InStock

Brand Name:	BH
Model Number:	388YJ
MOQ:	1
Price:	$7000
Payment Terms:	T/T
Supply Ability:	3000Units/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Name:

Edge Banding Machine

Size:

5000*750*1500mm

Working Voltage:

380V/50Hz

Total Power:

13.5kw

Conveyor Speed:

18~24m/min

Working Pressure:

0.7MPa

Thickness:

0.3~3mm

Minimum Length Of Board:

70mm

Packaging Details:

5100*850*1600mm

Highlight:

fully automatic edge banding machine

edge banding machine with trimming

professional woodworking edge gluing machine

Product Description

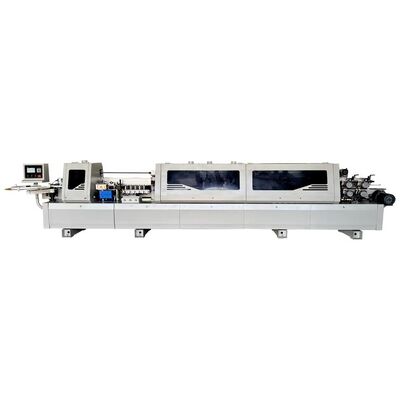

Fully Automatic Edge Banding Machine

Professional-grade edge banding solution for accurate edge gluing and trimming in woodworking projects

Product Overview

Transform raw panels into finished products with professional-grade edges using the BHM388YJ, a fully integrated edge banding solution from Baihang Machinery. Engineered for workshops focused on quality and throughput, this machine seamlessly applies and finishes edge materials in one continuous, automated pass, ensuring consistent results for furniture, cabinetry, and interior components.

Key Features

Dimensions: 6700 x 750 x 1500 mm | Weight: 2000 kg
Power Supply: 380V/50Hz | Total Power: 15.8 kW | Air Pressure: 0.7 MPa
Conveyor Speed: 18–24 m/min
Processing Range: Board Thickness: 10–60 mm | Edge Band Thickness: 0.3–3 mm
Min. Board Size: 50 mm (width) x 70 mm (length)

Powered by a standard PLC microcomputer and enhanced with responsive encoder feedback, this machine offers remarkable operational stability and ease of use. The intelligent control system not only simplifies setup and adjustment but also significantly boosts safety and repeatability, run after run.

Ideal for manufacturers seeking to elevate their finish quality while optimizing workflow, the BHM388YJ Edge Banding Machine is your partner for achieving efficient, professional, and impeccable edges on every project.

Technical Specifications

Parameter	Value	Parameter	Value
Outline dimension	50007501500mm	Conveyor speed	18~24m/min
Machine weight	1500KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	13.5KW	Working pressure	0.7Mpa
Plate thickness	10~60mm	Edge banding thickness	0.3~3mm

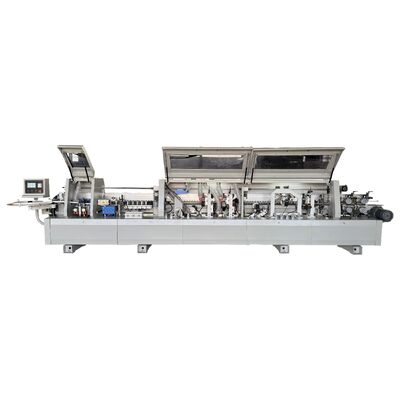

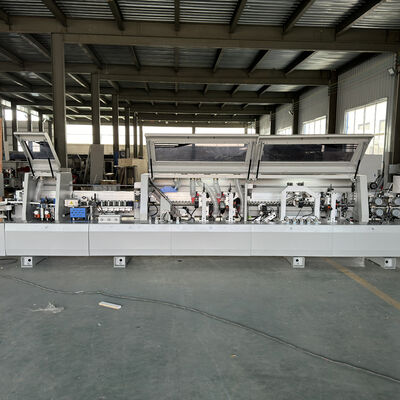

Complete Processing Sequence

At the heart of the BHM388YJ is a precision-driven process that delivers superior edge quality through multiple specialized stations:

Pre-milling: Utilizes double milling cutters to trim board edges with grain marks, burrs, or non-perpendicular cuts, ensuring a perfect base for sealing.
Gluing: Equipped with a heated glue pot and spiral mechanism for uniform adhesive application and strong bonding.
End Cutting: Single-guide rail system precisely trims banding at both board ends.
Rough Trimming: Protects veneers during sealing and serves as a primary leveling process for PVC/acrylic edges, reducing wear on precision tools.
Fine Trimming: High-speed oblique cutting motor with alloy disc achieves smooth and flush trimming.
Contour Rounding: Tracks board contours to create smooth and aesthetic rounded end faces.
Scraping & Flat Scraping: Eliminates ripple marks from trimming and performs a final gentle scrape for ultra-smooth upper and lower edges.
Buffing: Final polishing delivers a superior, seamless finish on the sealed edge section.

Designed to handle a broad spectrum of materials—from PVC and acrylic to wood veneer—and panel thicknesses from 10mm to 60mm, the BHM388YJ is built for versatility. Its robust construction ensures dependable performance in demanding production environments.

Operation Process

The edge banding machine performs all operations in one pass: gluing, pressing, rough trimming, end trimming, corner trimming, vacuuming, secondary scraping, and buffing.

After-Sales Service

Global offline service network across Europe, Latin America, Asia, and Africa with long warranty period and free complimentary accessories.

Frequently Asked Questions

Can customized services be supported?

Yes, we can customize the color, size and logo you need.

Where is your factory located?

We are a Chinese manufacturer in Qingdao City, Shandong Province.

Can you make the machine according to my design or prototype?

Yes. We have professional designers to create the most suitable production plan.

Is the machine easy to operate for first-time users?

Yes, we provide guide videos and English instructions, plus free professional support.

What's your MOQ and delivery terms?

MOQ is 1 set. We ship directly to your country port with competitive freight rates.

How is your after-sales service?

24/7 online support with optional overseas installation service.

What if my machine needs repair?

We provide free online training and warranty repairs for major issues.

Order Fulfillment and Shipping

The edge banding machine is typically shipped within 15-30 business days after order confirmation. Delivery times may vary depending on the shipping destination. We will provide tracking information for your convenience, and all machines are packed carefully to minimize the risk of damage during transport.
