| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

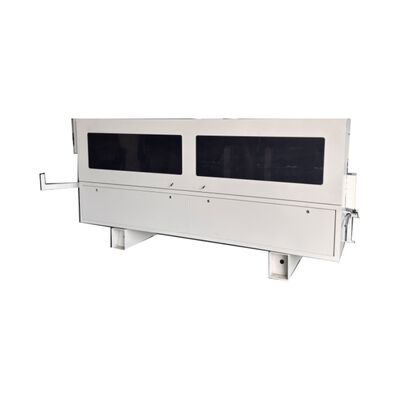

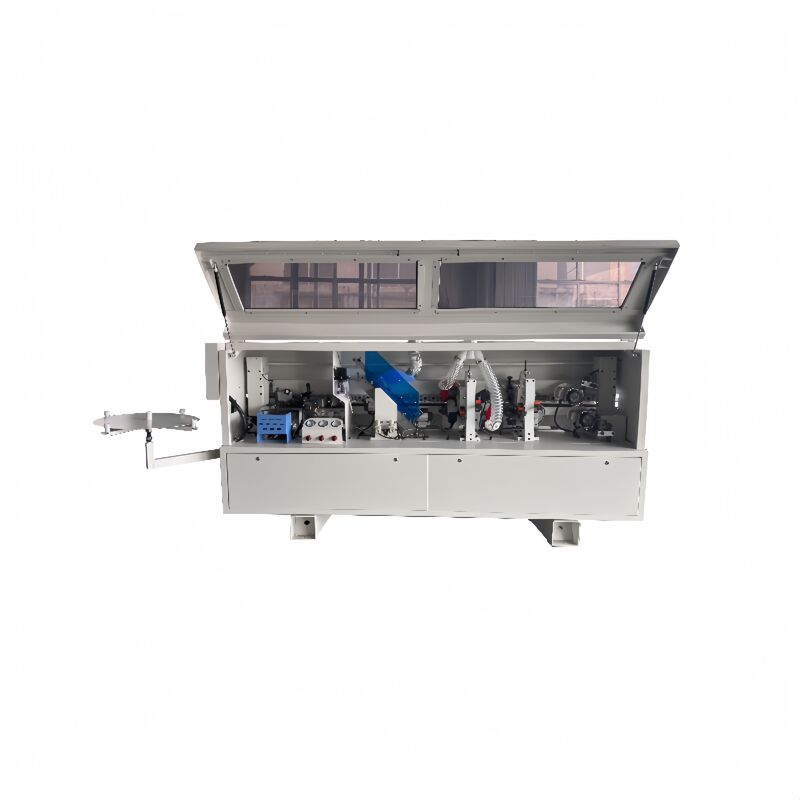

The BHM368F Edge Banding Machine is an intelligent and efficient specialized equipment for panel edge banding, suitable for processing various panel furniture and decorative boards. It utilizes a PLC microcomputer control system with encoder feedback to precisely coordinate all operational units, enabling fully automated workflow. With overall dimensions of 3500×750×1500mm and a weight of 1000kg, the machine features a spiral glue application device and an independent heated glue tank, supporting precise matching of edge banding strips with thicknesses of 0.3–3mm and panel thicknesses of 10–60mm. The conveyor system operates at 18–24m/min, integrating high-speed oblique cutting motors, scraping mechanisms, and polishing units to complete the entire process from gluing, end trimming, fine trimming, to polishing in one pass.
1.Intelligent Control System
PLC microcomputer control with encoder feedback ensures precise timing for each process, offering low failure rates and high operational stability.
2.Efficient Glue Application Technology
Spiral glue application structure combined with an independent heated glue tank ensures even hot melt adhesive coverage, improving bond strength by over 30%.
3.Precision Trimming System
High-speed oblique cutting motor paired with alloy trimming discs enables precise end and edge finishing, effectively eliminating wave marks.
4.Integrated Full-Process Design
Combines four functional modules—end cutting, fine trimming, scraping, and polishing—completing multiple steps in a single feed.
5.Wide Adaptability
Supports panels as narrow as 50mm and as short as 70mm, compatible with edge banding materials ranging from 0.3–3mm, ensuring broad applicability.
Product Applications
• Custom Furniture Manufacturing: Edge banding for wardrobes, cabinets, bookshelves, and other panel furniture
• Office Furniture Production: Edge processing for conference tables, partitions, and filing cabinets
• Interior Decoration Projects: Edge banding for decorative wall panels, skirting boards, and door frames
• Display Fixture Processing: Edge finishing for display cabinets, shelves, and exhibition stands
• Educational Equipment Manufacturing: Edge protection for desks, laboratory tables, and storage cabinets
Detailed images

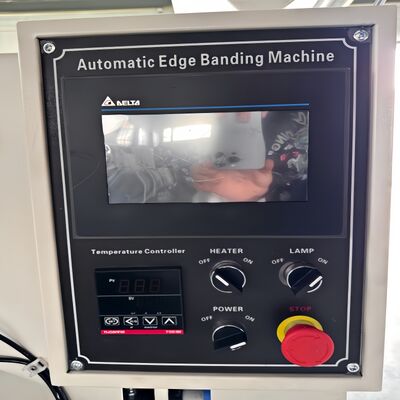

Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.
Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
