Product Overview

The Extended Three-Row Drilling Machine is a versatile and efficient drilling system designed for the panel furniture industry. The machine features a reinforced square tube welded frame that has undergone aging treatment to ensure long-term deformation resistance during continuous operation. Equipped with three sets of drill heads totaling 21 spindles, it supports a maximum drilling diameter of 35mm, a depth of 60mm, and a vertical drilling range of 140–2400mm, meeting the precise drilling requirements of various panel materials. The control system utilizes a Taiwan-made Delta PLC and a Fanyi touchscreen interface for intelligent operation, paired with Guangdong Tianyang motors and specialized cylinders to enable high-speed and stable multi-axis simultaneous drilling. The vertical drilling unit employs a cast iron moving box structure, which can be adjusted forward and backward via a lead screw and includes a 90° rotating motorized turntable for quick switching between longitudinal and transverse drilling, achieving true multi-functionality in one machine.

Configuration parameters

Product Advantages

1. High-Rigidity Structural Design
   The reinforced square tube welded frame, combined with the cast iron moving box, ensures long-term dimensional stability and maintains consistent machining accuracy.

2. Intelligent Control System
   The Taiwan Delta PLC and Fanyi touchscreen offer simple, intuitive operation with multi-parameter setting and memory functions, increasing operational efficiency by over 30%.

3. Multi-Axis Synchronization Capability
   The three sets of 21 spindles are rationally arranged, supporting hole spacing up to 2400mm and suitable for large-format multi-hole processing in various panel furniture applications.

4. Omnidirectional Drilling Function
   The vertical drilling unit features a 90° rotating motorized turntable and forward/backward adjustment mechanism, enabling flexible switching between longitudinal and transverse drilling to meet diverse process requirements.

5. High-Quality and Durable Core Components
   Components such as pure copper transformers, CHNT electrical parts, Taiwan-brand drill heads, and Tianyang motors ensure stable performance, low failure rates, and a 20% reduction in maintenance costs.

Product Applications

• Custom Furniture Manufacturing: Hole processing for cabinets, wardrobes, bookshelves, and other panel furniture
• Interior Decoration Projects: Installation hole drilling for wall panels, partitions, and decorative trim
• Office Furniture Production: Structural connection hole drilling for conference tables, filing cabinets, and workstation partitions
• Wooden Doors and Wood Products: Connection hole drilling for solid wood doors, composite doors, and wooden staircases
• Display and Prop Fabrication: Assembly hole drilling for exhibition stands, display cabinets, and showcase tables

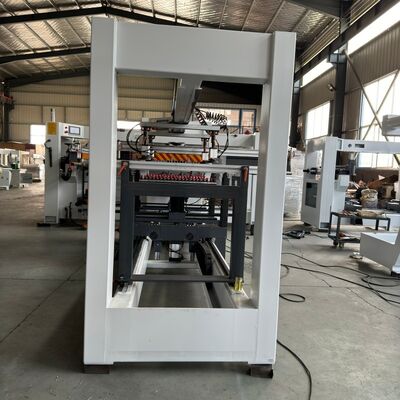

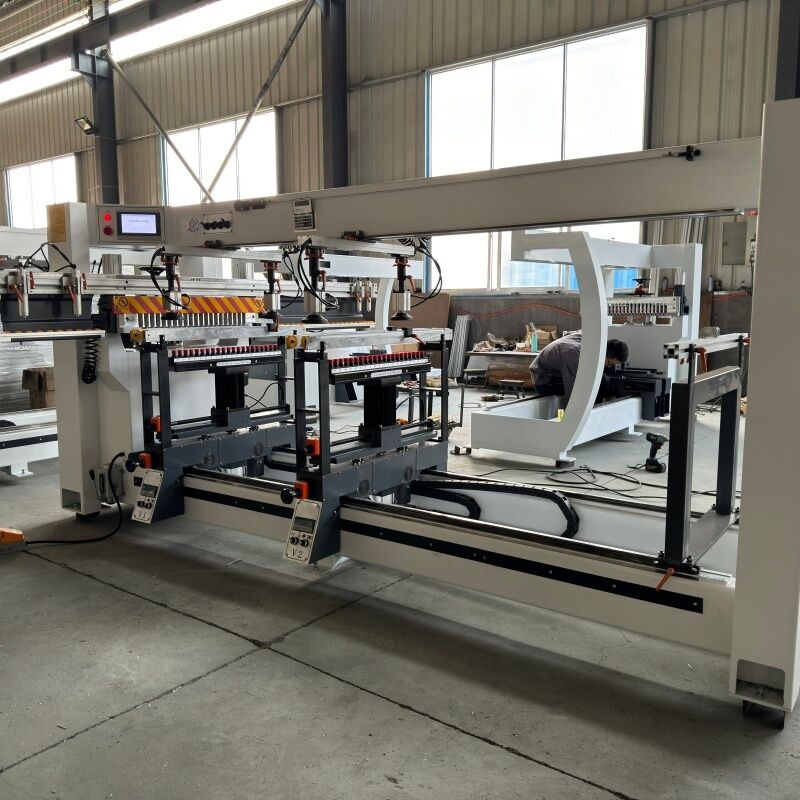

Details display

FAQ

Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you want to order from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery quantity?
A5: Our minimum order quantity is 1 machine. We can send the machine directly to your country's port. Please let us know your port name. We will provide the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
Q7: What if my machine breaks down? Can you help me repair it?
A7: Yes. We have free training online. If your machine has a major problem during the warranty period, we can repair it.
