| Brand Name: | BH |
| Model Number: | BHM 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 3000Sets/Year |
We produce high-quality edge banding machines with fast delivery. Customization options include color, LOGO, engine, and other configurations. Custom orders available starting from just 1 piece.

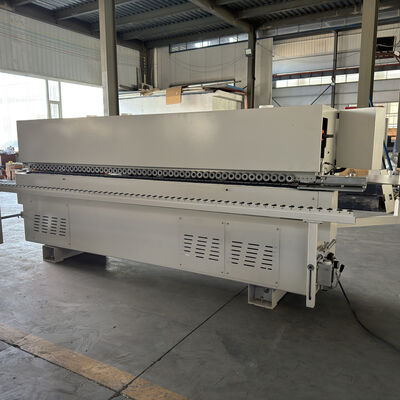

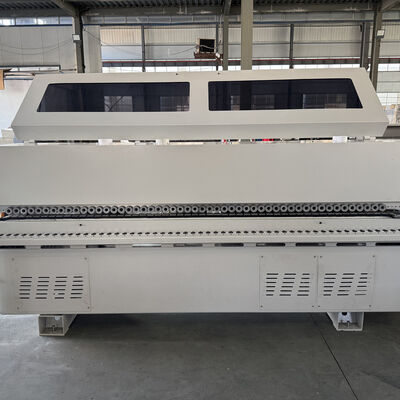

The BHM300 Edge Banding Machine is engineered to deliver core functionality with steadfast reliability, making it an intelligent entry point for small to medium-sized woodworking shops, cabinetmakers, and furniture manufacturers. It streamlines the edge finishing process by integrating essential trimming, polishing, and adhesive application into one efficient, user-friendly operation.
This compact yet capable machine (3000*750*1500mm) handles boards with a minimum length of 70mm, applying edge banding materials from 0.3mm to 3mm in thickness to panels ranging from 10mm to 60mm. Its straightforward three-stage process—End Cutting, Fine Trimming, and Buffing—ensures clean, flush, and polished edges ready for immediate assembly or final finish.
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
|---|---|---|---|
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
ntelligent Operation & Control
Equipped with a standard PLC microcomputer control system, the BHM368F uses time-based logic to enhance stability, repeatability, and safety. An integrated encoder ensures smooth, responsive coordination of all machine functions, minimizing downtime and maintenance.

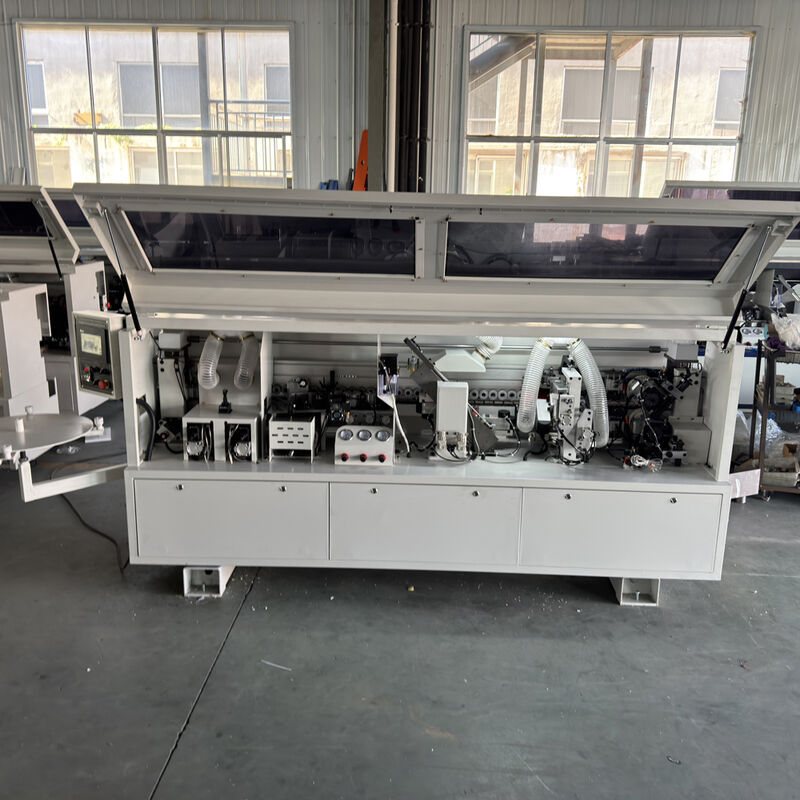

Complete Edge Banding Process
From glue application to final polishing, this machine covers every stage with precision:
Glue Tank: Heats and evenly applies hot melt adhesive via a spiral mechanism for reliable bonding.
End Cutting: Single-guide rail system ensures clean trimming at both board ends.
Fine Trimming: High-speed oblique cutting motor with alloy disc delivers smooth, flush edges.
Scraping: Removes wave marks for uniform upper and lower edge surfaces.
Buffing: Polishing unit enhances edge smoothness and finish quality.
Precision Through Intelligent Design
At its core, the BHM300 utilizes a standard PLC microcomputer control system that operates on a time-control principle, ensuring consistent, repeatable cycles and enhanced operational safety. An encoder coordinates all machine actions with sensitive response and a low failure rate. The glue coating unit reliably heats and applies hot-melt adhesive via an efficient suction structure for strong, lasting bonds on every piece.
Built for Consistent Results
Key components are selected for durability and performance. The end-cutting function employs a single-guide rail system for precise trimming at both board ends. Fine trimming is accomplished by a high-speed oblique cutting motor with an alloy disc for smooth, even edges, while the dedicated buffing unit polishes the sealed edge to a professional-grade finish.
Complete Package with Support
The machine comes equipped with trusted brand-name accessories and is supported by a comprehensive service package. We offer free factory training (including accommodation and meals after deposit) and provide one year of warranty with free supply of replacement parts for any failures (customer covers freight). Lifelong free online technical support via video call, email, and phone ensures you are never without assistance.
The BHM300 represents a practical and reliable solution for businesses seeking to enhance their finishing capabilities without overcomplicating their workflow or budget. It's the dependable partner for achieving clean, professional edges day after day.
Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.
Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.
Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.
