| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

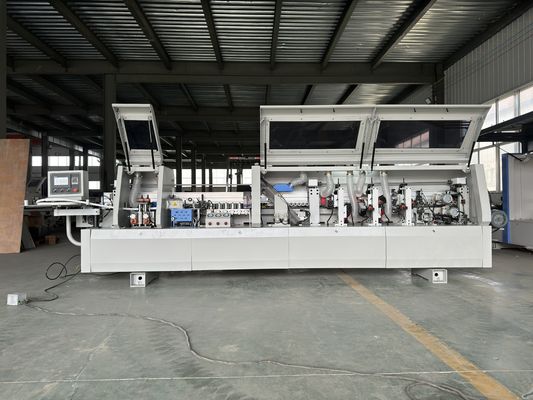

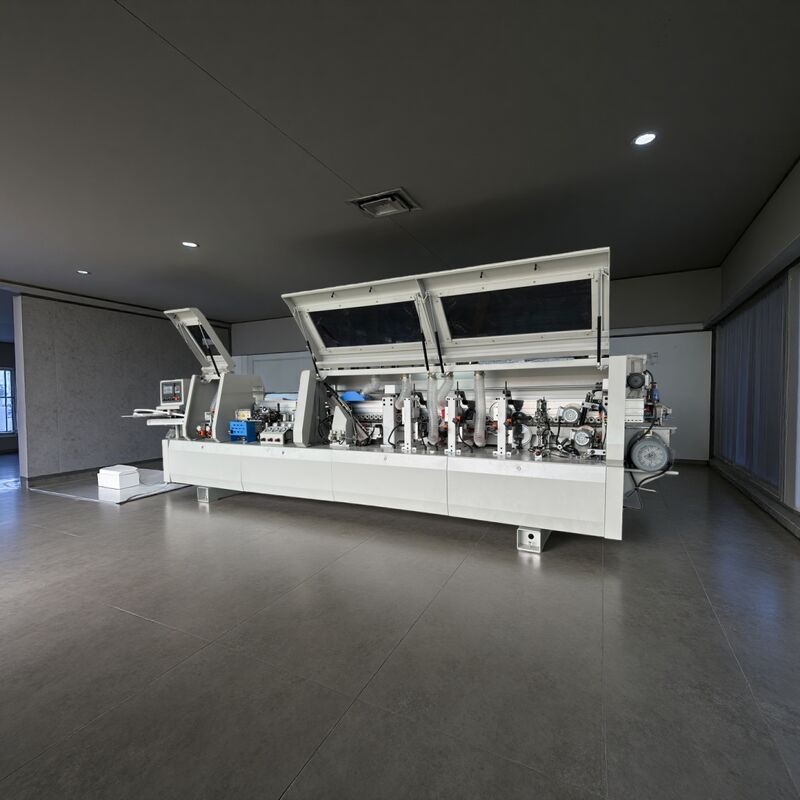

The BHM388Y Edge Banding Machine is an efficient and intelligent panel processing device designed for high-precision edge banding of various board materials. Featuring a fully automated integrated design with an intelligent control system and high-precision execution modules, it supports edge banding strips with thicknesses ranging from 0.3mm to 3mm and can handle board thicknesses from 10mm to 60mm. The minimum workpiece size is 50mm (width) × 70mm (length). With overall dimensions of 5000×750×1500mm and a working speed of 18–24m/min, the machine operates at a total power of 13.5kW and an air pressure of 0.7MPa, making it ideal for continuous production in medium to large-scale furniture manufacturing facilities.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
1.Intelligent Control System: Equipped with PLC microcomputer control based on time control principles, ensuring sensitive response, high stability, low failure rates, and user-friendly operation.
2.High-Precision Pre-Milling: Features dual milling cutters to trim board edges, removing burrs, grain marks, and non-perpendicular cuts for improved edge sealing results.
3.Uniform Glue Application: The glue pot uses a spiral heating structure to melt hot-melt adhesive evenly, providing strong adhesion and durable edge bonding.
4.Multi-Stage Trimming and Polishing: Includes rough trimming, fine trimming, scraping, flat scraping, and buffing processes. Alloy disc blades and high-speed oblique cutting motors ensure smooth and even edge finishing.
5.Stable and Efficient Structure: Incorporates a single-guide rail end-cutting system and encoder-controlled operations for stable performance and high processing accuracy.
6.Wide Material Compatibility: Supports various edge banding materials such as PVC, acrylic, and wood veneer, meeting diverse thickness and material requirements.
Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
