| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

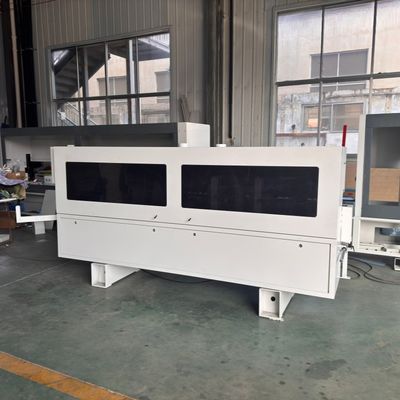

The BHM368F Edge Banding Machine is a compact and efficient automatic edge banding system designed for small to medium-sized furniture and panel processing enterprises. Featuring an integrated structure with dimensions of 3500×750×1500mm and a weight of 1000kg, it is highly adaptable to limited workshop spaces. The machine supports board thicknesses from 10mm to 60mm and edge banding materials with thicknesses ranging from 0.3mm to 3mm, with a minimum workpiece size of 50mm (width) × 70mm (length). Operating at a conveyor speed of 18–24m/min and a total power of 7kW under a working pressure of 0.7MPa, it delivers reliable performance while maintaining energy efficiency.
Compact and Efficient Design: The machine’s space-saving structure is ideal for workshops with limited floor space, without compromising processing speed or accuracy.
Intelligent Control System: Equipped with PLC microcomputer control based on time-control principles, ensuring responsive operation, high stability, and low failure rates.
Uniform Glue Application System: A spiral-heated glue pot ensures even melting and coating of hot-melt adhesive, providing strong bonding and seamless edge sealing.
High-Precision Trimming Functions: Integrated processes include fine trimming, scraping, and buffing, with a high-speed oblique cutting motor and alloy disc ensuring smooth and even edge finishing.
Single-Guide Rail End Cutting: Simple and stable design enables precise trimming of board ends, adaptable to workpieces of varying lengths.
Energy Efficient Operation: With a total power consumption of only 7kW, the machine supports continuous small to medium-batch production while reducing energy costs.
Product Applications
Small to Medium-Sized Furniture Factories: Suitable for edge banding of cabinets, wardrobes, bookshelves, and other panel furniture.
Custom Furniture Workshops: Ideal for personalized orders and small-batch, multi-variety production.
Doors, Windows, and Decorative Moldings: Can be used for edge processing of interior door panels, window frames, skirting boards, and other decorative materials.
Educational and Office Furniture: Applicable for edge banding of desks, office partitions, filing cabinets, and similar products.
Panel Processing Workshops: Suitable for edge banding and finishing of substrates such as MDF, particleboard, and plywood.

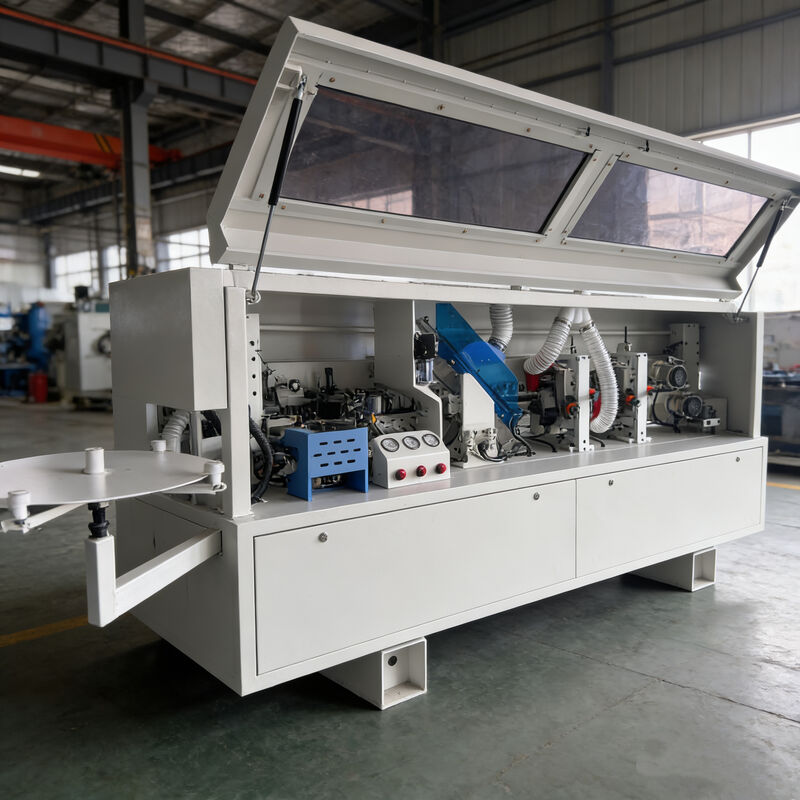

Detailed images
Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.
Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
