| Brand Name: | BH |
| Model Number: | 388YJ |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

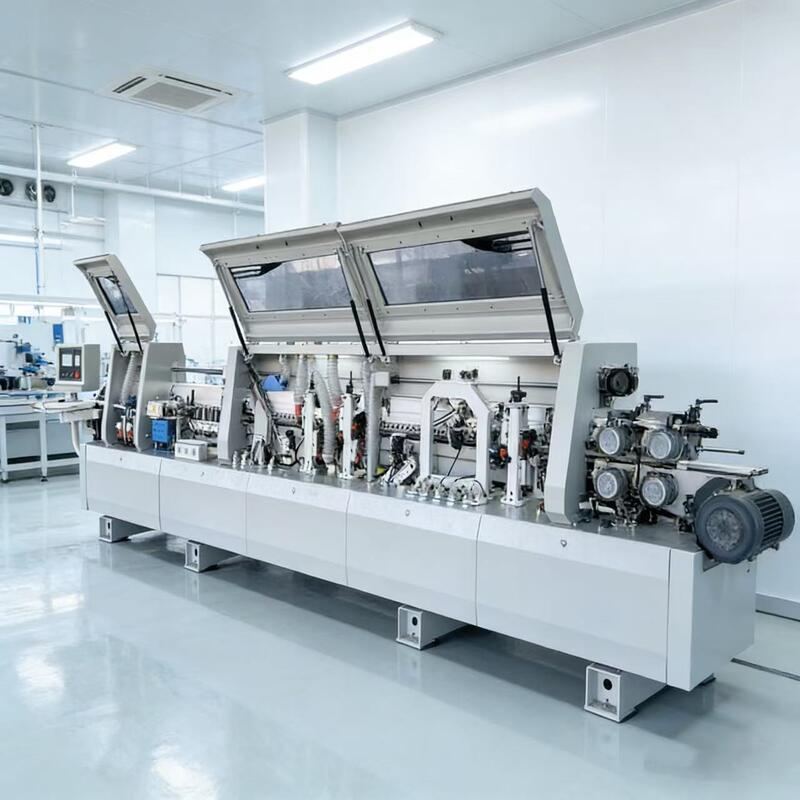

The BHM388YJ Edge Banding Machine is a high-end fully automatic edge banding system designed for large and medium-sized furniture manufacturers and high-quality panel processing requirements. Featuring an extended structure with dimensions of 6700×750×1500mm and a weight of 2000kg, it offers enhanced rigidity and expanded processing capabilities. The machine supports board thicknesses from 10mm to 60mm and edge banding materials ranging from 0.3mm to 3mm, with a minimum workpiece size of 50mm (width) × 70mm (length). Operating at a conveyor speed of 18–24m/min and a total power of 15.8kW under a working pressure of 0.7MPa, it is ideal for high-efficiency, high-precision continuous production scenarios.
| Overall Dimensions | 6700 × 750 × 1500 mm |
| Machine Weight | 2000 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 15.8 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
Extended High-Efficiency Structure: The elongated machine body integrates multiple processing stages, accommodating complex edge banding workflows and improving overall efficiency and consistency.
Intelligent Programmable Control System: Equipped with a standard PLC microcomputer control based on time-control principles, ensuring responsive operation, stable performance, and full automation.
Complete Integrated Processing Workflow: Includes pre-milling, glue application, end cutting, rough trimming, fine trimming, contour rounding, scraping, flat scraping, and buffing, delivering one-stop high-quality edge banding.
High-Precision Contour Rounding Function: Features a contour tracking and rounding device for smooth and aesthetically pleasing rounded edges on board ends, enhancing product appearance.
Dual Milling Cutter Pre-Milling System: Effectively removes grain marks, burrs, and non-perpendicular cuts from board edges, providing a flat surface for better edge bonding.
Spiral Uniform Glue Application Technology: The spiral-heated glue pot ensures even melting and consistent coating of hot-melt adhesive, resulting in strong adhesion and flawless edge sealing.
Multi-Stage Finishing Processes: Combines rough trimming, fine trimming, scraping, flat scraping, and buffing for smooth, refined edge sections with excellent tactile quality.
High-End Panel Furniture Manufacturing: Suitable for precision edge banding of cabinets, wardrobes, and premium office furniture.
Whole-House Customization and Integrated Home Solutions: Meets the edge banding needs of large-scale customized orders, including shaped panels, curved boards, and multi-layer laminated panels.
Doors, Windows, and Decorative Engineering: Ideal for edge banding and shaping of high-end interior doors, window trims, and decorative wall panels.
Commercial Display and Hotel Furniture: Applicable for edge banding of retail displays and custom hotel furniture where appearance quality is critical.
Specialized Panel Processing Centers: Suitable for high-standard edge banding and surface treatment of substrates such as MDF, particleboard, and wood veneer boards.
Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
