| Brand Name: | BH |
| Model Number: | BHM START 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
Product Overview

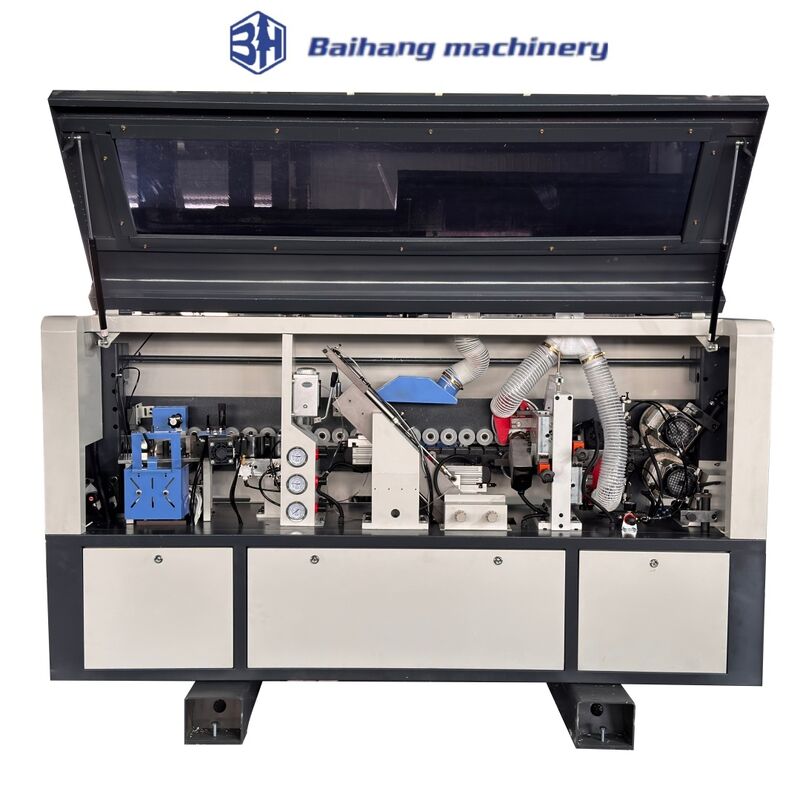

The BHM300 Automatic Edge Banding Machine is an economical and efficient edge banding device designed specifically for panel stores and small processing workshops. Featuring a compact structure with dimensions of 3000×750×1500mm and a machine weight of 800kg, it can be customized according to customer requirements. Equipped with a vertical display control panel and a hand-crank digital display adjustment device, it enables precise adjustment of the pressure beam height. The large-capacity glue roller design supports continuous glue application and long-term stable operation. The machine supports board thicknesses ranging from 10mm to 60mm and edge banding materials with thicknesses of 0.3mm to 3mm, with a minimum workpiece size of 50mm (width) × 70mm (length). Operating at a conveyor speed of 16m/min, a total power of 7kW, and a working pressure of 0.7MPa, it is suitable for processing various edge banding materials such as PVC and polyester.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Outline dimension | 3000*750*1500mm | Conveyor speed | 16m/min |
| Machine weight | 800KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |

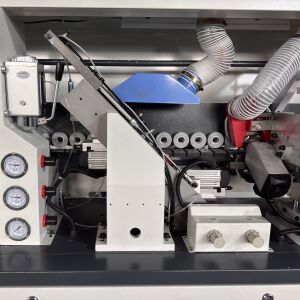

1.Intuitive and Easy Operation: The vertical display control panel and hand-crank digital display device enable precise and convenient adjustment of the pressure beam height, lowering the operational threshold.
2.Strong Continuous Operation Capability: The large-capacity glue roller design supports long-term continuous glue application, avoiding frequent stops for glue replenishment and improving production efficiency.
3.Integrated Forming Process: With a single feed, the board completes the entire process including glue application, pressing, rough trimming, end cutting, corner trimming, dust removal, secondary scraping, and polishing, achieving one-step board forming.

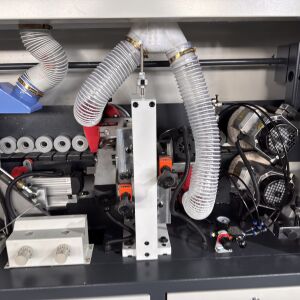

4.Efficient Dust Removal System: Equipped with a large-diameter dust collection device that effectively captures dust generated during processing, improving the working environment.
5.Energy-Saving and Low Consumption Design: With a total power consumption of only 7kW, the machine reduces energy usage while maintaining processing quality, making it suitable for small to medium-batch continuous production.
6.High-Quality Core Components: Features a PLC control system, high-quality bearings, motors, gears, and other core components, ensuring stable and reliable equipment operation.
Panel Sales Stores: Suitable for panel sellers to provide on-site edge banding services for customers, adding value to their offerings.
Small Furniture Processing Factories: Meets the small-batch, multi-variety edge banding needs for cabinets, wardrobes, bookshelves, and other panel furniture.
Custom Furniture Studios: Ideal for rapid prototyping and small-batch production of personalized orders.
Interior Decoration Construction Sites: Can be used for on-site edge banding of panels during interior renovation, improving decoration quality.
Educational and Training Institutions: Suitable for use as teaching equipment in woodworking vocational training schools to develop students' edge banding operational skills.
