| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |
| Supply Ability: | 2000Sets/Year |

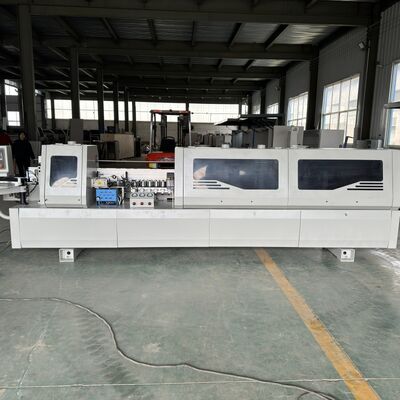

The BHM388Y Automatic Edge Banding Machine is a comprehensive and stable mid-to-high-end fully automatic edge banding device designed for medium-sized furniture manufacturing enterprises and professional panel processing workshops. With overall dimensions of 5000×750×1500mm and a machine weight of 1500kg, it features a robust structure with strong rigidity. Equipped with a PLC microcomputer control system based on time-control principles, the machine ensures stable operation, responsive performance, and reliable safety. It supports board thicknesses ranging from 10mm to 60mm and edge banding materials with thicknesses of 0.3mm to 3mm, with a minimum workpiece size of 50mm (width) × 70mm (length). Operating at a conveyor speed of 18–24m/min, a total power of 13.5kW, and a working pressure of 0.7MPa, it is suitable for processing various edge banding materials such as PVC, acrylic, and wood veneer.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
Intelligent Control System: Features standard PLC microcomputer control based on time-control principles, offering responsive operation, stable performance, and significantly enhanced safety and reliability.
Precise Encoder Control: Equipped with a high-sensitivity encoder that comprehensively controls all machine actions, ensuring fast response, low failure rates, and processing accuracy.
Dual Milling Cutter Pre-Milling System: Utilizes a dual milling cutter design to effectively remove grain marks, burrs, and non-perpendicular cuts from board edges, providing a flat surface for improved adhesive bonding.
Spiral Uniform Glue Application Technology: The spiral-heated glue pot design ensures even melting and coating of hot-melt adhesive, delivering strong adhesion and seamless edge bonding.

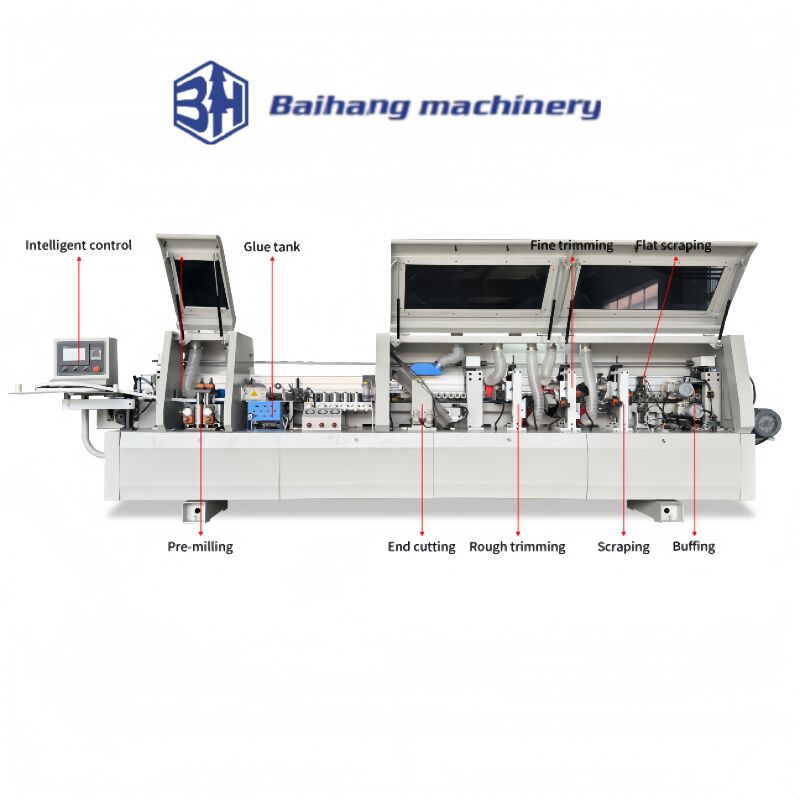

Multi-Stage Finishing Process Chain: Integrates rough trimming, fine trimming, scraping, flat scraping, and buffing processes, utilizing high-speed oblique cutting motors and alloy disc blades to ensure smooth and even edge finishing.
Single-Guide Rail End Cutting: The simple and stable structure ensures precise end cutting, adapting to workpieces of varying lengths.
Extended Structural Design: The 5000mm machine length meets the continuous processing requirements for long panels, improving production efficiency.
Medium-Sized Furniture Manufacturing Enterprises: Suitable for batch edge banding of cabinets, wardrobes, bookshelves, and other panel furniture.
Professional Panel Processing Centers: Used for high-standard edge banding and surface treatment of substrates such as MDF, particleboard, plywood, and wood veneer boards.
Whole-House Custom Furniture Production: Meets the edge banding requirements for various specification panels in custom orders, including shaped panels and multi-layer boards.
Commercial Display and Office Furniture: Suitable for fine edge banding of retail displays, office desks and chairs, filing cabinets, and similar products.
Doors, Windows, and Decorative Engineering: Can be used for edge banding and shaping of high-end interior doors, window trims, and decorative wall panels.
