| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

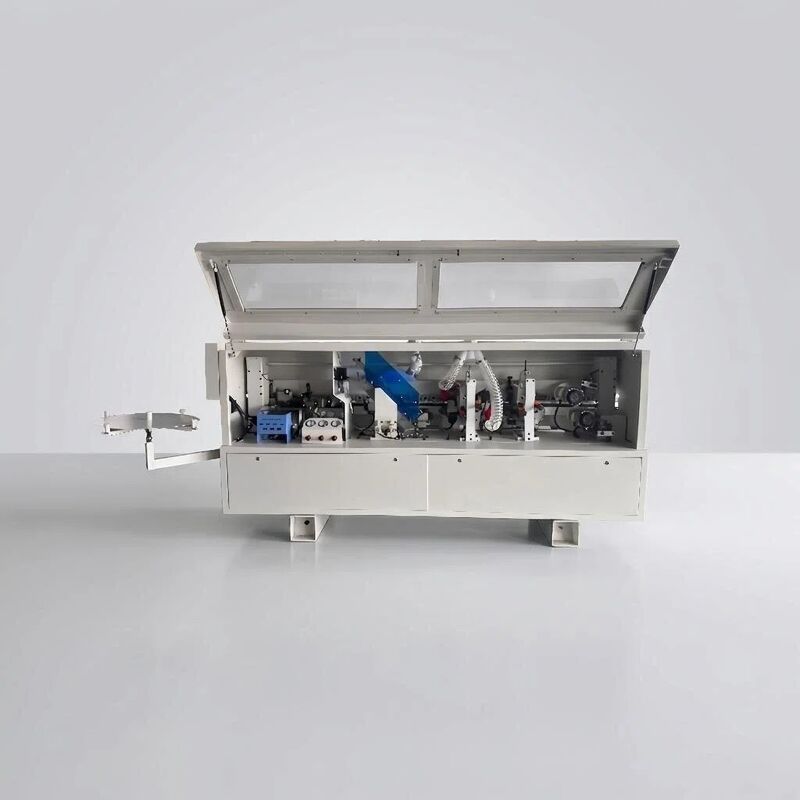

The BHM368F Edge Banding Machine is a high-performance, fully automatic edge banding solution designed for straight-line edge processing in panel furniture manufacturing. With overall dimensions of 3500×750×1500mm and a machine weight of 1000kg, it offers a robust and durable construction. The machine delivers a conveyor speed of 16m/min and is capable of processing panels with a thickness of 10–60mm and edge banding thickness of 0.3–3mm. The minimum workpiece dimensions are 50mm in width and 70mm in length. Equipped with a standard PLC microcomputer control system based on time control principles, the machine ensures enhanced stability and operational safety. High-quality branded accessories guarantee long-term reliability.
Product Advantages
Intelligent Control: The PLC microcomputer control system, operating on time control principles, significantly improves machine stability and operational safety.
Efficient Glue Application: The glue tank heating device uses a spiral structure to evenly apply hot melt adhesive to the panel edge, ensuring strong bonding and durable edge banding.
Precision End Cutting: The end cutting unit features a single-rail design, accurately trimming excess edge banding from both ends of the panel for a clean, flush finish.
Fine Trimming: Equipped with a high-speed oblique cutting motor and an adjustable alloy disc blade, this unit delivers smooth, even, and precise trimming results.
Scraping Function: Effectively eliminates ripple marks caused by non-linear cutting during the trimming process, making the upper and lower edges of the panel smoother and neater.
Buffing: The buffing unit further enhances the smoothness and surface quality of the edge banding section, giving the finished product a professional look and feel.
Product Applications
The BHM368F Edge Banding Machine is widely used in the following fields:
Panel Furniture Manufacturing: Ideal for edge banding with PVC, ABS, wood veneer, and other materials on wardrobes, kitchen cabinets, bookcases, TV stands, and more.
Office Furniture Production: Suitable for edge banding on desks, conference tables, filing cabinets, and other office furniture products.
Decorative Panel Processing: Applicable for straight-line edge banding on MDF, particleboard, plywood, blockboard, and other engineered wood panels.
Interior Decoration & Door Manufacturing: Used for fine edge finishing on interior doors, decorative panels, and other architectural woodworking applications to enhance aesthetics and durability.
Detailed images
Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.

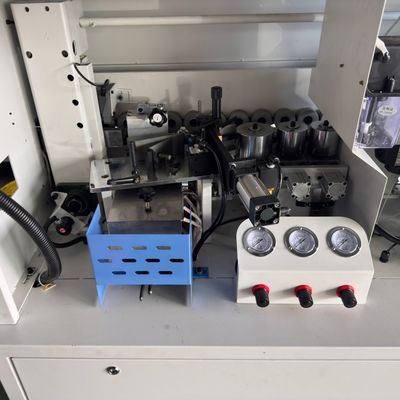

Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.

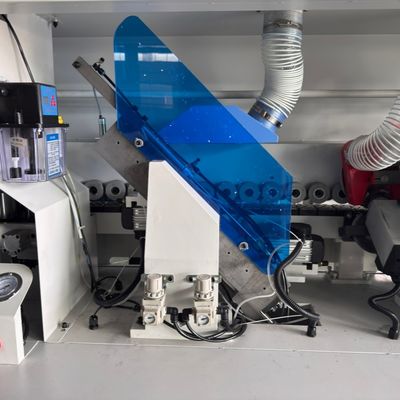

End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.

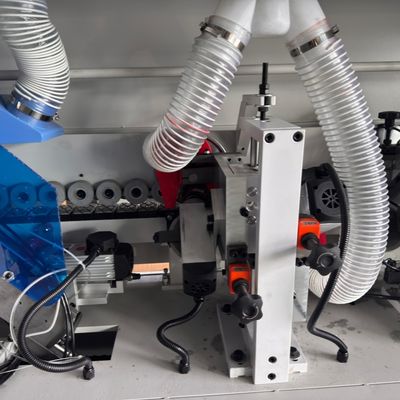

Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.

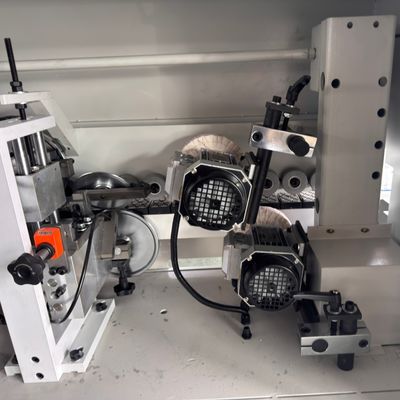

Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
