| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

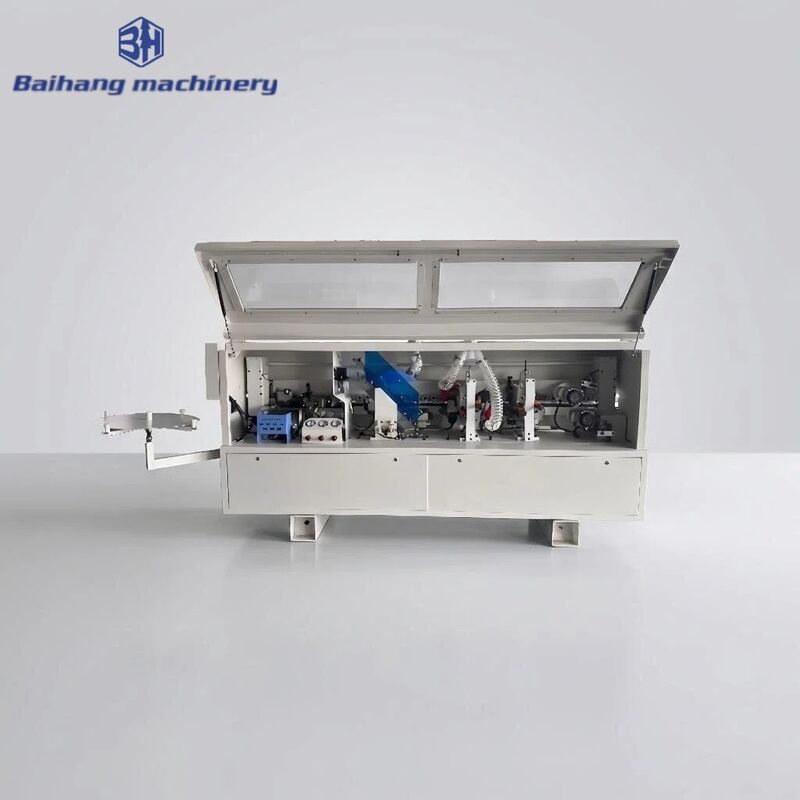

The BHM368F Edge Banding Machine is a cost-effective, space-saving solution for straight-line edge banding, designed to meet the needs of growing furniture manufacturing operations. Measuring 3500×750×1500mm and weighing 1000kg, this machine balances compactness with industrial-grade durability. With a conveyor speed of 16m/min and a total power of 7kW, it efficiently processes panels ranging from 10mm to 60mm in thickness and accepts edge banding materials from 0.3mm to 3mm. The machine handles minimum board sizes of 50mm (width) and 70mm (length), making it versatile for both small components and standard panels. Operating on 380V/50Hz power and 0.7MPa air pressure, the BHM368F features a PLC microcomputer control system that simplifies operation while ensuring consistent, repeatable results.
Product Advantages
Space-Saving Design: With a compact 3500mm length, this machine fits easily into workshops with limited floor space while maintaining full functionality.
Simple PLC Operation: The time-based PLC control system reduces the learning curve for new operators, allowing quick setup and minimal training requirements.
Consistent Glue Application: The spiral glue pot design ensures hot melt adhesive is distributed evenly across the entire panel edge, preventing dry spots or excess glue buildup.
Dual-End Trimming: The single-rail end cutting unit works on both leading and trailing ends of the panel, eliminating the need for manual touch-up work.
Tool Mark Removal: The scraping station specifically targets and removes ripple marks and non-linear cutting痕迹, resulting in a professionally finished edge.
Surface Enhancement: The buffing unit adds a final polish to the sealed edge, improving both visual appeal and resistance to dirt accumulation.
Low Maintenance Requirements: Built with readily available branded components, this machine is easy to service, reducing downtime and keeping spare parts costs low.
Product Applications
The BHM368F Edge Banding Machine is particularly well-suited for:
Start-up Furniture Businesses: An ideal first machine for new workshops looking to produce quality finished edges without a large capital investment.
Cabinet Door Production: Perfect for sealing the edges of MDF and particleboard cabinet doors, protecting them from moisture and impact damage.
Shelf & Bookcase Manufacturing: Provides clean, durable edges on shelving components that are subject to frequent handling and weight loads.
Plywood Edge Finishing: Seals raw plywood edges to prevent delamination and improve appearance in finished products.
Repair & Refinishing Shops: Allows restoration shops to re-edge damaged furniture pieces, extending their usable life.
DIY & Hobbyist Workshops: Offers professional-grade edge banding capabilities for advanced woodworking enthusiasts producing custom projects.
Detailed images
Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.

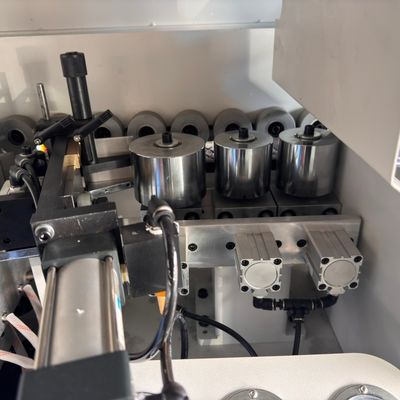

Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.

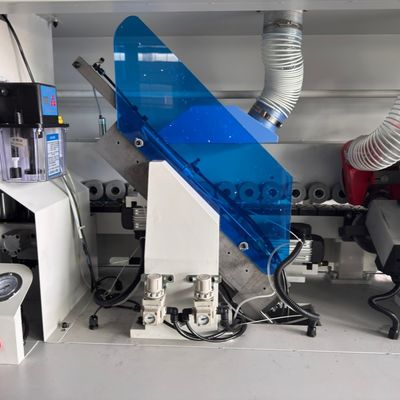

End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.

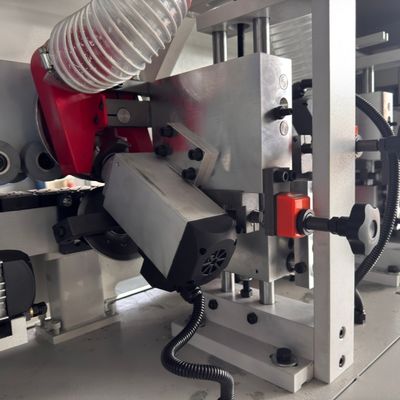

Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.

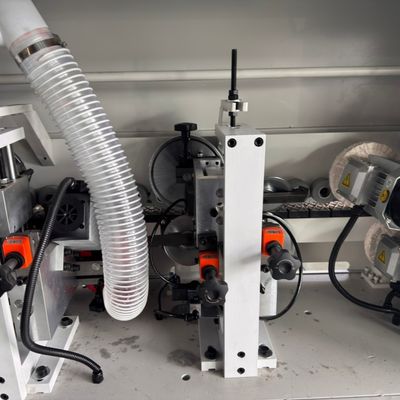

Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
