| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

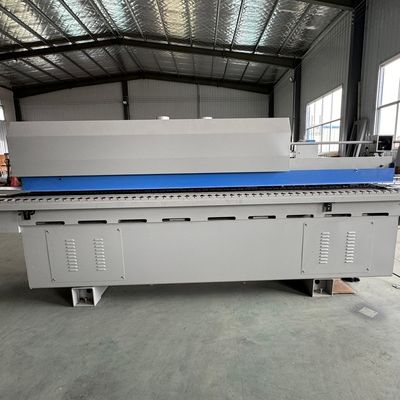

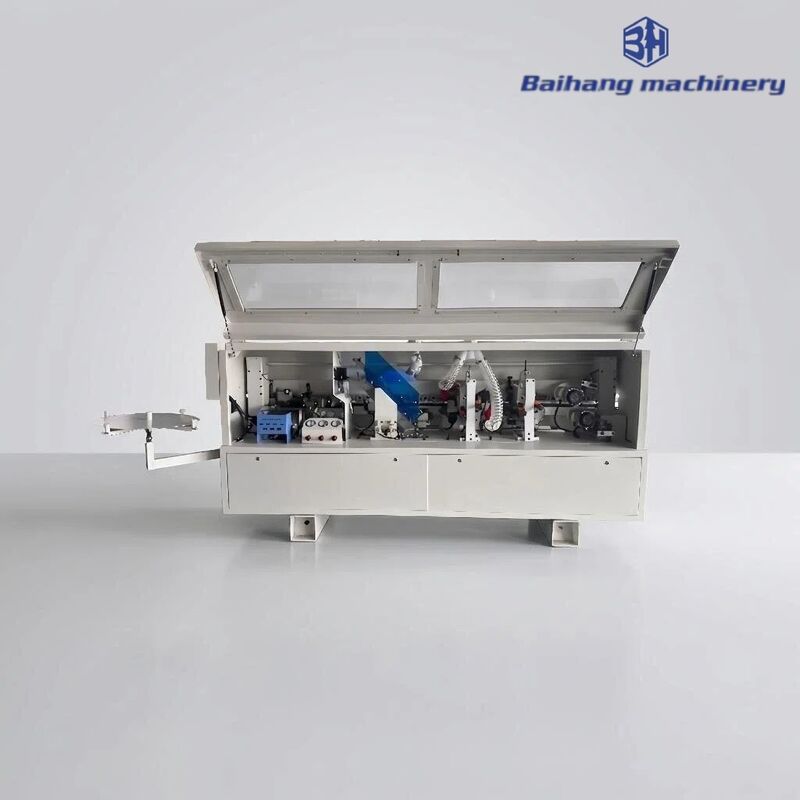

The BHM368F Edge Banding Machine is a precision-engineered automatic edge bander developed for manufacturers seeking a balance of affordability, reliability, and performance. This machine features a rugged welded frame measuring 3500×750×1500mm and weighing 1000kg, providing a stable platform for high-quality edge finishing. Operating at a conveyor speed of 16m/min, it processes panel thicknesses from 10mm to 60mm and accepts edge banding materials ranging from 0.3mm to 3mm thick. The machine accommodates board widths as narrow as 50mm and lengths as short as 70mm, offering exceptional flexibility for diverse production runs. Powered by a 7kW motor system and requiring 0.7MPa air pressure, the BHM368F utilizes a PLC-based intelligent control system that automates the entire edge banding sequence from glue application to final buffing.
Product Advantages
Complete 7-in-1 Functionality: Integrates glue coating, end cutting, fine trimming, scraping, and buffing into a single production line, eliminating the need for multiple machines.
Foolproof PLC Automation: The microcomputer control system automatically sequences each operation stage, reducing operator error and ensuring consistent output regardless of shift or skill level.
Anti-Waste Glue System: The spiral glue pot design optimizes adhesive consumption by applying only what is needed, reducing material costs over time.
Self-Sharpening Alloy Blades: The fine trimming unit uses high-durability alloy discs that maintain sharpness longer than standard blades, reducing replacement frequency.
Dual-Stage Edge Refinement: Combines scraping (to remove cutting marks) and buffing (to add gloss) for a two-step finishing process that produces superior surface quality.
Quick-Changeover Capability: Easily switches between different edge banding materials (PVC, ABS, veneer) and thicknesses (0.3–3mm) with minimal adjustment time.
Comprehensive Safety Features: PLC time-control logic includes automatic shutoff and fault detection, protecting both operator and machine during production.
Product Applications
The BHM368F Edge Banding Machine delivers exceptional value in the following scenarios:
Small-Batch Custom Furniture Production: Ideal for workshops producing made-to-order pieces where edge quality directly impacts customer satisfaction.
Flat-Pack Furniture Manufacturing: Ensures consistent edge finishing on components destined for IKEA-style ready-to-assemble products.
Exhibition & Display Stand Fabrication: Produces showcase-quality edges on display panels, trade show booths, and retail fixtures where appearance matters.
Musical Instrument Manufacturing: Suitable for edge finishing on guitar bodies, speaker cabinets, and other wooden instrument components requiring precision and smoothness.
Marine & RV Interior Production: Provides moisture-resistant edge sealing for cabinets and panels used in boats, campers, and motorhomes.
Architectural Millwork: Delivers professional edge finishing on custom moldings, wall panels, and built-in cabinetry for residential and commercial projects.
Detailed images

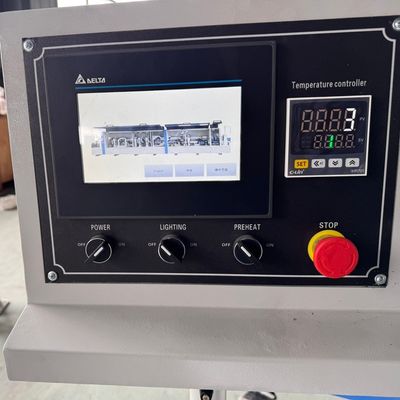

Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.

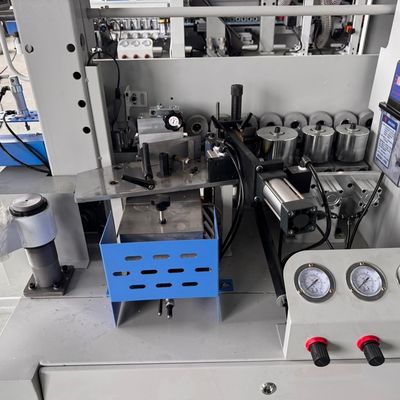

Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
