Automatic Edge Banding Machine With Fine Trimming And Scraping

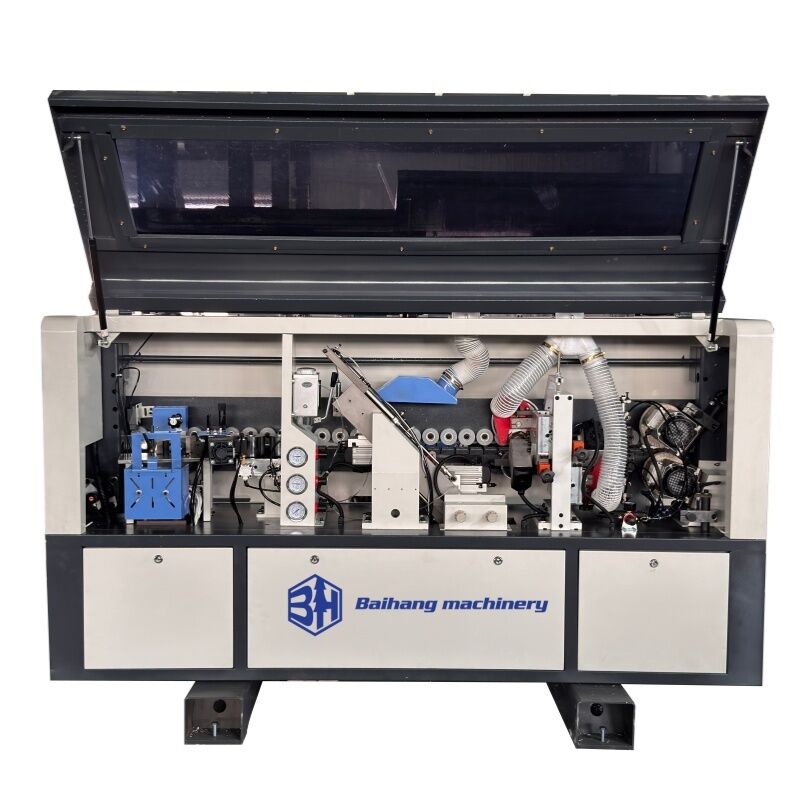

BHM START 300 Fully Automatic High-Speed Edge Banding Machine

Product Introduction

Core Product Features

1. Intelligent PLC Control System: Equipped with a standard PLC microcomputer that uses time-control principles, ensuring stable, safe operation and precise synchronization of all processes. Paired with a sensitive encoder to oversee all machine actions, delivering rapid response and a low failure rate.

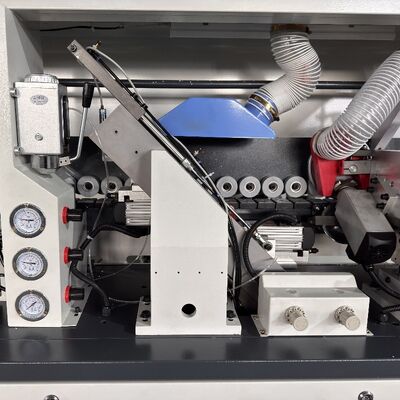

2. Precision Glue Application: A temperature-controlled glue tank heats hot melt adhesive, with a suction structure that applies glue evenly to both the panel edge and edge tape, guaranteeing strong, long-lasting adhesion.

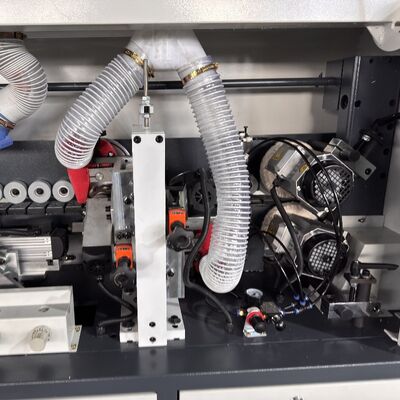

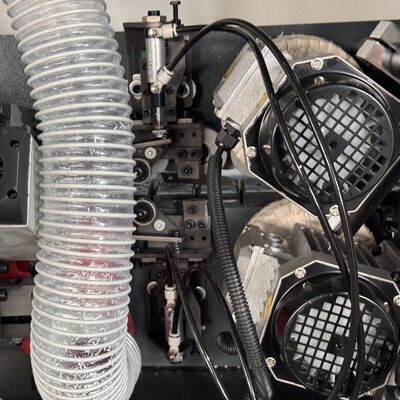

3. High-Precision Trimming & Cutting: Single-guide rail end cutters deliver clean, uniform panel edge cuts, while a high-speed oblique fine trimming motor with adjustable operation uses durable alloy discs to achieve smooth, burr-free edges.
4. Professional Finishing: Dual-head buffing units polish the edge sealing section to a glossy, professional finish, eliminating residual adhesive and enhancing the final product’s aesthetic appeal.
5. Compact & Durable Design: A space-saving structure reduces transportation costs, while high-quality components (including wear-resistant trimming discs and sealed pneumatic parts) ensure long-term reliability for 24/7 production.
6. Efficient Dust Extraction: Integrated dust collection hoses at every processing stage capture wood dust and debris, maintaining a clean working environment and protecting machine components from wear.

Key Functions

The core control system of the machine consists of an encoder and an intelligent PLC. The encoder realizes the unified control of all mechanical actions, featuring sensitive response, precise coordination and extremely low failure rate. The PLC microcomputer control system adopts time control logic to enhance operation stability and safety, ensuring accurate execution of each process. The glue tank melts hot melt adhesive evenly and applies glue through a spiral structure, which makes the glue layer uniform and the bonding firm. The end cutting system uses a single guide rail structure to accurately cut the two ends of the panel. The fine trimming unit uses a high-speed oblique cutting motor with an alloy disc to achieve smooth and flat trimming effect. The scraping device removes ripples and lines generated during cutting, making the edge surface flatter. The buffing mechanism polishes the edge sealing part to achieve a smooth and delicate surface effect. The whole processing flow is fully automatic and continuous, without manual intervention in the middle.

Application Scope

• This machine is mainly used in panel furniture production, custom home furniture, kitchen cabinet manufacturing, wardrobe processing, wooden door production, office furniture production and indoor decoration panel processing. It is applicable to many wood-based panels such as MDF, particle board, solid wood board and plywood. It can produce cabinet doors, side panels, shelves, wall panels, display racks and other components. It is suitable for large-scale assembly line production and can also meet the needs of personalized customized processing, so it is widely used in wood processing factories of different scales.

Competitive Advantages

edge banding machine has significant advantages in performance, quality and efficiency. The intelligent control system makes operation easier and more stable, reducing the dependence on skilled workers and lowering the error rate. The encoder control system ensures high synchronization of all actions, fast response and less mechanical failure, which effectively improves production efficiency. The unique spiral glue application design ensures uniform glue distribution and strong adhesion, so that the edge band is not easy to fall off and has good durability. The combination of high-speed trimming, scraping and buffing creates a perfect edge effect with smooth surface and beautiful appearance, which improves the grade of furniture products. The use of well-known imported and domestic brand accessories guarantees the stability and service life of the machine. The structure design is humanized, easy to adjust and maintain, reducing daily maintenance time and cost. With high efficiency, low failure rate, good processing quality and wide application range, this machine provides a strong guarantee for woodworking enterprises to improve production capacity and product quality.

Logistics & After-Sales Support

• Packaging: Securely packed in a reinforced wooden crate with shock-absorbing foam to protect components during transit.
• Shipping Options: Flexible choices including sea freight (cost-effective for international orders), air freight (for urgent needs), and door-to-door delivery (including customs clearance and basic installation).
• Warranty & Support: 12-month warranty on all parts, plus remote technical assistance and optional on-site training to ensure smooth operation and minimal downtime.
•
