BHM START 300 Automatic Edge Banding Machine with 18~24m/min Speed, 0.3~3mm Thickness, and 7KW Power

BHM START 300 Automatic Edge Banding Machine with 18~24m/min Speed, 0.3~3mm Thickness, and 7KW Power

Brand Name:	BH
Model Number:	BHM 368F
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Speed:

18~24m/min

Minimum Width Of Board:

50mm

Minimum Length Of Board:

70mm

Pressure:

0.7Mpa

Thickness:

0.3~3mm

Power:

7KW

Packaging Details:

3600*850*1600mm

Product Description

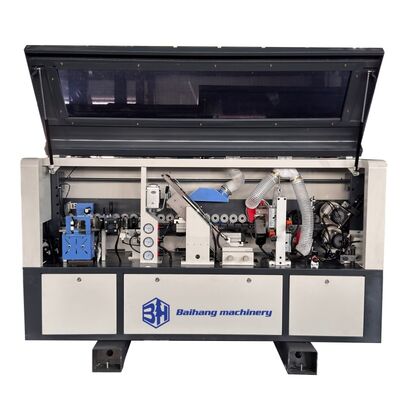

BHM START 300 Fully Automatic High-Speed Edge Banding Machine

The BHM START 300 is a fully automatic heavy-duty edge banding machine designed for the modern woodworking and furniture manufacturing industry. With a dimension of 3500×750×1500mm and a weight of 1000kg, the machine has a solid structure and runs stably with low vibration.

Technical Specifications

Outline Dimension	3500×750×1500mm	Conveyor Speed	18-24m/min
Machine Weight	1000KG	Minimum Width of Board	50mm
Working Voltage	380V/50Hz	Minimum Length of Board	70mm
Total Power	7KW	Working Pressure	0.7Mpa
Plate Thickness	10-60mm	Edge Banding Thickness	0.3-3mm

Core Product Features

Intelligent PLC Control System: Equipped with standard PLC microcomputer using time-control principles for stable, safe operation and precise synchronization of all processes.
Precision Glue Application: Temperature-controlled glue tank with suction structure applies glue evenly for strong, long-lasting adhesion.
High-Precision Trimming & Cutting: Single-guide rail end cutters and high-speed oblique fine trimming motor with durable alloy discs achieve smooth, burr-free edges.
Professional Finishing: Dual-head buffing units polish edge sealing sections to a glossy, professional finish.
Compact & Durable Design: Space-saving structure with high-quality components ensures long-term reliability for 24/7 production.
Efficient Dust Extraction: Integrated dust collection hoses maintain clean working environment and protect machine components.

Key Functions

The core control system combines encoder and intelligent PLC technology for unified control of all mechanical actions with sensitive response and precise coordination. The glue tank melts hot melt adhesive evenly and applies glue through a spiral structure for uniform glue distribution and firm bonding. The end cutting system uses single guide rail structure for accurate panel end cuts, while the fine trimming unit achieves smooth and flat trimming effects. The scraping device removes ripples and lines, and the buffing mechanism polishes edge surfaces to achieve smooth, delicate finishes.

Application Scope

The BHM START 300 is perfectly suited for panel furniture production, custom home furniture, kitchen cabinet manufacturing, wardrobe processing, wooden door production, office furniture production and indoor decoration panel processing. It processes various wood-based panels including MDF, particle board, solid wood board and plywood, producing cabinet doors, side panels, shelves, wall panels, display racks and other components. Suitable for both large-scale assembly line production and personalized custom processing.

Competitive Advantages

This edge banding machine offers significant advantages in performance, quality and efficiency. The intelligent control system reduces dependence on skilled workers and lowers error rates. The encoder control system ensures high synchronization, fast response and minimal mechanical failures. The unique spiral glue application design ensures uniform distribution and strong adhesion. The combination of high-speed trimming, scraping and buffing creates perfect edge effects with smooth surfaces and beautiful appearance. Built with well-known imported and domestic brand accessories for enhanced stability and service life.

Logistics & After-Sales Support

Packaging: Securely packed in reinforced wooden crate with shock-absorbing foam
Shipping Options: Sea freight, air freight, and door-to-door delivery including customs clearance and basic installation
Warranty & Support: 12-month warranty on all parts, remote technical assistance, and optional on-site training
