BHM388Y Automatic Edge Banding Machine Suitable for Woodworking Shops Specializing in MDF PVC and Wood Panel Edge Banding Tasks

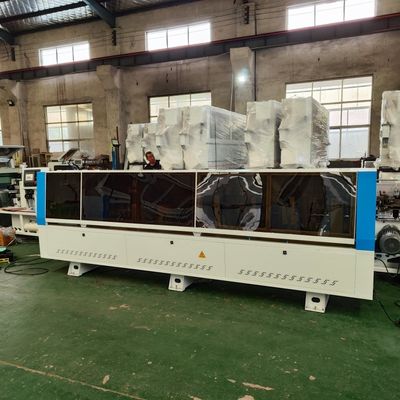

 BHM388Y MDF PVC Wood Automatic Edge Banding Machine

Specification

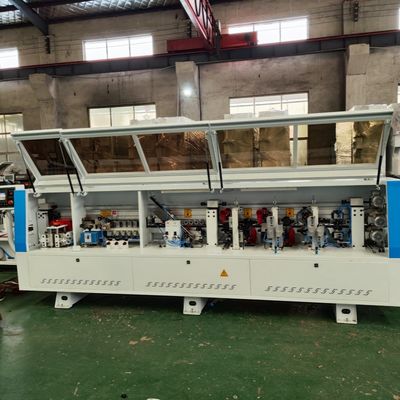

Functions and Performance Overview

The BHM388Y features a sophisticated workflow that ensures superior adhesion and a flawless finish on every workpiece:

1. 1. Pre-Milling System
   Equipped with dual high-speed milling cutters, this station prepares the substrate edge by removing burrs, grain marks, or uneven cuts. This ensures a perfectly flat surface for optimal contact with the edge banding material.
2. 2. Precision Glue Application
   The machine utilizes a spiral glue application structure within the heated pot. This mechanism ensures that hot melt adhesive is distributed evenly across the entire edge, guaranteeing strong, durable bonding that resists peeling.
3. 3. Multi-Stage Trimming & Scraping
   • Rough Trimming: Reduces the load on subsequent tools and prevents chipping, especially on brittle materials like veneer.
   • Fine Trimming: Utilizes high-speed oblique cutting motors and alloy discs to create a smooth, precise edge profile.
   • Scraping Units: Dual scraping stations eliminate ripple marks caused by cutting vibrations. The flat scraping process provides a secondary refinement, leaving the edge surface exceptionally smooth.

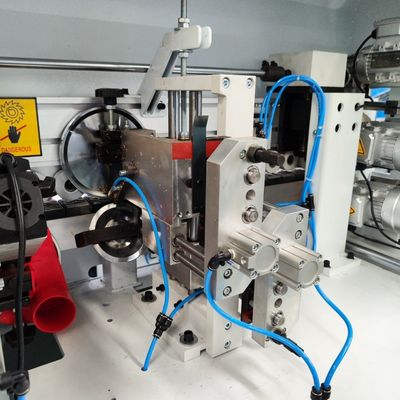

4. 4. End Cutting & Polishing
   A stable single-guide rail end cutter trims the panel ends flush for clean corners. The process concludes with a high-speed buffing station that polishes the sealed edge, enhancing the luster and tactile quality of the finished product.

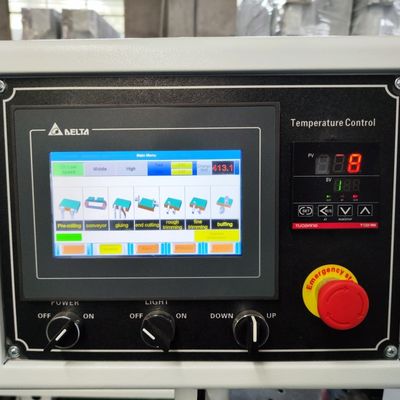

Intelligent Control & Stability

Why Choose the BHM388Y?

• Versatile Material Handling: Capable of processing edge banding tapes from 0.3mm to 3mm in thickness.
• High Efficiency: With a conveyor speed of up to 24 meters per minute, it significantly boosts production throughput.
• Professional Finish: The combination of pre-milling, dual scraping, and fine polishing ensures a finish quality suitable for premium furniture lines.
