| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

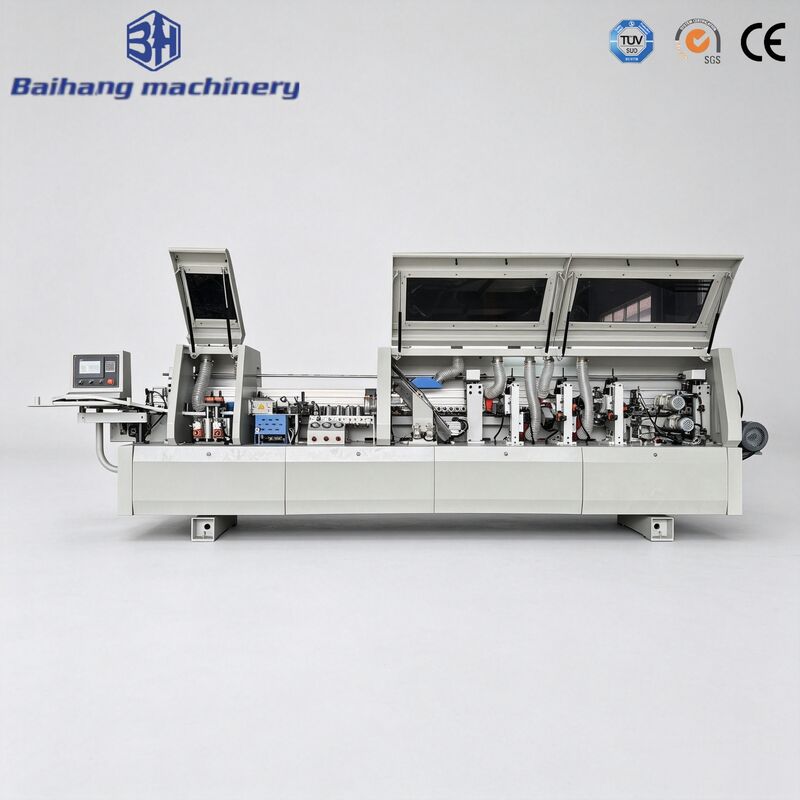

The BHM388Y Edge Banding Machine is a high-performance, fully automatic straight-line edge bander designed for high-volume, precision edge finishing in panel furniture manufacturing. With overall dimensions of 5000×750×1500mm and a machine weight of 1500kg, it offers a sturdy and stable construction for continuous industrial operation. The conveyor speed is adjustable between 18–24m/min, and the machine processes panels with thicknesses ranging from 10mm to 60mm and edge banding thicknesses from 0.3mm to 3mm. Minimum workpiece dimensions are 50mm in width and 70mm in length. Powered by a 13.5kW motor system and requiring 0.7MPa air pressure, the BHM388Y features a PLC microcomputer control system based on time control principles, along with an encoder for precise action control. The machine integrates a complete range of functions including pre-milling, glue coating, end cutting, rough trimming, fine trimming, scraping, flat scraping, and buffing, delivering superior edge finishing quality.
| Overall Dimensions | 5000 × 750 × 1500 mm |
| Machine Weight | 1500 kg |
| Working Voltage | 380V / 50Hz |
| Total Power | 13.5 kW |
| Conveyor Speed | 18 ~ 24 m/min |
| Minimum Board Size | 50 mm (width) × 70 mm (length) |
Encoder Precision Control: The encoder controls all machine actions with sensitive response and low failure rate, significantly improving operational reliability.
Intelligent PLC Control: The standard PLC microcomputer system operates on time control principles, greatly enhancing machine stability and operator safety.
Pre-Milling Function: Equipped with double milling cutters to remove grain marks, burrs, or non-perpendicular cuts from panel edges, creating a smoother bonding surface and significantly improving the edge sealing result.
Efficient Glue Application: The glue tank heating device uses a spiral structure to evenly apply hot melt adhesive across the panel edge, ensuring strong and durable bonding.
Precision End Cutting: The single-rail end cutting unit accurately trims excess edge banding from both panel ends, delivering a clean, flush finish.
Rough Trimming + Fine Trimming Dual System:
Rough Trimming: Prevents veneer breakage during edge sealing. Also serves as the first leveling process for PVC and acrylic edge banding, reducing cutting force and wear on precision trimming tools.
Fine Trimming: Features a high-speed oblique cutting motor with an adjustable alloy disc, providing smooth, even, and precise trimming results.
Scraping + Flat Scraping Dual Finishing:
Scraping: Eliminates ripple marks caused by non-linear cutting during the trimming process, making the upper and lower edges smoother and neater.
Flat Scraping: Performs a second light scraping and trimming after the initial scraping for even better edge finishing results.
Buffing: The polishing unit gives the sealed edge a smooth, high-quality surface finish, enhancing both appearance and feel.
High-End Panel Furniture Manufacturing: Ideal for precision edge banding with PVC, ABS, acrylic, wood veneer, and other materials on wardrobes, kitchen cabinets, bookcases, TV stands, and more.
Office Furniture Production: Suitable for edge finishing on desks, conference tables, filing cabinets, screens, and other office furniture requiring durability and aesthetics.
Decorative Panel Processing: Applicable for straight-line edge banding on MDF, particleboard, plywood, blockboard, and other engineered wood panels.
Wood Veneer Edge Banding Specialty: The rough trimming function is particularly suitable for solid wood veneer edge banding, effectively preventing edge chipping and ensuring finished product quality.
Interior Decoration & Door Manufacturing: Used for fine edge finishing on interior doors, decorative panels, wall cladding, and other architectural woodworking applications.

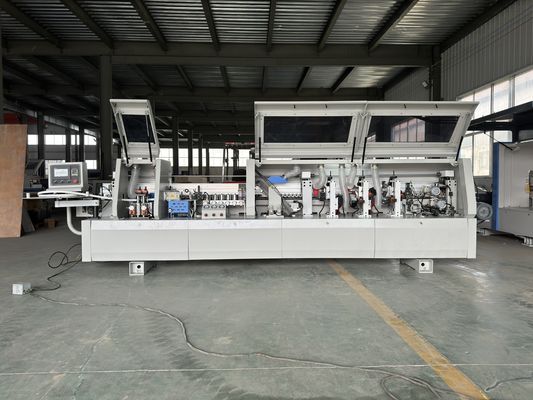

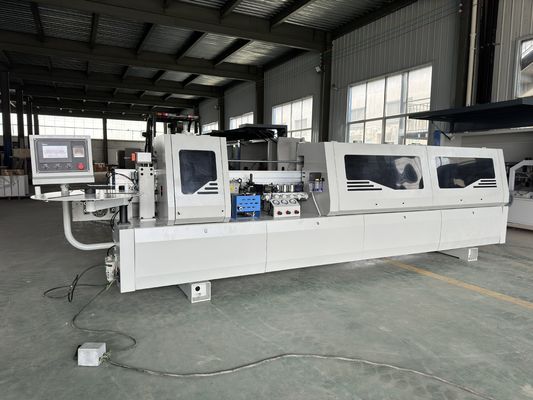

Image details
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
