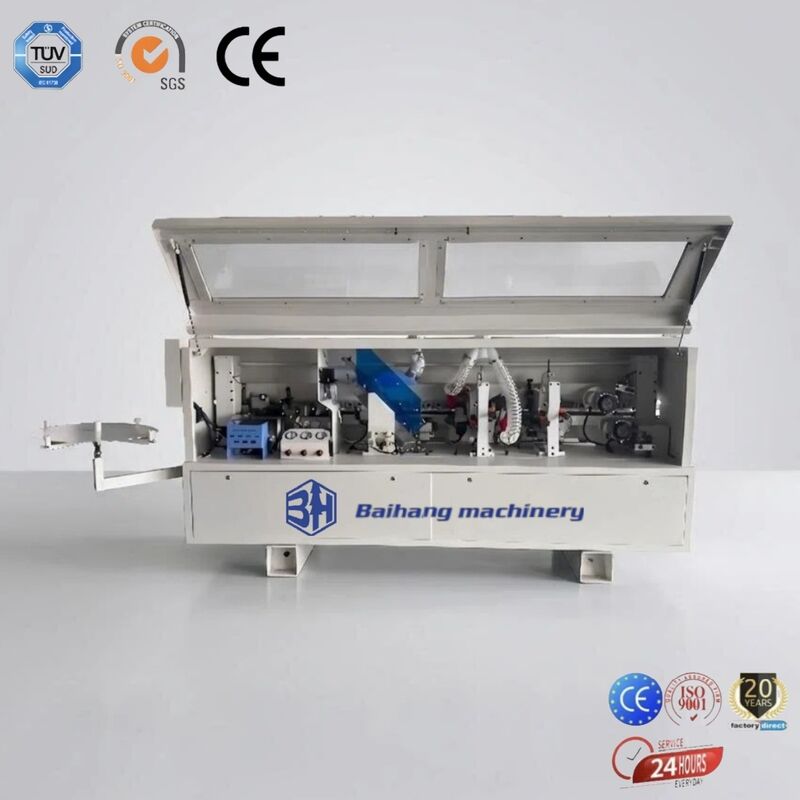

5 Functions Full Automatic Woodworking Edge Banding Machine

Product Advantages

• Intelligent CNC Control System, Stable Operation & Low Failure Rate

  The standard PLC cooperates with high-precision encoder to automatically control conveying, gluing, cutting, trimming and buffing via unified time sequence. Sensitive signal feedback avoids board deviation and missing procedures. Its long-term continuous operation has far fewer breakdowns than semi-automatic models, reducing production loss caused by shutdown maintenance.
• Spiral Constant-Temperature Glue Pot for Firm & Even Adhesion

  The hot melt glue tank adopts spiral coating structure with built-in preheating lighting for even heating of hot melt adhesive. Glue is coated uniformly without glue break or accumulation, tightly bonding edge tape and boards to prevent degumming under high temperature and humid overseas working conditions.
• Integrated 5-in-1 Processing for Premium Finished Appearance

  Four fine processing units are integrated: single-guide rail end cutting trims redundant edge tape on both board ends; high-speed alloy inclined cutter shapes the upper and lower edge profiles; scraping unit removes ripple marks left by trimming; final buffing delivers smooth edge surface without burrs or uneven glue lines, meeting mid-to-high end furniture appearance standards.
• Wide Compatibility for Various Boards & Strong Versatility

  It fits boards of 10–60mm and edge tapes of 0.3–3mm, covering thin panels, standard cabinet boards and thick door panels. A single machine handles all edge banding work for wardrobes, cabinets and wooden doors, saving extra equipment investment for furniture manufacturers.

Product Applications

• Whole-house Custom Panel Furniture Factories: Straight edge banding for wardrobes, cabinets, TV cabinets and tatami boards, supporting mass production of civil furniture for domestic and overseas small & medium custom factories.
• Wooden Door & Interior Door Manufacturers: Edge treatment for solid composite doors, ecological doors and paint-free doors. Fine trimming and buffing ensure beautiful edges for bulk home decoration projects.
• Office Furniture Manufacturers: Processing desks, filing cabinets and partition boards. Stable continuous operation matches non-stop office furniture assembly lines.
• Deep Processing Workshops for Building Panels: Semi-finished edge sealing for MDF, particle board, multi-layer board and ecological board. Factories can undertake board processing outsourcing with low equipment investment and fast return.

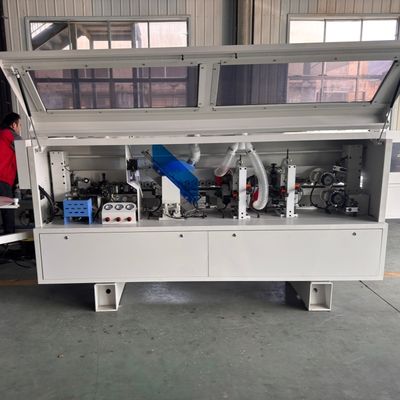

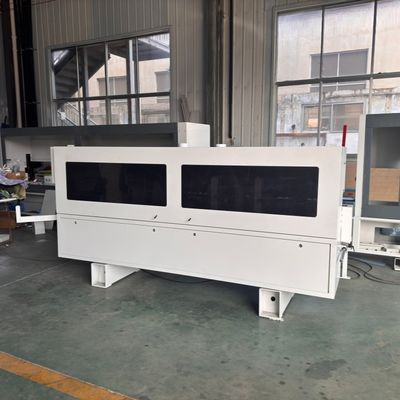

Detailed images

Intelligent controlStandard

PLC microcomputer control,using the principle of time control,greatly increases stability and safety.

Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to

evenly apply glue,ensuring a strong adhesive force.

End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.

Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures

smooth and even trimming.

Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the

upper and lower partsof the edge material smoother and neater.

Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
