Automatic Edge Banding Machine Providing High Precision Edge Application and Finishing Suitable for Furniture Industry

Automatic Edge Banding Machine Providing High Precision Edge Application and Finishing Suitable for Furniture Industry

Brand Name:	BH
Model Number:	BHM 300
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Total Power:

7KW

Plate Thickness:

10-60mm

Speed:

18~24m/min

Dimension:

3500*750*1500mm

Voltage:

380V/50Hz

Edge Banding Thickness:

0.3~3mm

Packaging Details:

3600*850*1600mm

Highlight:

Automatic edge banding machine for furniture

High precision edge banding machine

Edge application machine with finishing

Product Description

BHM300 Edge Banding Machine

Professional Edge Banding Solution

Designed for small to mid-sized furniture workshops and custom woodworking businesses, the BHM300 Edge Banding Machine delivers professional-grade edge finishing at an accessible price point, combining reliable performance with user-friendly operation.

Built for continuous daily use, this machine features a compact 3000*750*1500mm footprint, ideal for workshops with limited space, while supporting a minimum board length of 70mm to handle small to medium-sized wood panels. It integrates three core functional modules—end cutting, fine trimming, and buffing—covering all essential steps for seamless edge sealing in one fluid workflow.

Technical Specifications

Outline dimension	35007501500mm	Conveyor speed	18~24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	7KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3~3mm

Comprehensive Finishing Capabilities

At its core, the BHM300 is powered by an intelligent PLC microcomputer control system paired with a high-precision encoder, ensuring all machine actions are precisely synchronized with fast response and low failure rates. The integrated hot melt glue system uses a suction structure to evenly apply adhesive, creating strong, consistent adhesion between edge banding and wood panels, eliminating common issues like uneven glue application or weak bonding.

For finishing quality, the machine is fitted with a high-speed oblique cutting motor for adjustable fine trimming, with alloy cutting discs that deliver smooth, even trimming results. The dedicated buffing unit then polishes the sealed edge to a premium, smooth finish, removing micro-ripples and wave marks left by cutting, giving your furniture a high-end, hand-finished look without extra manual labor.

Constructed with a heavy-duty frame and premium components, the BHM300 offers excellent stability and durability even during long continuous shifts. It supports 10-60mm thick panels and 0.3-3mm thick edge banding, compatible with MDF, plywood, solid wood and other common wood materials, making it a versatile addition to any woodworking workshop.

All units undergo strict pre-delivery testing, and we provide comprehensive after-sales support including English manuals, instructional videos, and 24/7 online technical guidance.

For Buyers

Our woodworking machinery offers affordability, customization, and multiple model options to perfectly meet your requirements, whether for small or large operations.

For Suppliers

Our innovative woodworking machinery provides excellent profit margins with 1-3 years of after-sales service. We offer pre-delivery testing, air shipping for critical parts, and free promotional support in your market.

Frequently Asked Questions

Q1: Can customized services be supported?

Yes, we can customize color, size, and logo to your specifications.

Q2: Where is your factory located?

Our manufacturing facility is in Qingdao City, Shandong Province, China.

Q3: Can you make the machine according to my design or prototype?

Yes, our professional designers will create the most suitable production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

We provide instructional videos and English manuals, plus free professional guidance until you achieve proficiency.

Q5: What's your MOQ and delivery terms?

Minimum order quantity is 1 set. We ship directly to your designated port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

Our sales team is available 24/7, with optional overseas installation service.

Q7: What if my machine needs repair?

We provide free online training. For warranty-covered major issues, we will repair the machine.

Shipping Information

Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.

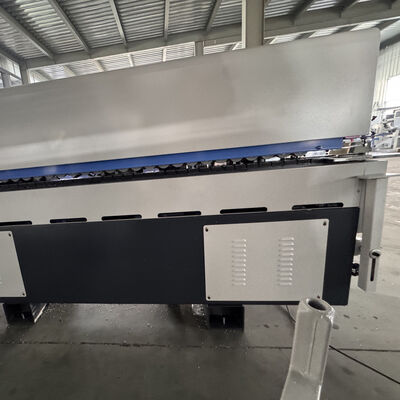

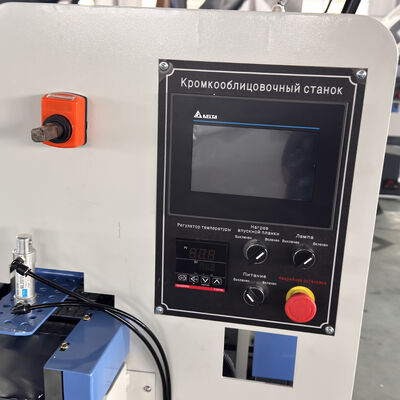

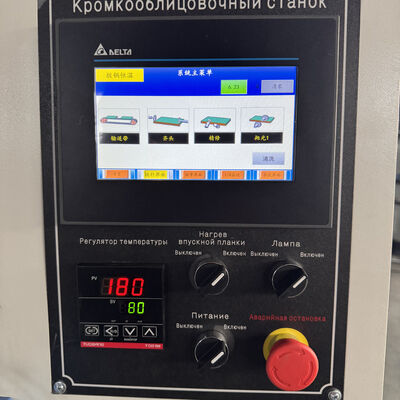

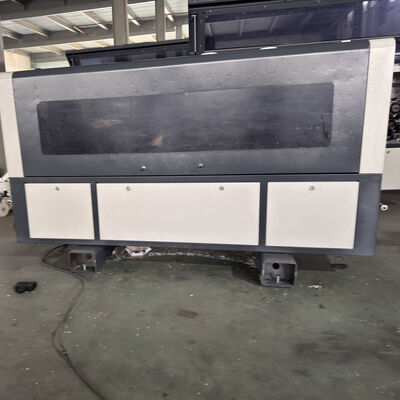

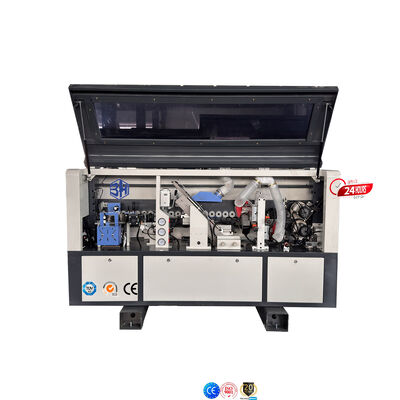

Product Images
