Automatic Edge Banding Machine with 18~24m/min Speed, 0.3~3mm Edge Banding Thickness, and 7KW Power for Woodworking

Automatic Edge Banding Machine with 18~24m/min Speed, 0.3~3mm Edge Banding Thickness, and 7KW Power for Woodworking

Brand Name:	BH
Model Number:	BHM 300
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Total Power:

7KW

Plate Thickness:

10-60mm

Speed:

18~24m/min

Dimension:

3500*750*1500mm

Voltage:

380V/50Hz

Edge Banding Thickness:

0.3~3mm

Packaging Details:

3600*850*1600mm

Highlight:

Automatic edge banding machine for woodworking

Edge banding machine with 7KW power

High-speed edge banding machine 18~24m/min

Product Description

Automatic Edge Banding Machine - High Precision Edge Application and Finishing

BHM300 Edge Banding Machine

Professional edge banding solution designed for small to mid-sized furniture workshops and custom woodworking businesses. The BHM300 delivers professional-grade edge finishing at an accessible price point, combining reliable performance with user-friendly operation.

Built for continuous daily use with a compact 3000×750×1500mm footprint, ideal for workshops with limited space. Supports minimum board length of 70mm to handle small to medium-sized wood panels.

Technical Specifications

Specification	Value	Specification	Value
Outline dimension	3500×750×1500mm	Conveyor speed	18-24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	7KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3-3mm

Comprehensive Finishing Capabilities

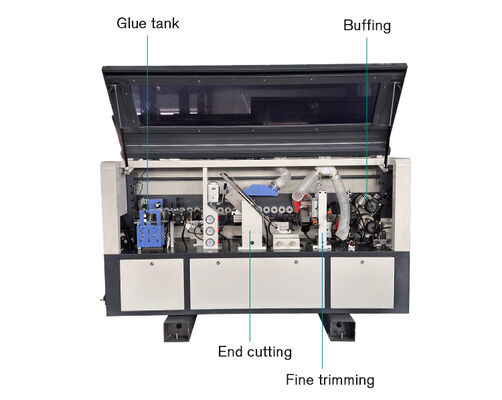

The BHM300 integrates three core functional modules—end cutting, fine trimming, and buffing—covering all essential steps for seamless edge sealing in one fluid workflow.

Intelligent PLC Control: Powered by PLC microcomputer control system with high-precision encoder for precise synchronization and fast response
Hot Melt Glue System: Suction structure ensures even adhesive application for strong, consistent bonding
High-Speed Trimming: Adjustable fine trimming with alloy cutting discs for smooth, even results
Premium Finishing: Dedicated buffing unit polishes edges to remove micro-ripples and wave marks
Material Compatibility: Supports MDF, plywood, solid wood and other common wood materials

Quality Assurance & Support

All units undergo strict pre-delivery testing with comprehensive after-sales support including English manuals, instructional videos, and 24/7 online technical guidance.

Frequently Asked Questions

Can customized services be supported?

Yes, we can customize color, size, and logo to your specifications.

Where is your factory located?

Our manufacturing facility is in Qingdao City, Shandong Province, China.

Can you make the machine according to my design or prototype?

Yes, our professional designers will create the most suitable production plan for your requirements.

Is this machine easy to operate for first-time users?

We provide instructional videos and English manuals, plus free professional guidance until you achieve proficiency.

What's your MOQ and delivery terms?

Minimum order quantity is 1 set. We ship directly to your designated port - please provide your port name for accurate shipping rates.

How is your after-sales service?

Our sales team is available 24/7, with optional overseas installation service.

What if my machine needs repair?

We provide free online training. For warranty-covered major issues, we will repair the machine.

Shipping Information

Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.

Product Images

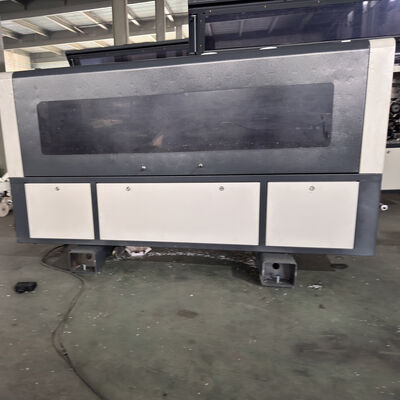

Front View

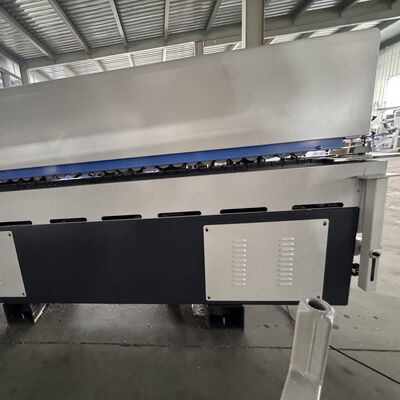

Side View

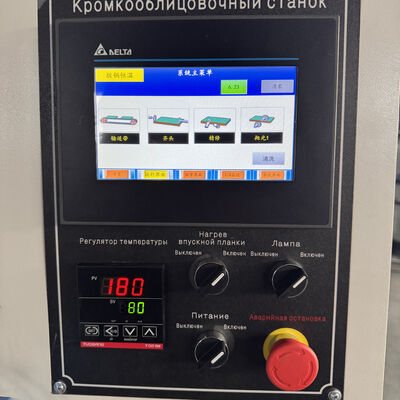

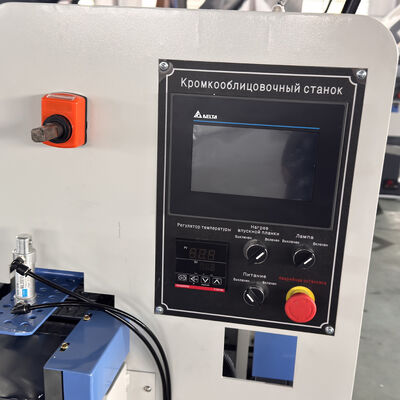

Control Panel

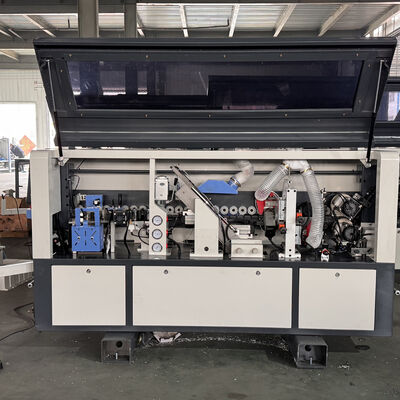

In Operation
