Automatic Edge Banding Machine Offering Stable Performance and Accurate Edge Alignment Suitable for Various Wood Panels

Name: Automatic Edge Banding Machine Offering Stable Performance and Accurate Edge Alignment Suitable for Various Wood Panels
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 388Y
Availability: InStock

Brand Name:	BH
Model Number:	388Y
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Sheet Preheating Power:

0.3 KW

Glue Box Transmission Power:

0.55 KW

Conveyor Belt Motor Power:

2.2 KW

Motor Power:

0.35 KW X 2 (18,000 Rpm)

Fine Trimming Motor Power:

0.75 KW X 2 (18,000 Rpm, 300 Hz)

Packaging Details:

5000 x 750 x 1500 mm

Highlight:

Automatic edge banding machine for wood panels

Edge banding machine with stable performance

Accurate edge alignment edge banding machine

Product Description

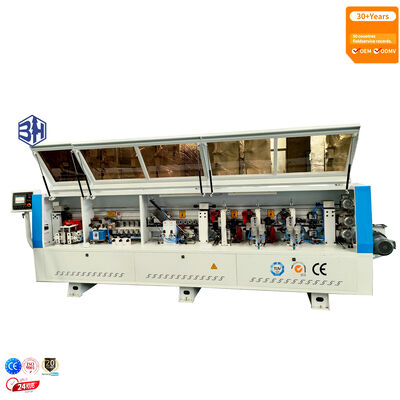

BHM388Y Automatic Edge Banding Machine

The BHM388Y industrial edge bander is a multi-station integrated woodworking machine built for medium-to-large furniture factories. It integrates 8 core working stations: pre-milling, spiral glue coating, end cutting, rough trimming, fine trimming, contour tracking, flat scraping and buffing, finishing, and complete edge sealing in one single pass without secondary manual touch-ups.

With a heavy-duty solid frame of 5000×750×1500mm and total weight up to 1500kg, the machine runs stably under long-hour continuous production. It supports 18–24m/min adjustable conveyor speed, covers panels 10–60mm thick and edge tapes 0.3–3mm thick, and handles mini workpieces with minimum 70mm length and 50mm width, compatible with MDF, plywood, solid wood, PVC and acrylic edge strips. Rated total power reaches 13.5kW with standard 380V/50Hz power supply and 0.7MPa stable working pressure.

Technical Specifications

No	Item	Data
1	Dimensions	5000 x 750 x 1500 mm
2	Weight	1500 kg
3	Operating Voltage	380V/50Hz
4	Total Power	13.5kW
5	Sheet Thickness	10~60mm
6	Conveyor Speed	18~24m/min
7	Minimum Width	50mm
8	Minimum Length	70mm
9	Operating Air Pressure	0.7MPa
10	Edge Band Thickness	0.3~3mm
11	Glue box heating power	1.5 kW
12	Sheet preheating power	0.3 kW
13	Glue box transmission power	0.55 kW

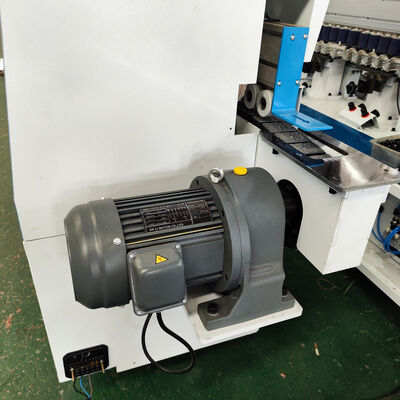

14	Conveyor belt motor power	2.2 kW
15	Trimming motor power	0.55 kW x 2 (12,000 rpm, 200 Hz)
16	Fine trimming motor power	0.75 kW x 2 (18,000 rpm, 300 Hz)
17	Tracking and profiling motor power	0.35 kW x 2 (18,000 rpm)
18	Polishing motor power	0.18 kW x 2

Functions and Performance Overview

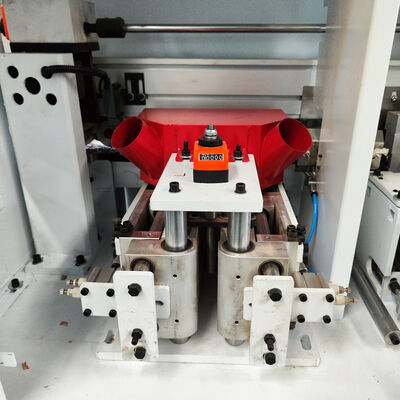

Pre-milling Unit: Double milling cutters remove saw marks and uneven burrs on raw board edges to guarantee tight glue fitting.
Spiral Glue Coating Tank: Internal spiral mixing ensures even heating and uniform glue coverage, avoiding insufficient adhesion or glue overflow.

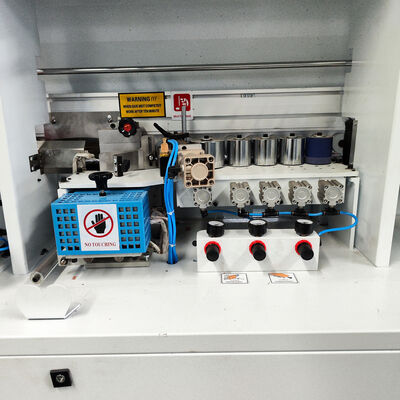

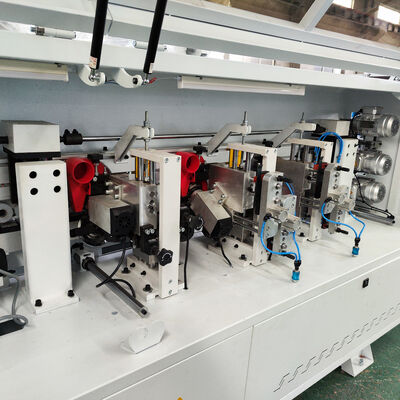

Dual Trimming Units: Independent high-speed oblique motors complete rough and fine trimming sequentially to cut excess edging strips flatly.
Flat Scraping & Buffing: The scraper clears tiny uneven edges after trimming; two polishing wheels wipe off residual glue marks for smooth, flawless edge surfaces.

Reliable Brand Configuration

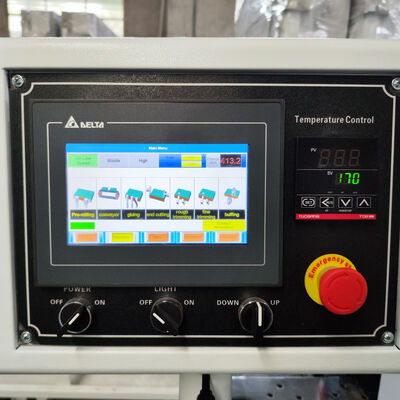

It adopts touch-screen PLC control system plus high-precision encoder to synchronize all mechanical actions and lower failure rates. Key core accessories adopt well-known brands: AirTAC cylinders, HIWIN linear guides, Schneider electrical components, Changchuan feed motors and Autonics proximity switches. The integrated timing control system optimizes running stability and operation safety.

Application & After-Sales

Ideal for mass production of custom cabinets, wardrobes, wooden doors and straight-edge decorative panels. The fully automatic workflow effectively reduces labor input and upgrades finished product texture. We offer a 1-year spare parts warranty, free remote video technical guidance and on-site factory training for overseas purchasers.

Product Images
